Description
Features:

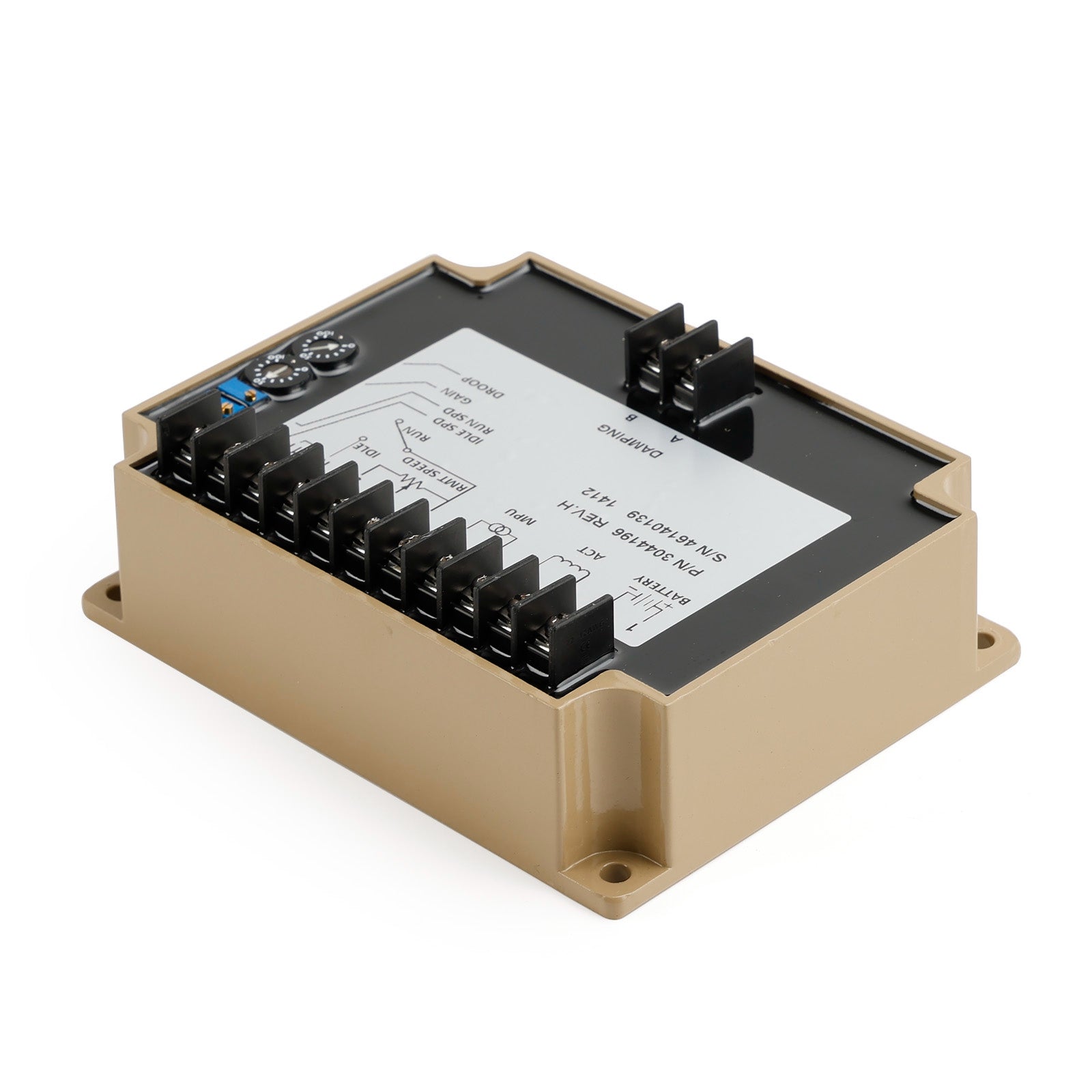

EFC3044196 is a engine speed controller designed by all electronic device for actuator.
It can fast and precise response to transient load changes. It has a wide speed control range.
For these controllers, separate circuits allow adjustments of proportional, integral and derivative values.
These parameters all work together to provide a control that results in fast and stable engine response to load changes while maintaining precise speed regulation of diesel.
SPECIFICATIONS & PERFORMANCE:
Operating Voltage: 12 or 24 volts 卤20%
Steady State Speed Band: 卤0.25%
Ambient Operating Temperature: -40鈩?to +85鈩?br>Temperature Stability: Better than 卤0.5% over temperatures of -40鈩?to +125鈩?br>Mechanical Vibration: Withstands the following vibration without failure or degraded ,
performance: 0.06 inch double amplitude at 5 to 18 Hz; 1 G at 18 to 30 Hz

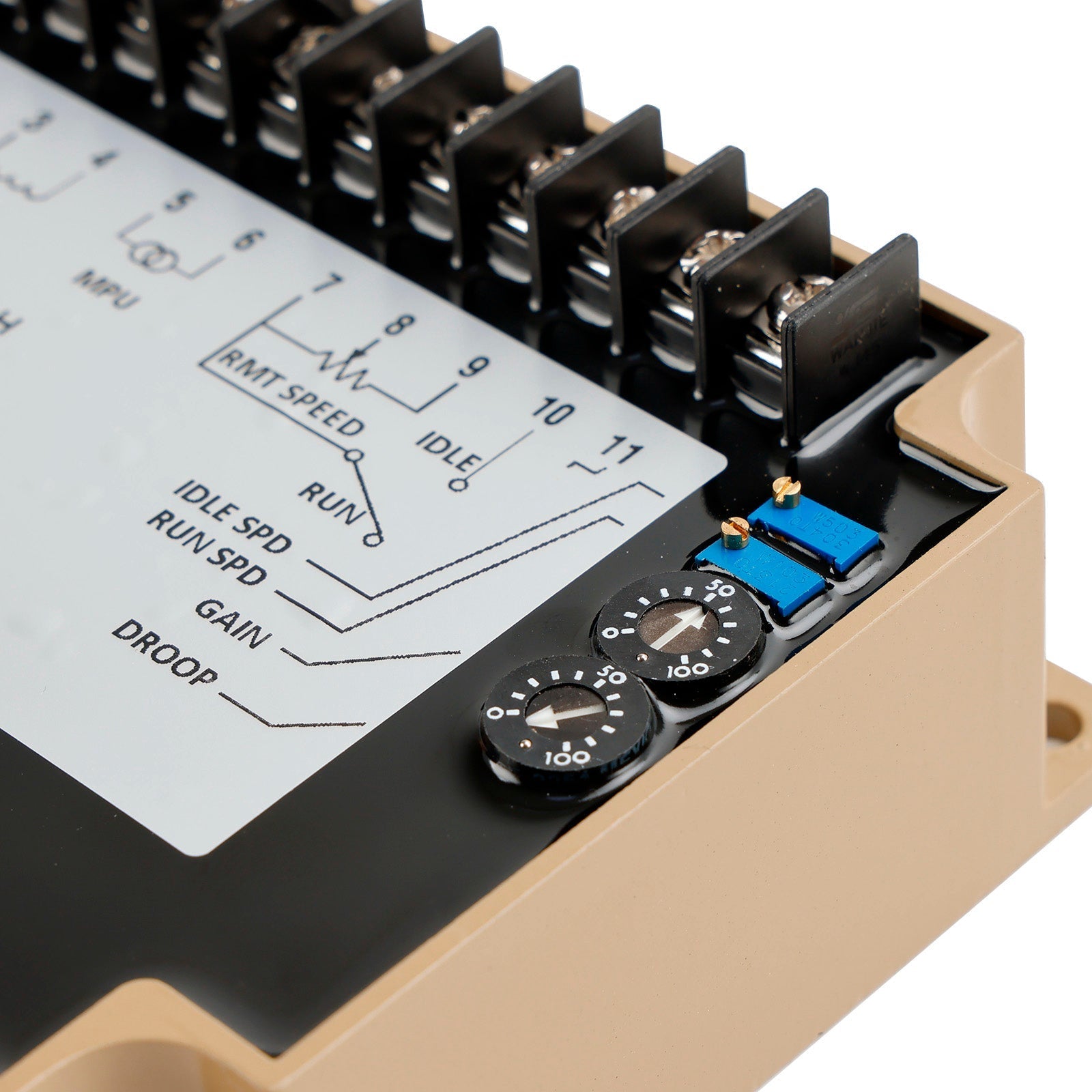

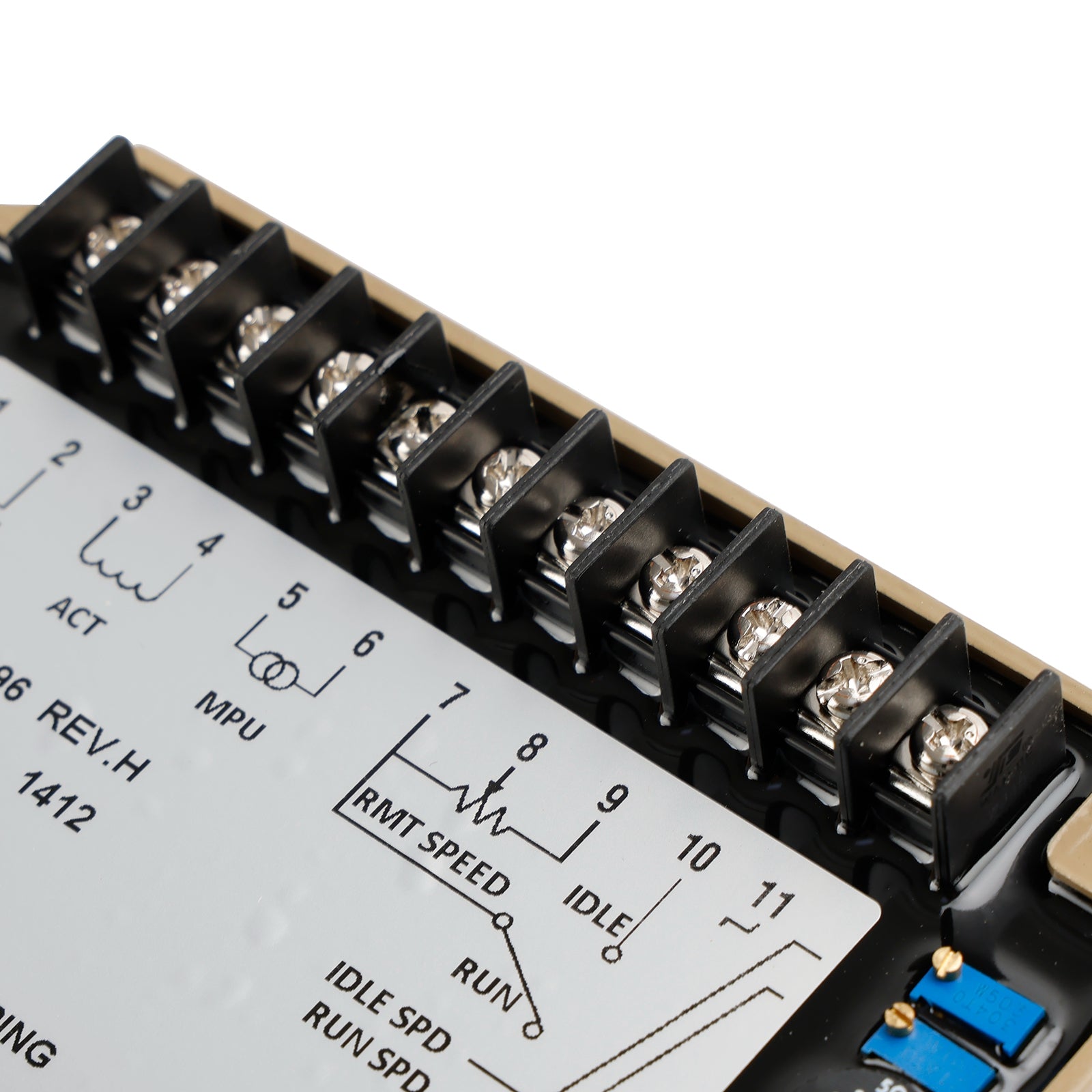

Connections: Terminal strip

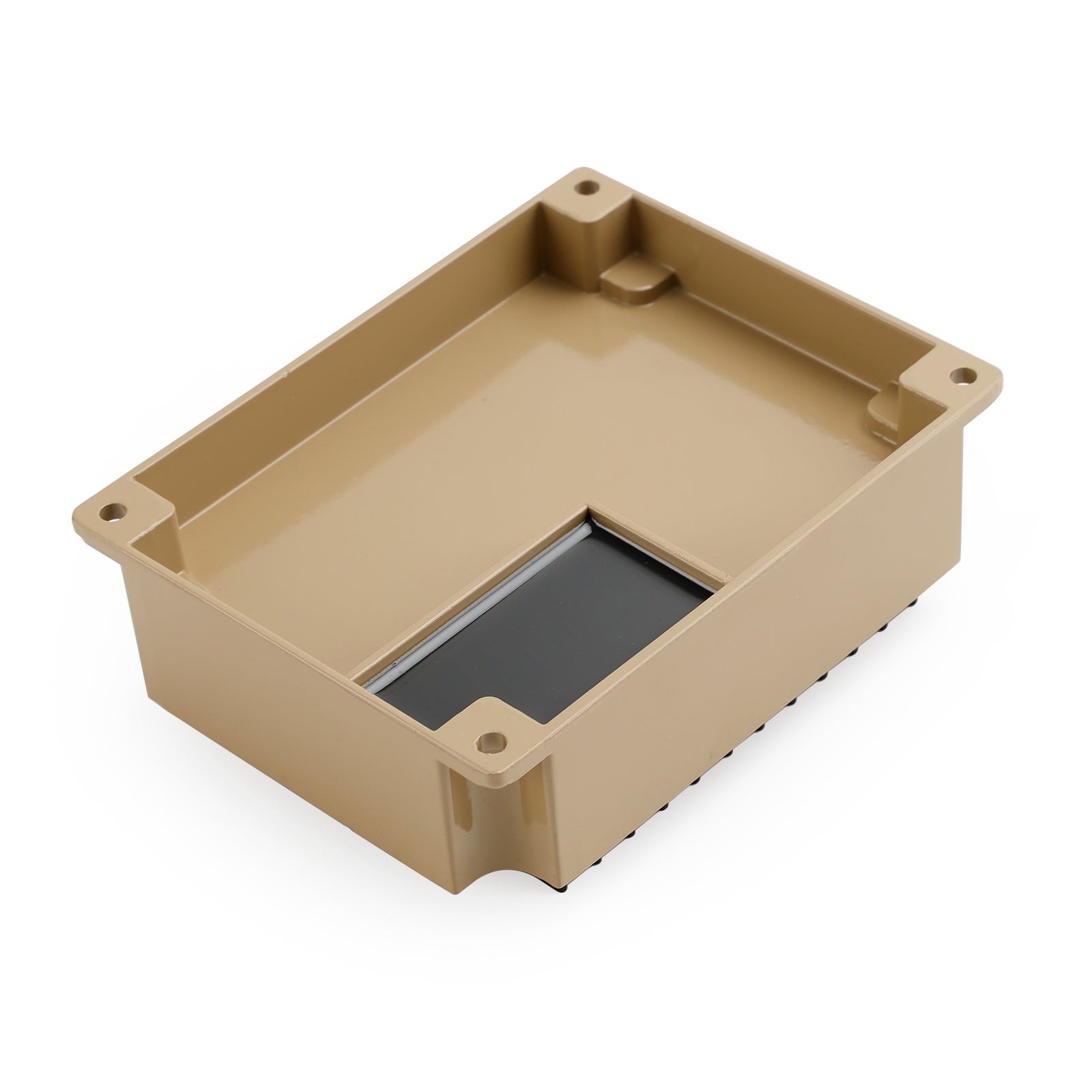

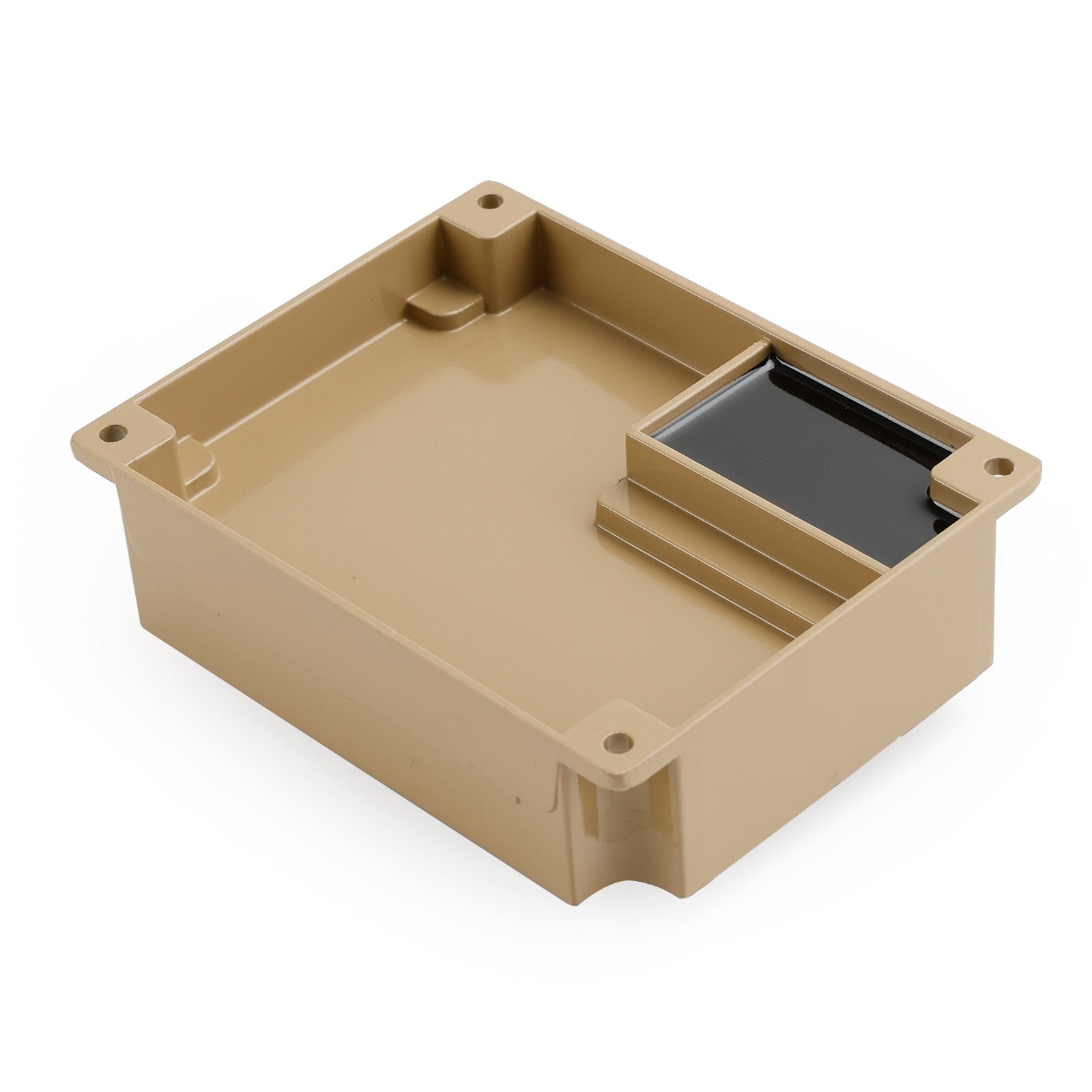

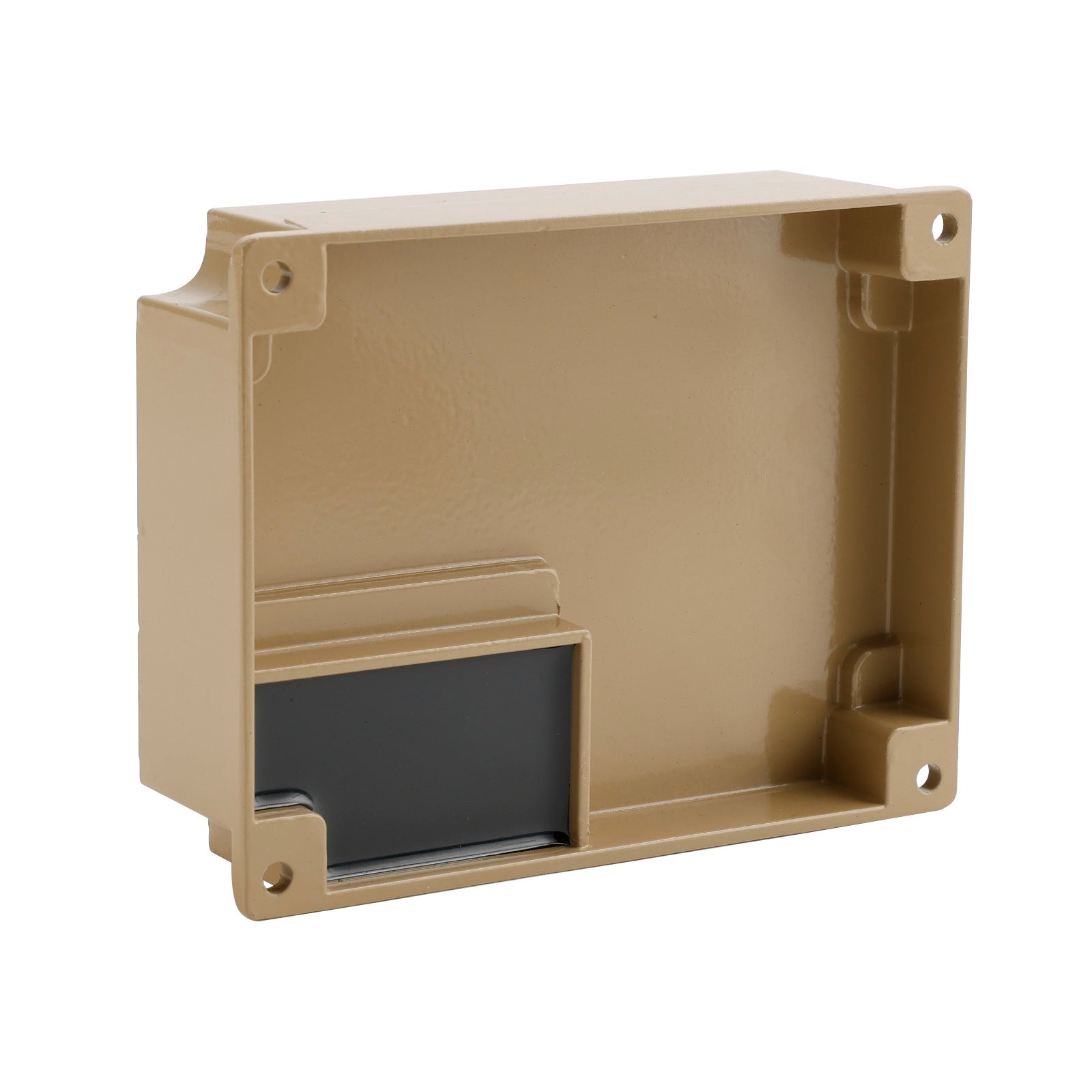

Enclosure: Die cast aluminum
Weight: 635 grams (1.4 lbs.) Magnetic Pickup Frequency Range: 2500 - 5000 Hz
Output Signal: PWM current to 5A at max.
Actuator Compatibility: EFC3408324, DYNA2000, DYNA2500
Fitment:
For Cummins
Package included:
1 PC
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
