Description

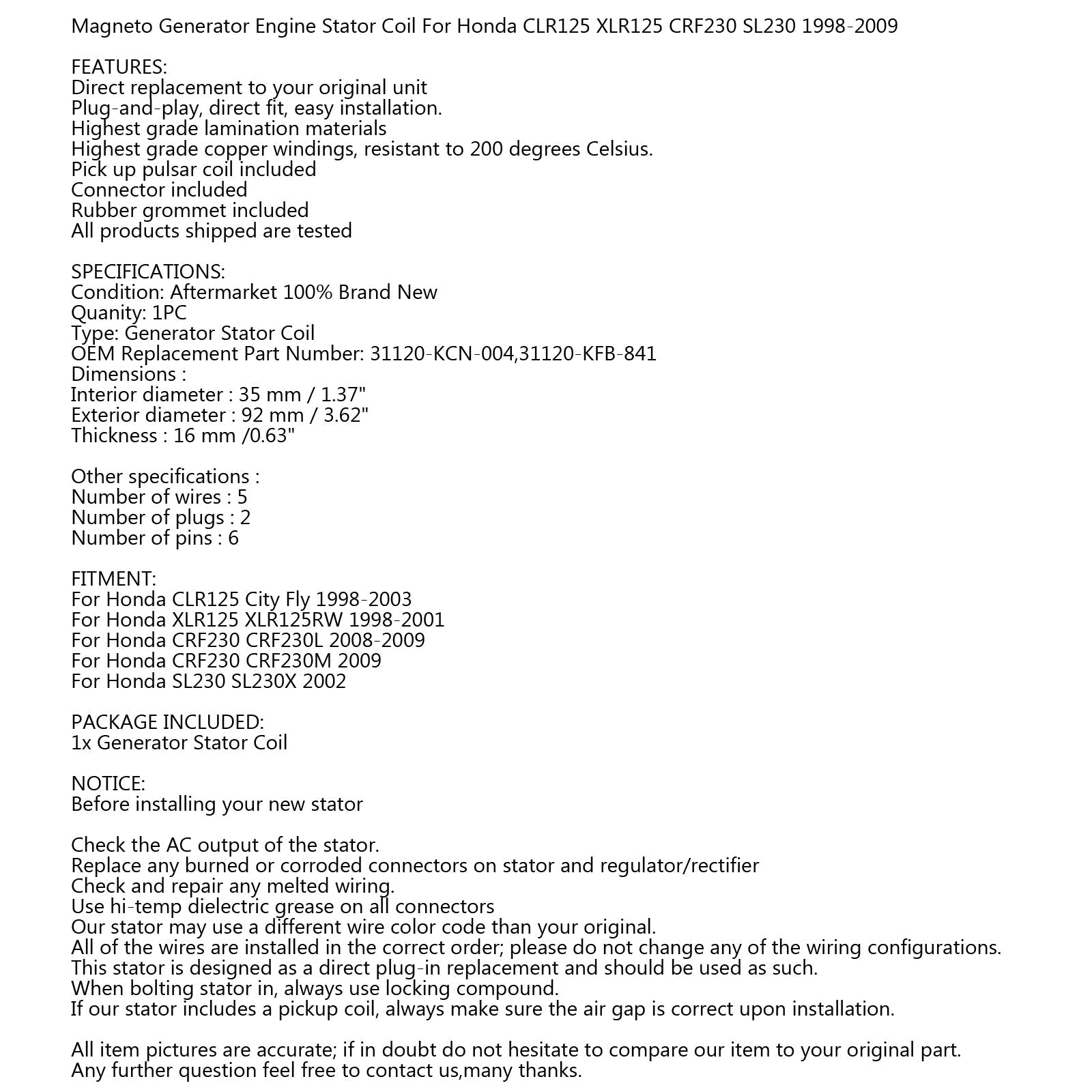

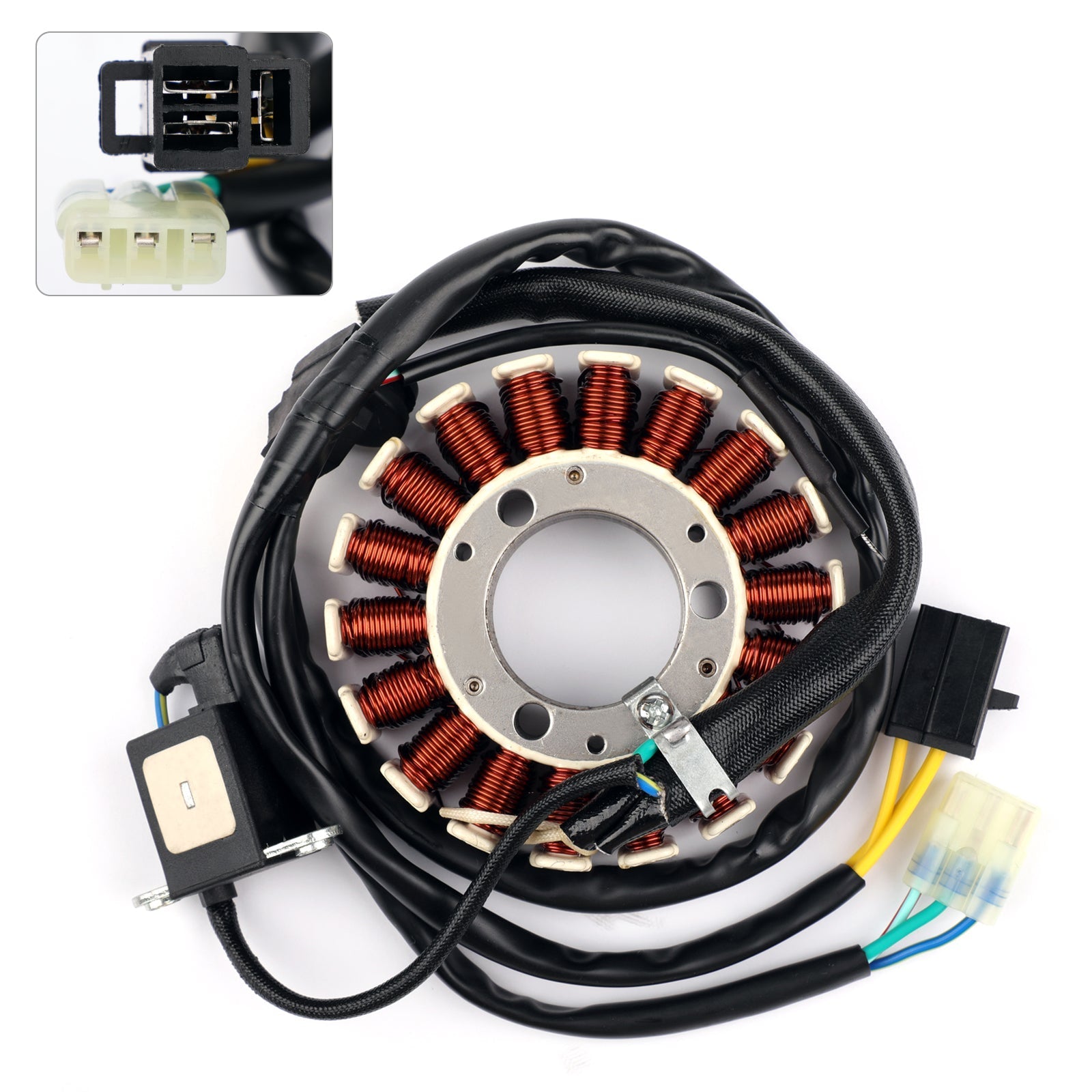

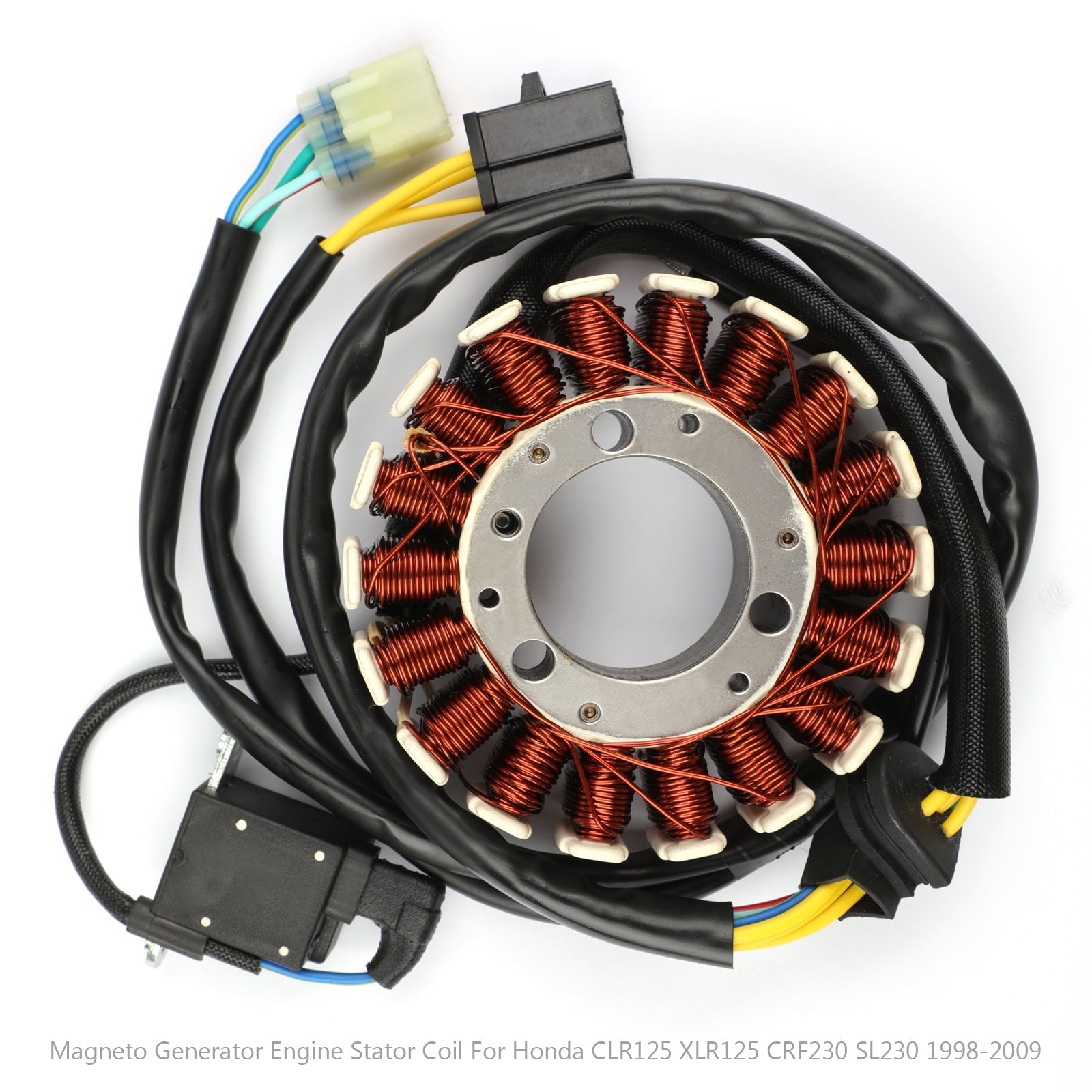

Magneto Generator Engine Stator Coil For Honda CLR125 XLR125 CRF230 SL230 1998-2009
FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included
Connector included
All products shipped are tested
SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
OEM Replacement Part Number: 31120-KCN-004,31120-KFB-841

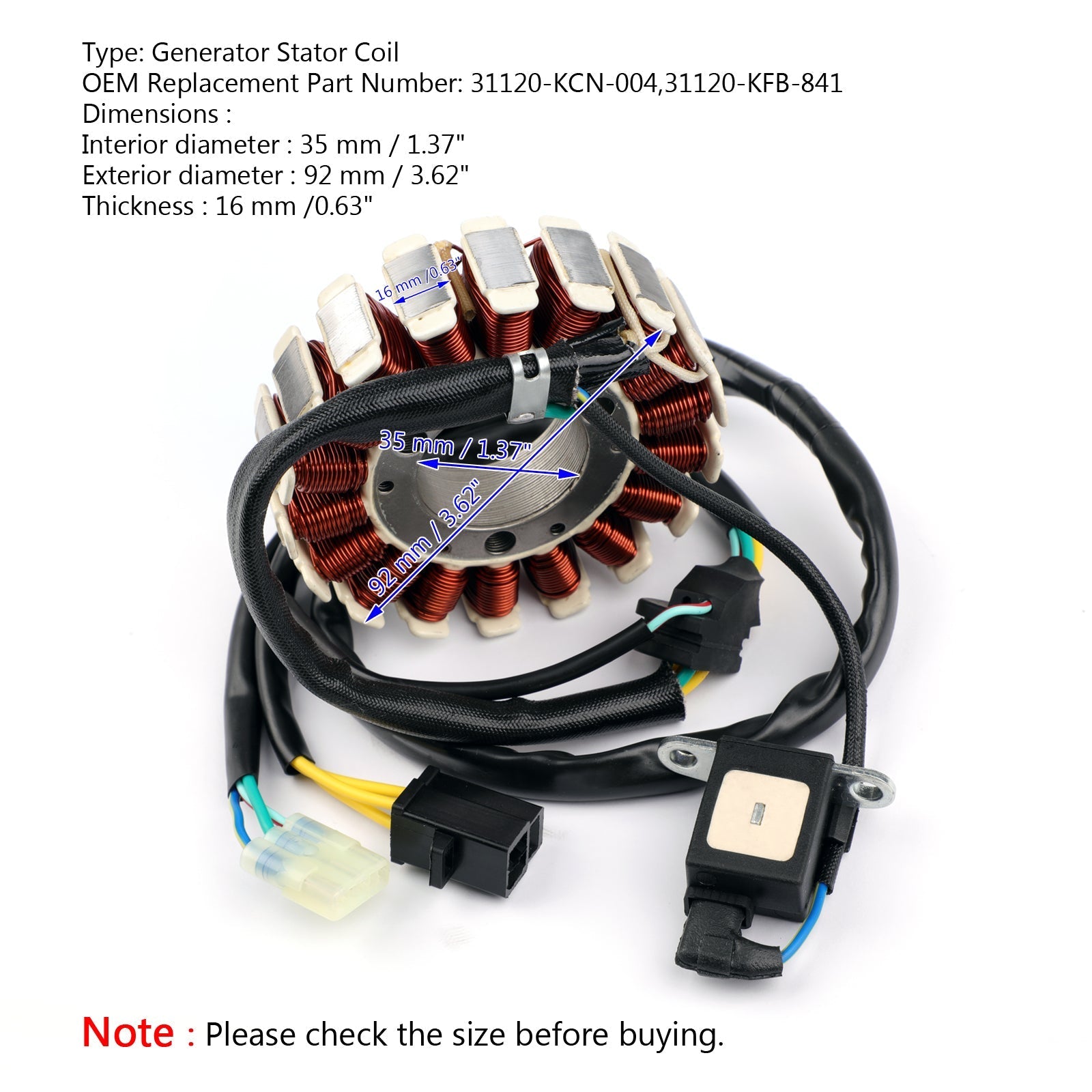

Dimensions :
Interior diameter : 35 mm / 1.37"
Exterior diameter : 92 mm / 3.62"
Thickness : 16 mm /0.63"
Other specifications :
Number of wires : 5

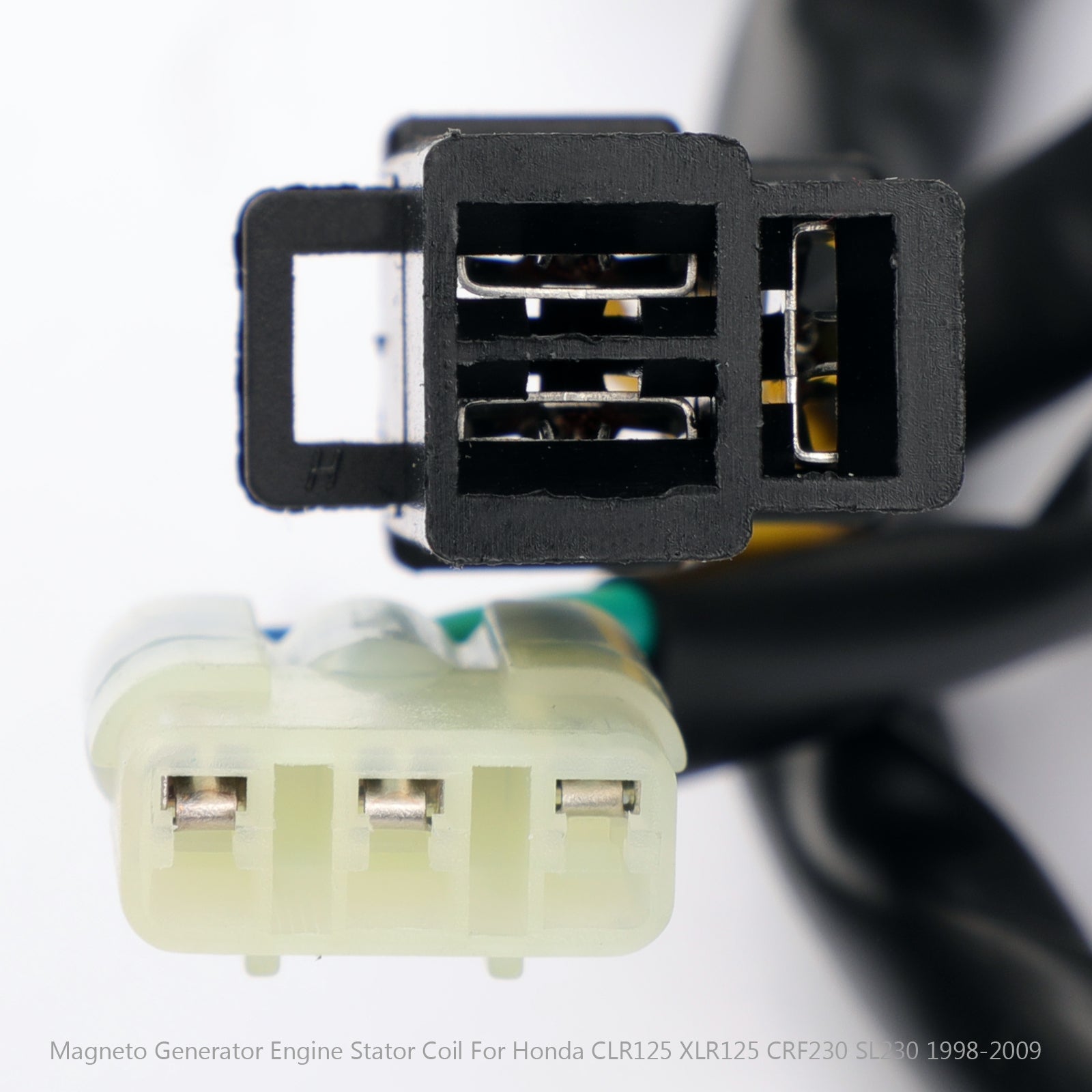

Number of plugs : 2
Number of pins : 6
FITMENT:
For Honda CLR125 City Fly 1998-2003
For Honda XLR125 XLR125RW 1998-2001
For Honda CRF230 CRF230L 2008-2009
For Honda CRF230 CRF230M 2009
For Honda SL230 SL230X 2002
PACKAGE INCLUDED:
1x Generator Stator Coil
NOTICE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
