Description
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.

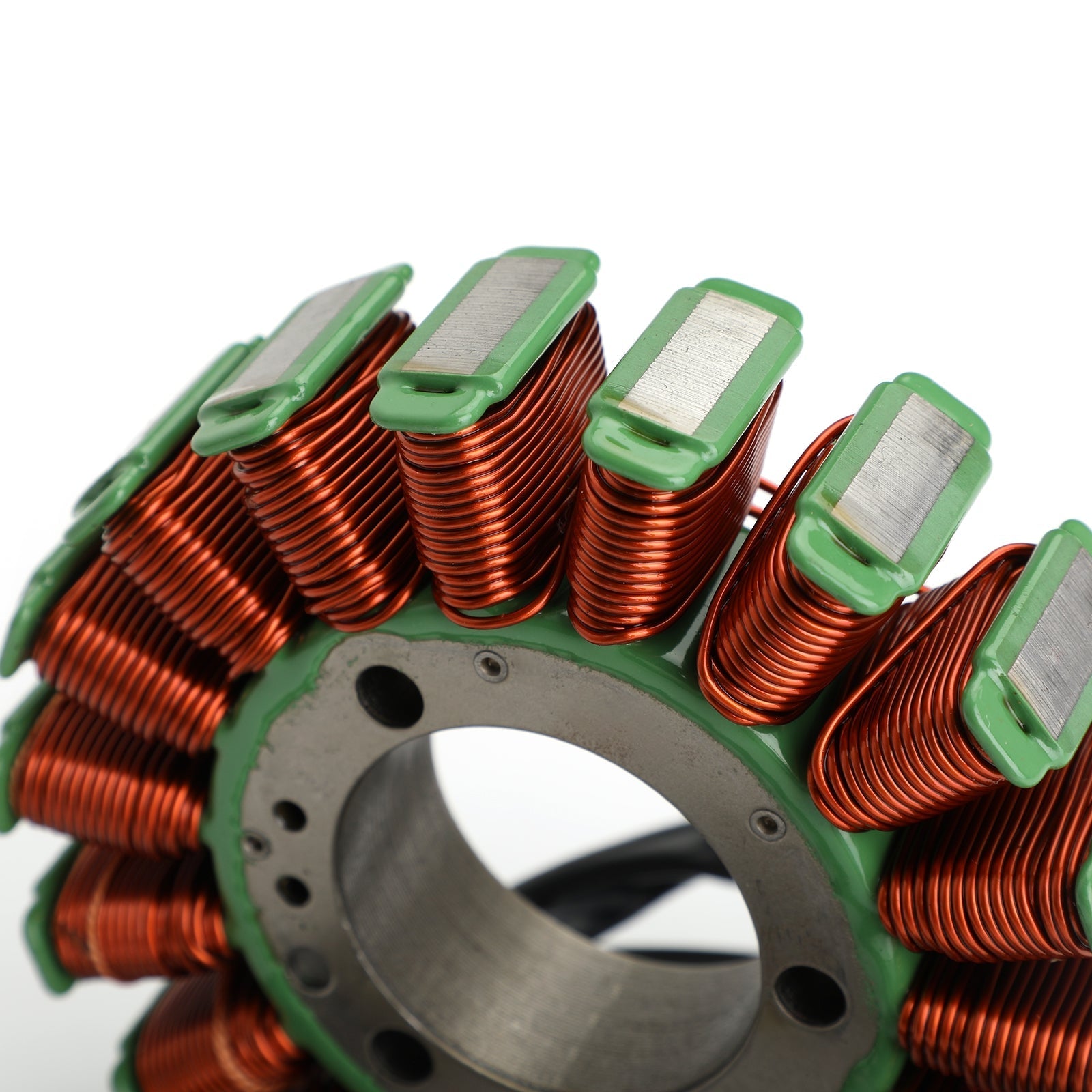

Highest grade copper windings, resistant to 200 degrees Celsius.

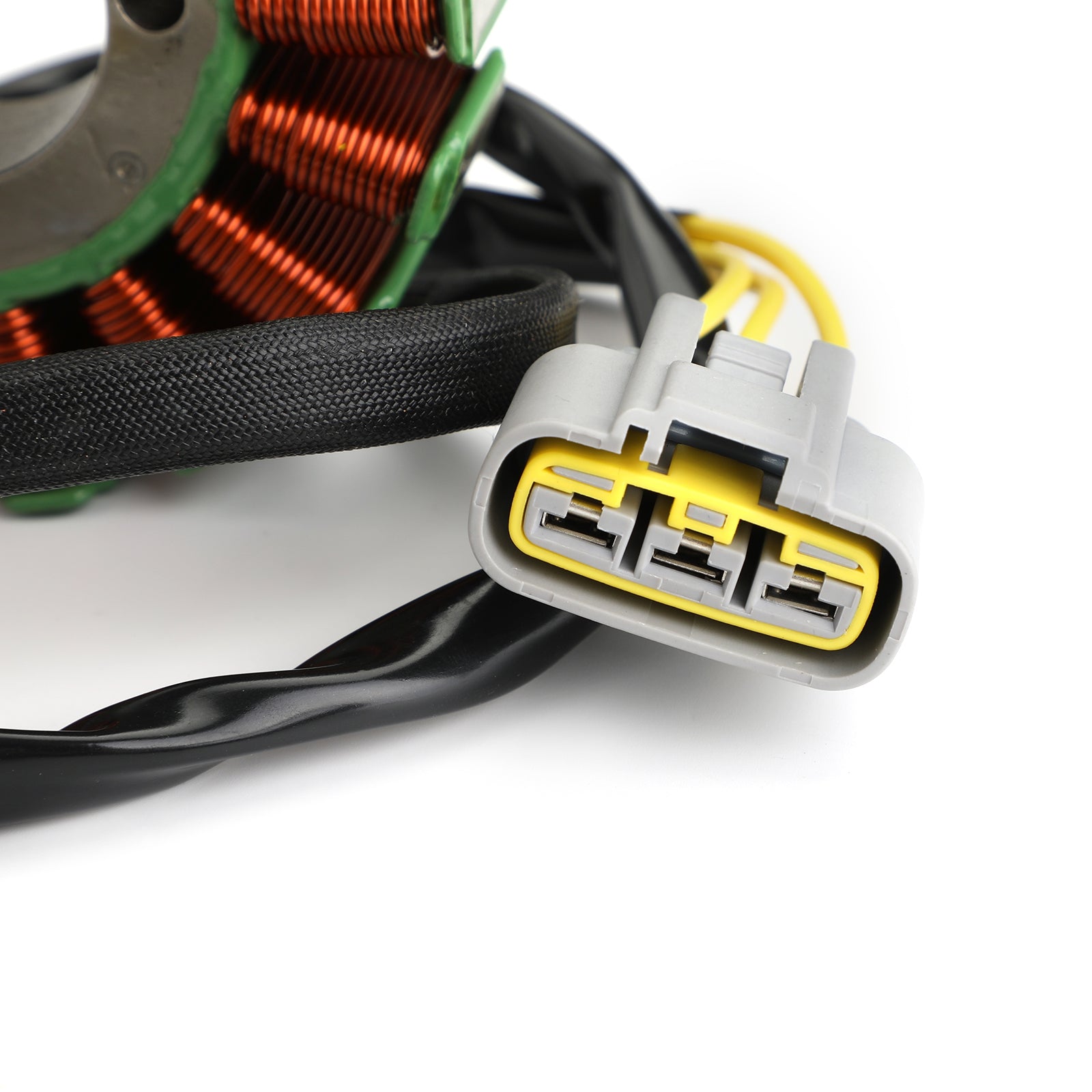

Connector included.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

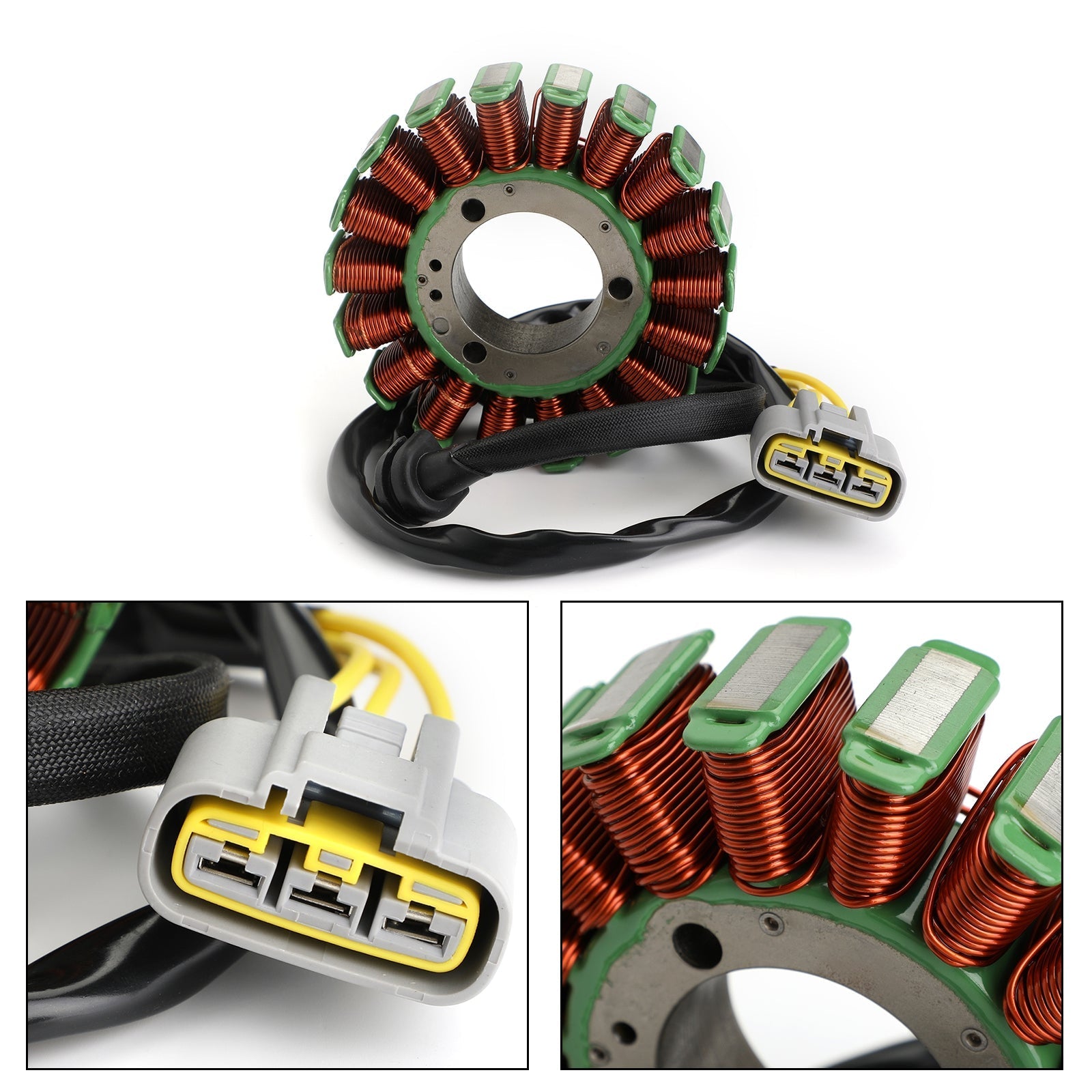

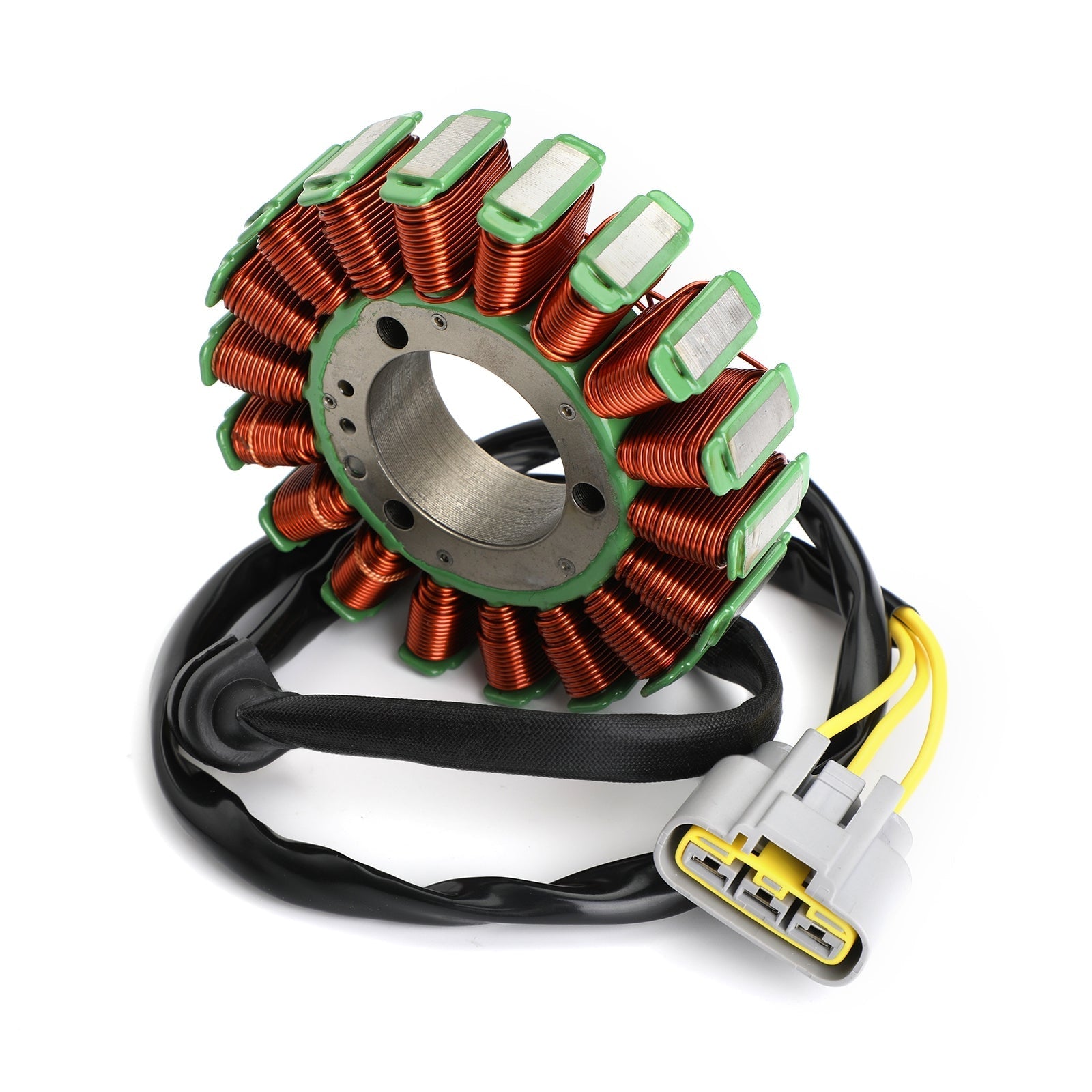

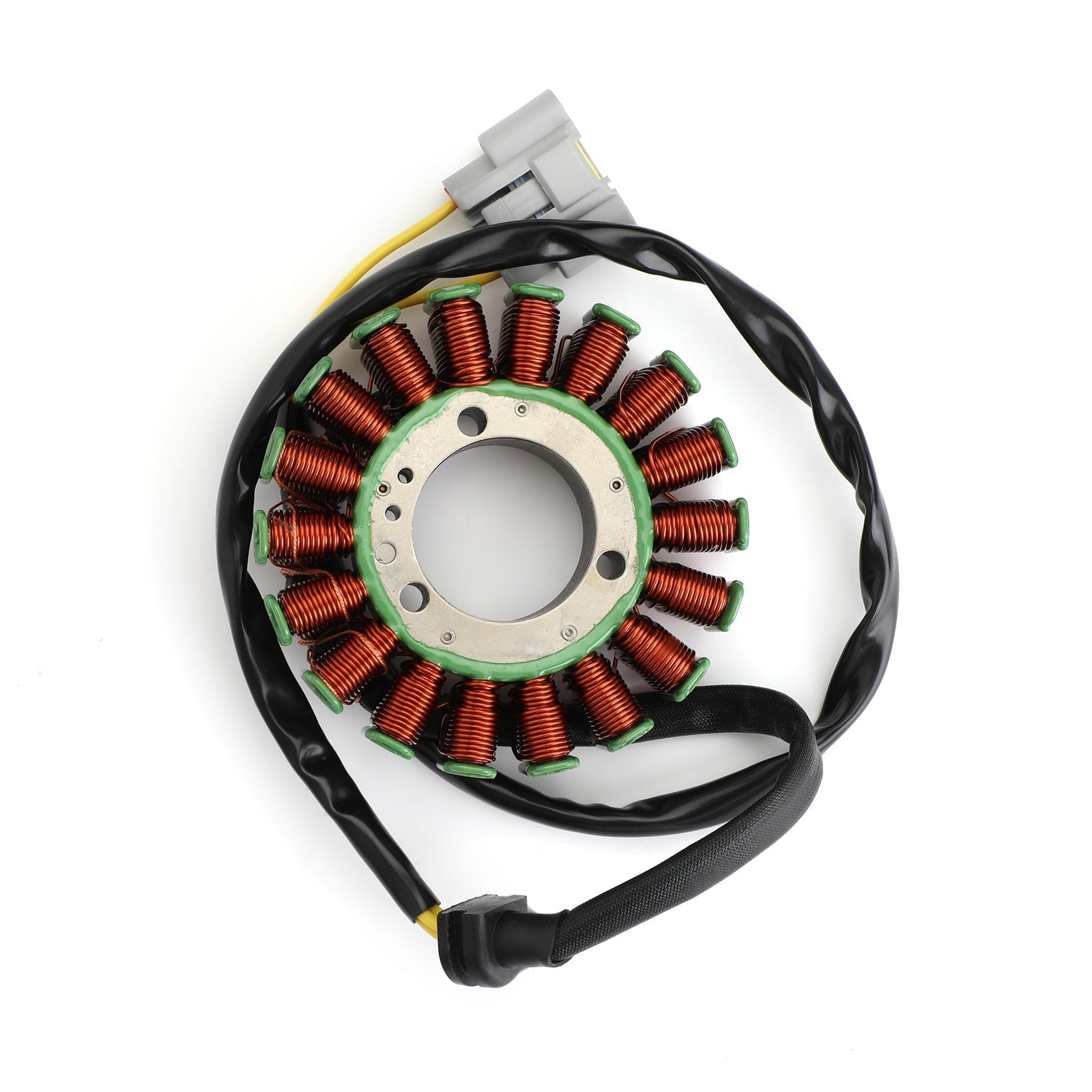

Type: Generator Stator Coil
Replacement Part Number: 420685635,420296908

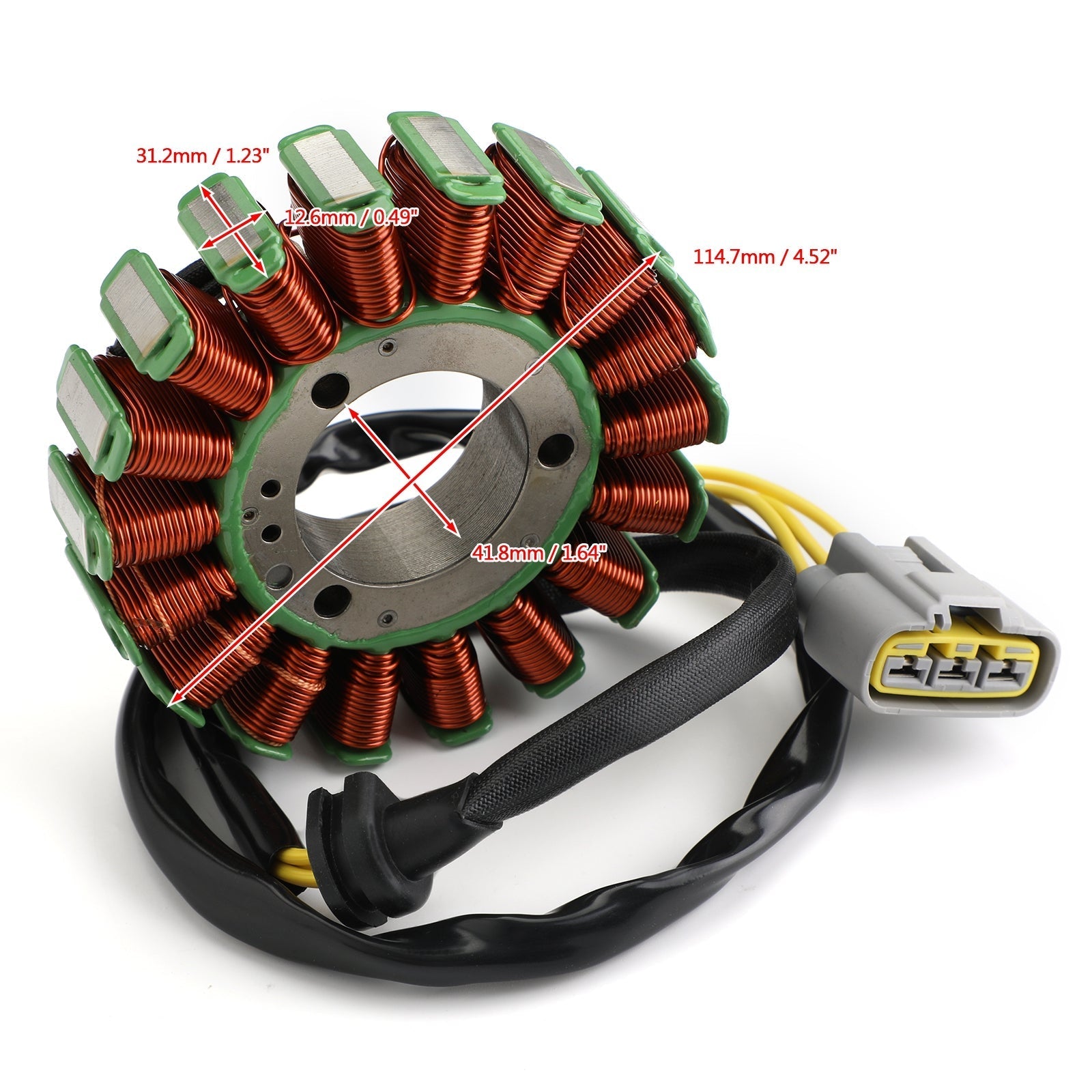

Dimensions :
Interior diameter : 41.8mm / 1.64"
Exterior diameter : 114.7mm / 4.52"
Pole's Thickness : 31.2mm / 1.23"
Pole's Width : 12.6mm / 0.49"
Other specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+2)
Number of poles: 18
FITMENT:
For Can-am Maverick 1000R Turbo 2018-2019
For Can-am Maverick X3 1000R Turbo 2017-2019
For Lynx 49 Ranger 600 2012-2013
For Lynx 49 Ranger 600 ACE 2014
For Lynx 59 YETI 600 2011-2014
For Lynx 69 YETI 600 2013-2014
For Lynx Adventure 600 2011-2014
ForLynx Rave 600 2012-2014
For Lynx Xtrim 600 2012-2014
For Lynx Xtrim SC 900 2014
For Sea-Doo Spark 2014-2017
For Ski-Doo Expedition 600 Sport ACE EFI L/C 2011-2014/2016-2018
For Ski-Doo Expedition 900 ACE EFI L/C 2015-2017
For Ski-Doo Expedition 900 Sport ACE EFI L/C 2016-2017
For Ski-Doo Grand Touring 900 ACE EFI L/C 2014-2017
For Ski-Doo Grand Touring Sport 600 ACE EFI L/C 2011-2014/2016-2018
For Ski-Doo Grand Touring Sport 600 Carb L/C 2015
For Ski-Doo GSX 900 ACE EFI L/C 2014-2015
For Ski-Doo MX Z 600 ACE 2016-2018
For Ski-Doo MX Z 600 Sport ACE EFI L/C 2011-2015
For Ski-Doo MX Z 600 TNT EFI L/C 2011-2012, 2014
For Ski-Doo MX Z 900 Blizzard ACE 2016-2017
For Ski-Doo MX Z 900 TNT ACE EFI L/C 2014-2015
For Ski-Doo Renegade 600 Sport ACE EFI L/C 2011/2013-2018
For Ski-Doo Renegade 900 Adrenaline ACE EFI L/C 2014-2017
For Ski-Doo Renegade 900 Enduro ACE 2017
For Ski-Doo Skandic 600 SWT ACE EFI L/C 2012-2017
For Ski-Doo Skandic 600 Tundra EFI L/C 2011
For Ski-Doo Skandic 600 WT ACE 2011-2015/2017-2018
For Ski-Doo Skandic 900 SWT EFI L/C 2015
For Ski-Doo Skandic 900 WT EFI L/C 2015-2017
For Ski-Doo Tundra 600 LT ACE EFI L/C 2011-2015
ForSki-Doo Tundra 600 Sport ACE EFI L/C 2012-2018
Package included:
1x Generator Stator Coil
Notice:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
