Cylinder Piston Gasket Top End Rebuild Kit 84.5mm Fit For Yamaha Grizzly Kodiak Rhino Wolverine 450
Features:
If your cylinder blows through, the compression is too low, or even a piston seizure has occurred, then this kit is exactly the right thing for you.
Kit includes cylinder, piston, rings, pin, clips & top end gasket kit (you get exactly what is pictured).
The cylinder is made of aluminum for good cooling with an internal cast iron jacket (unlike which has a nicasil treatment).
The gaskets use performance materials to increase durability and provide greater reliability.
Includes all gaskets pictured to rebuild top end.
Kit is for standard bore size - 84.50 mm x 76 mm stroke, 20 mm steel piston pin.
This kit is excellent as a low-cost replacement for defects in the original cylinder.
Specifications:
Condition: Aftermarket 100% Brand New
Quantity: 1 Set
Material: Aluminum, Steel
Engine: 4-Stroke
Displacement: 421cc
Bore Type: Standard Bore
Bore diameter: 84.50 mm
Stroke: 76 mm
Pin diameter: 20mm
Pin length: 57mm
Replacement Part Number:
Cylinder: 5ND-11310-00, 5GH-11310-00
Cylinder Base Gasket: 5GH-11351-00
Cylinder Head Gasket: 5GH-11181-00
Piston: 5ND-11631-00-YX
Pin, Piston: 3LD-11633-00
Piston Ring Set (Std): 5ND-11603-00
Circlips, piston (2): 93450-22027
Chain Tensioner Gasket: 3GD-12213-00
(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year:
Fit for Yamaha YXR450 Rhino 450 2006-2009
Fit for Yamaha YFM450 Grizzly 450 2007-2016
Fit for Yamaha YFM450 Kodiak 450 2003-2024
Fit for Yamaha YFM450 Wolverine 450 2006-2010
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)

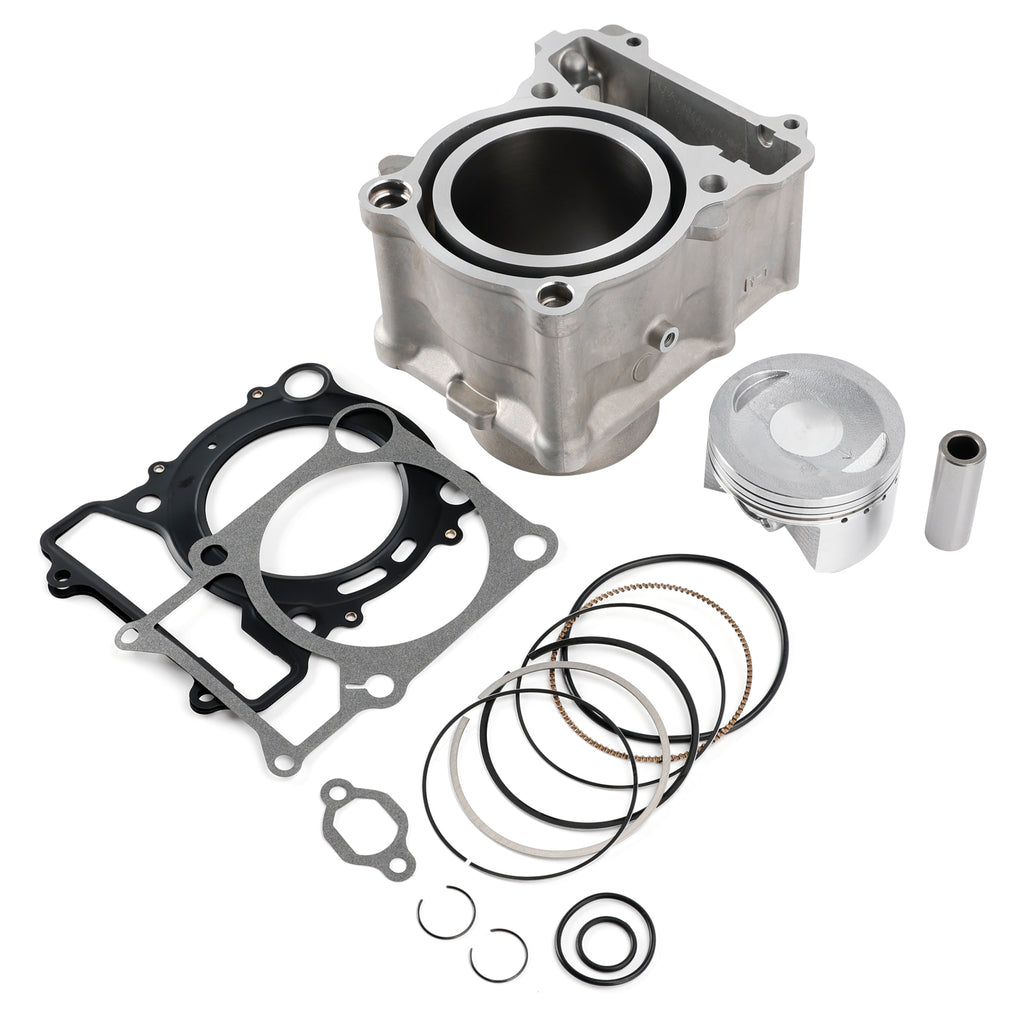

Package Includes:

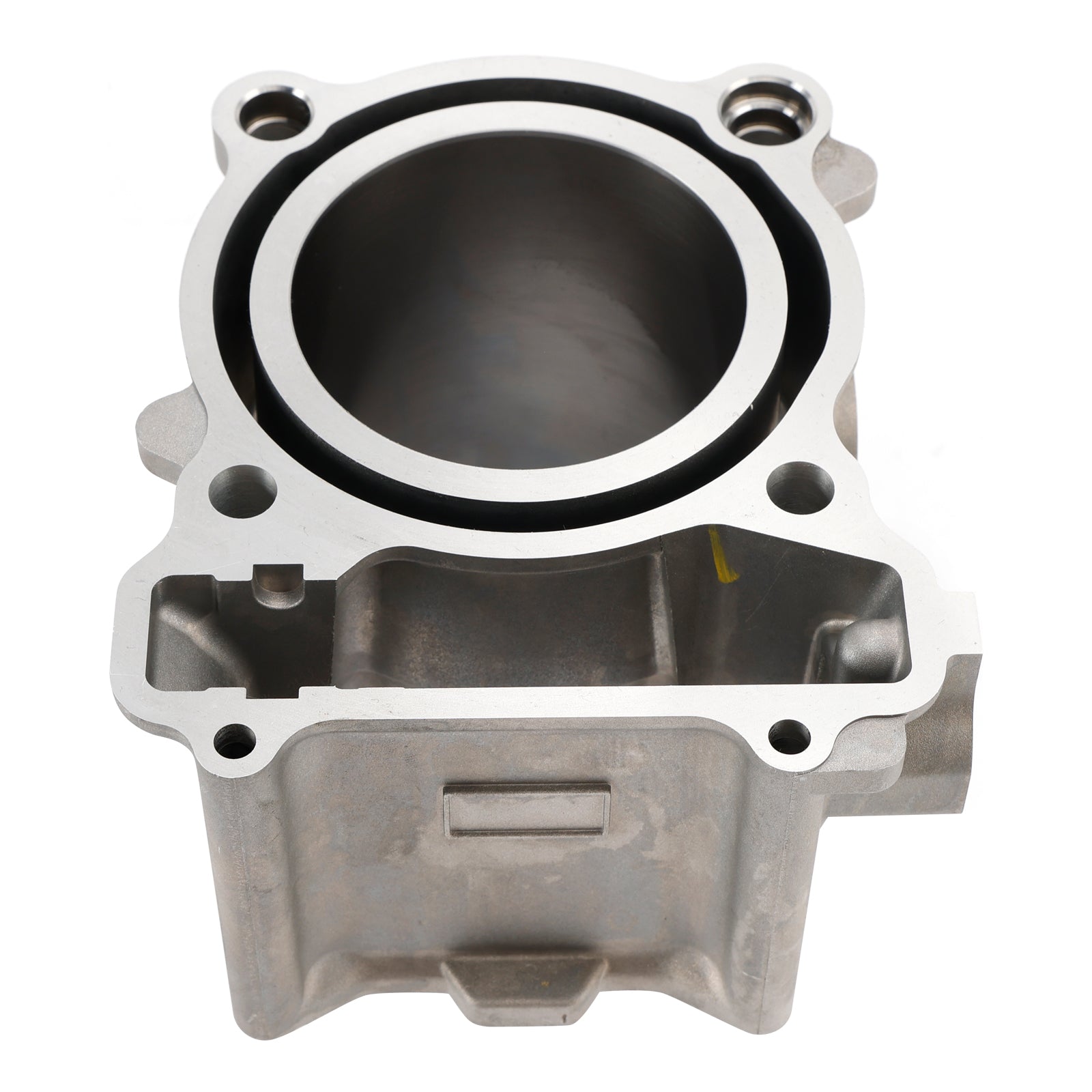

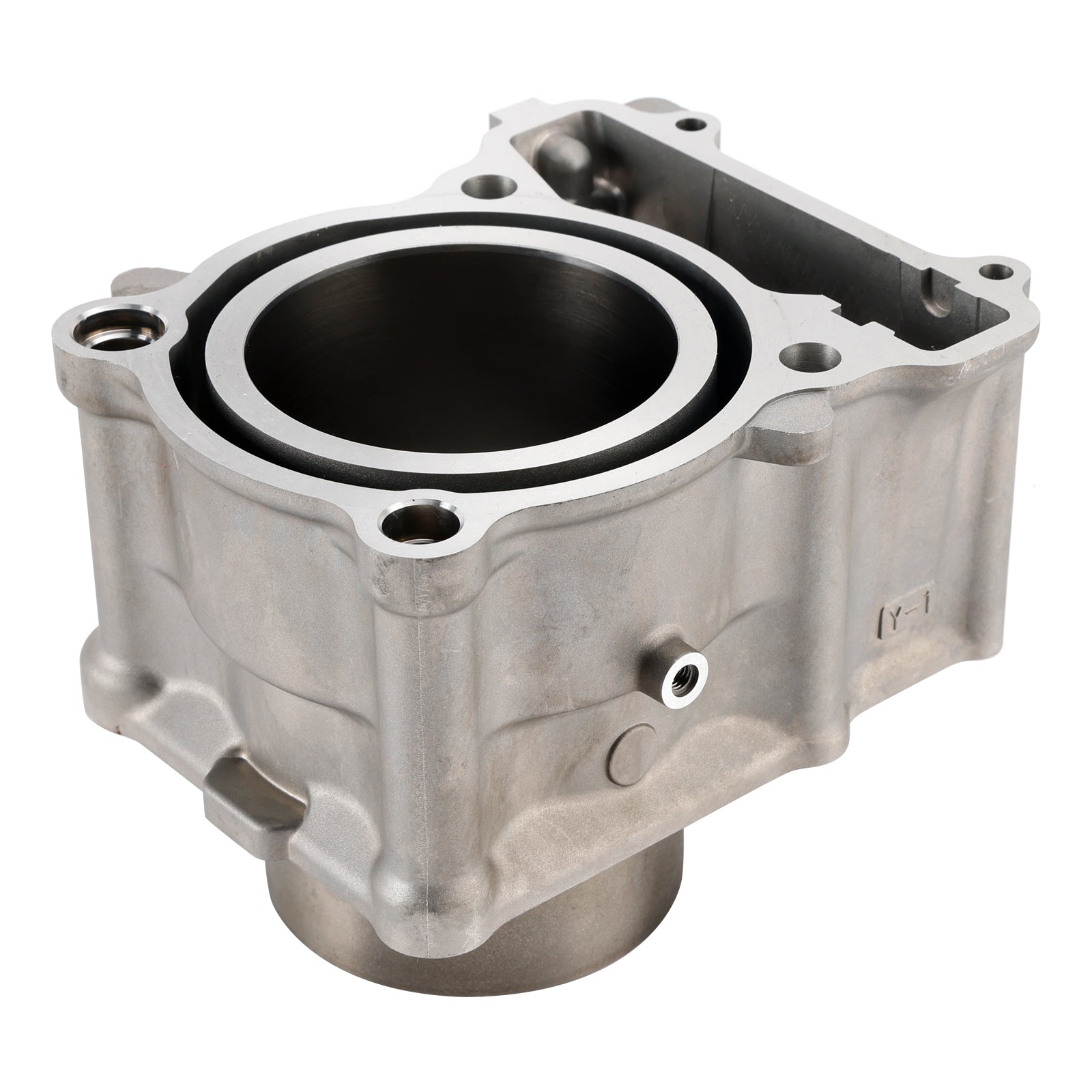

1x 84.5mm Cylinder

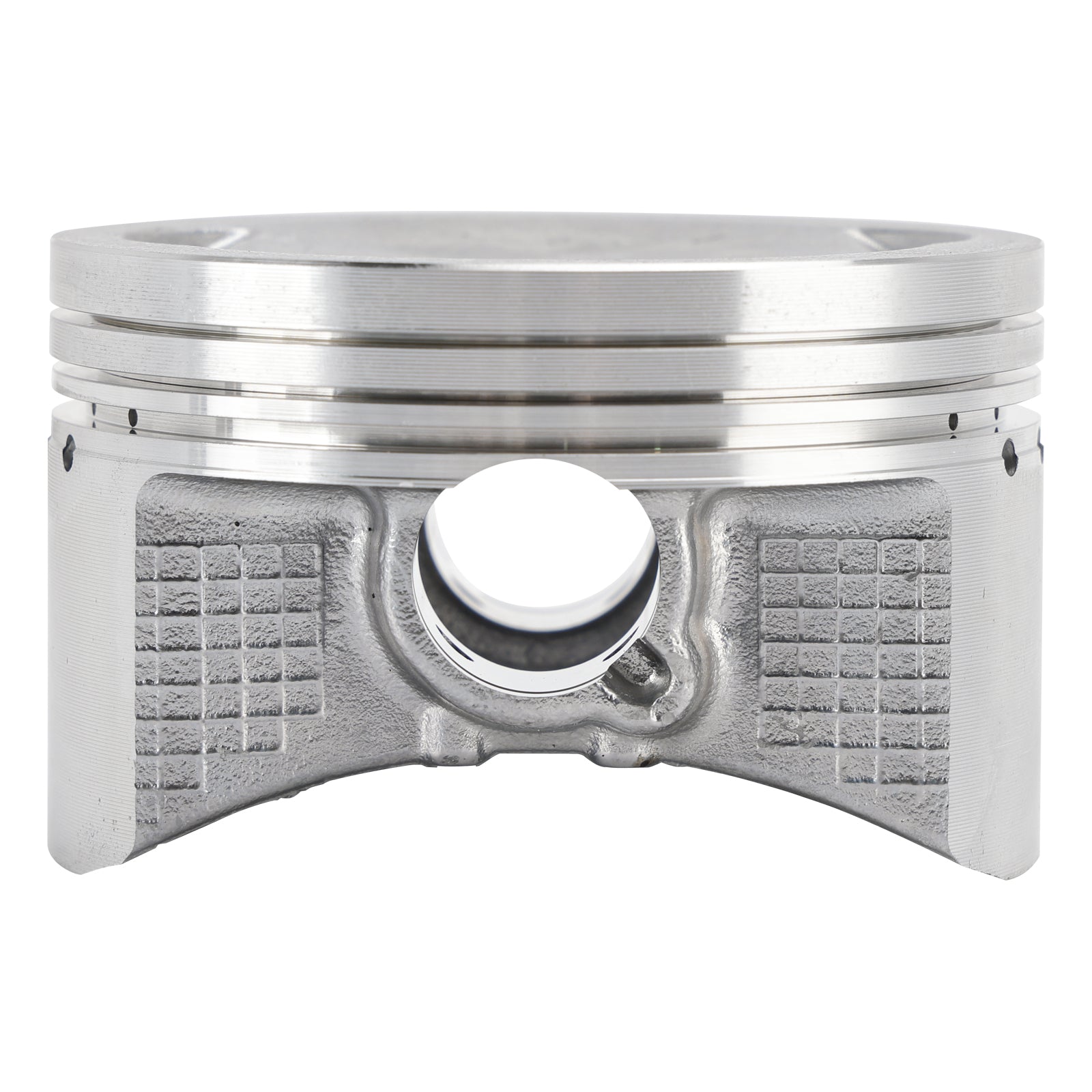

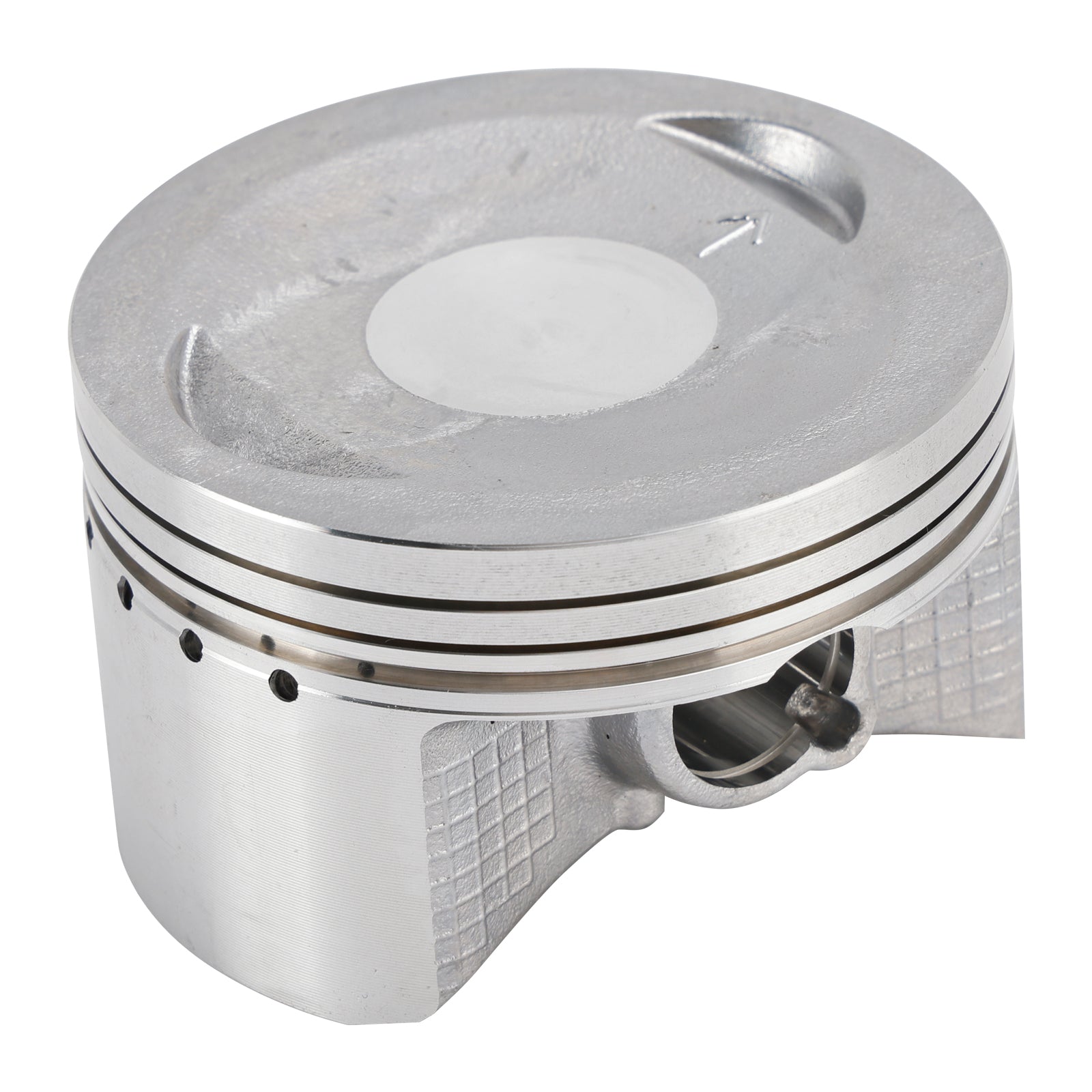

1x Piston

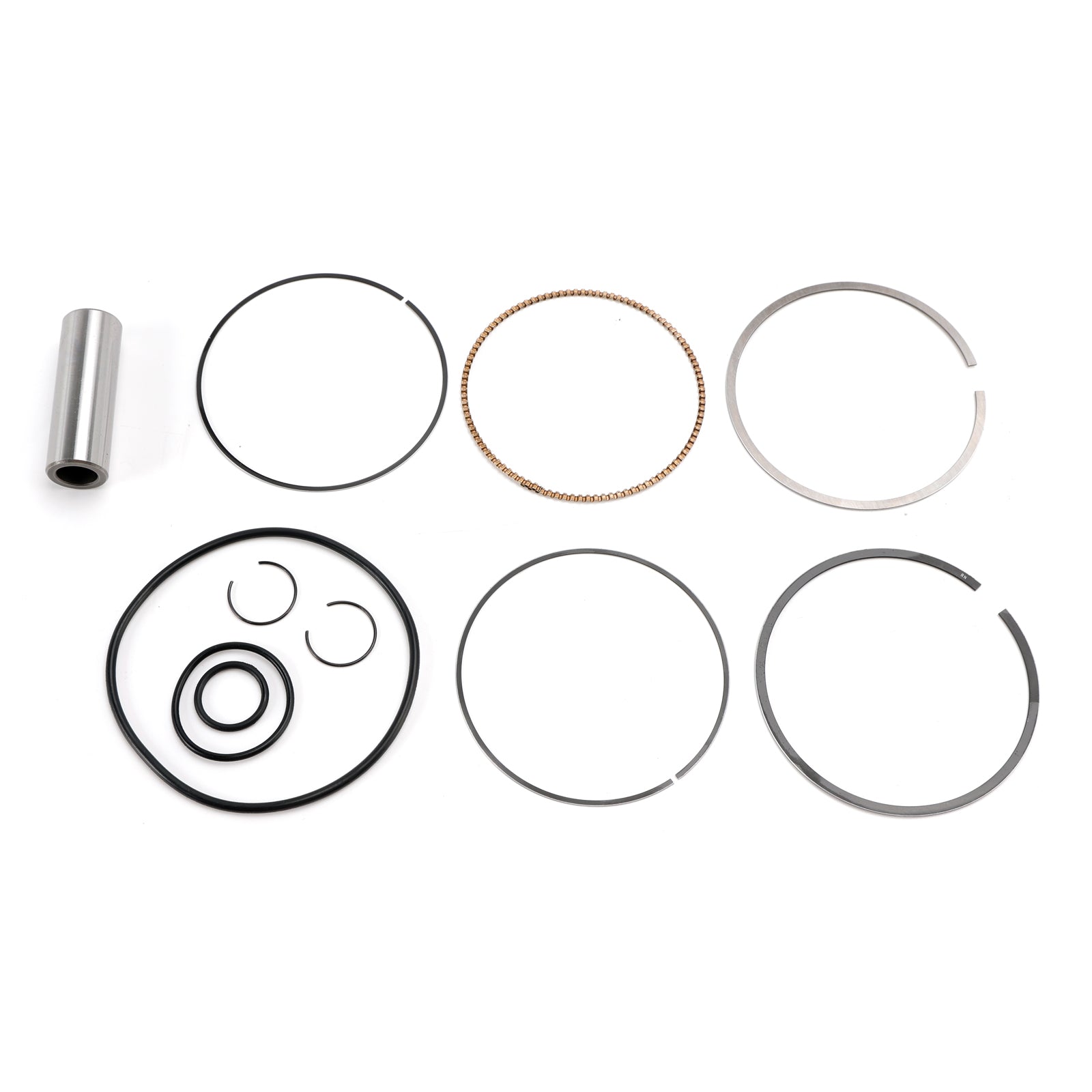

1x Piston Ring Set
1x 20mm Wristpin
1x Circlip(2)

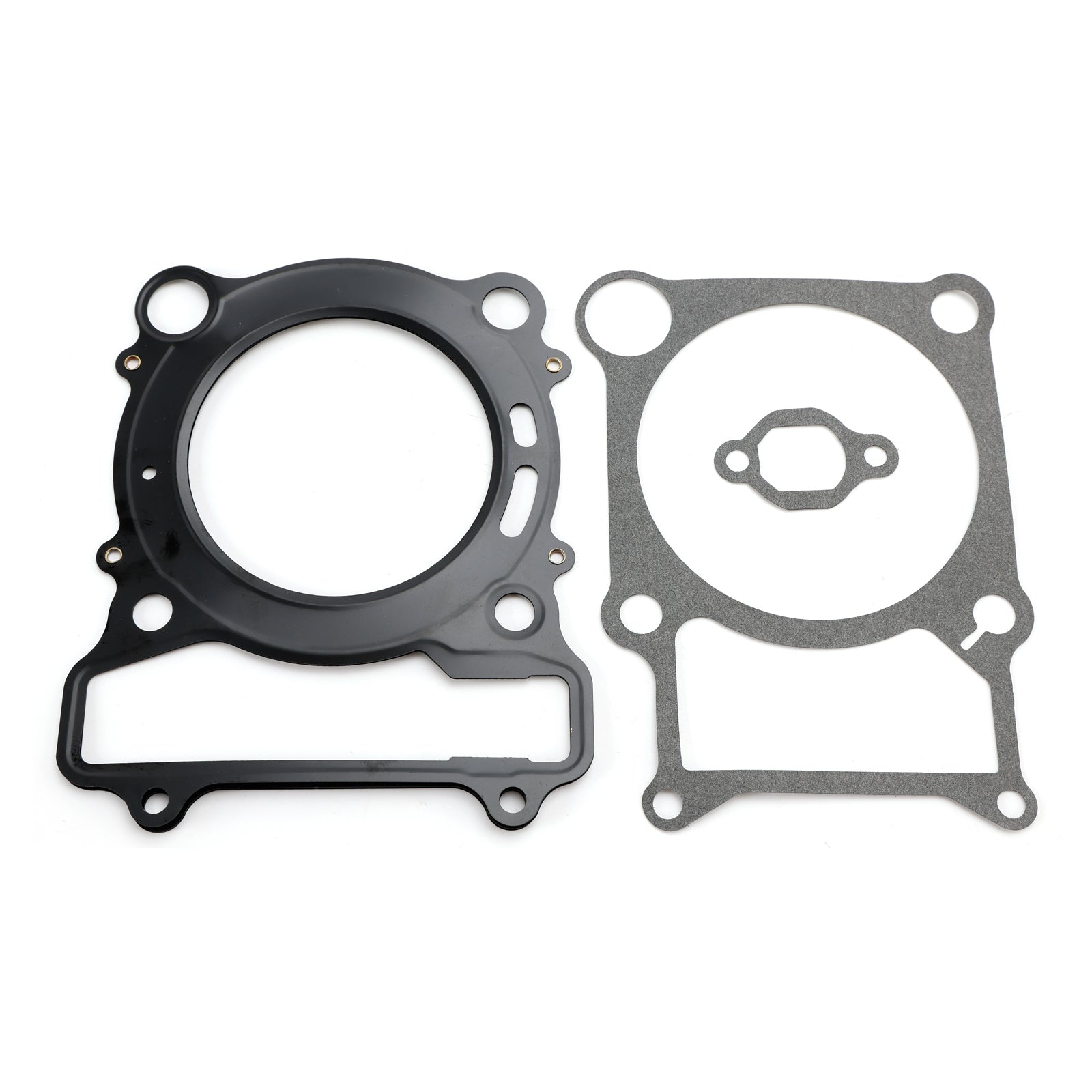

1x Cylinder Base Gasket
1x Cylinder Head Gasket
1x Chain Tensioner Gasket
2x O-rings
(Comes exactly as pictured.)
Note:
Carefully compare to your old parts to be sure this is the correct part for your machine.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer Fits.
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
