Description

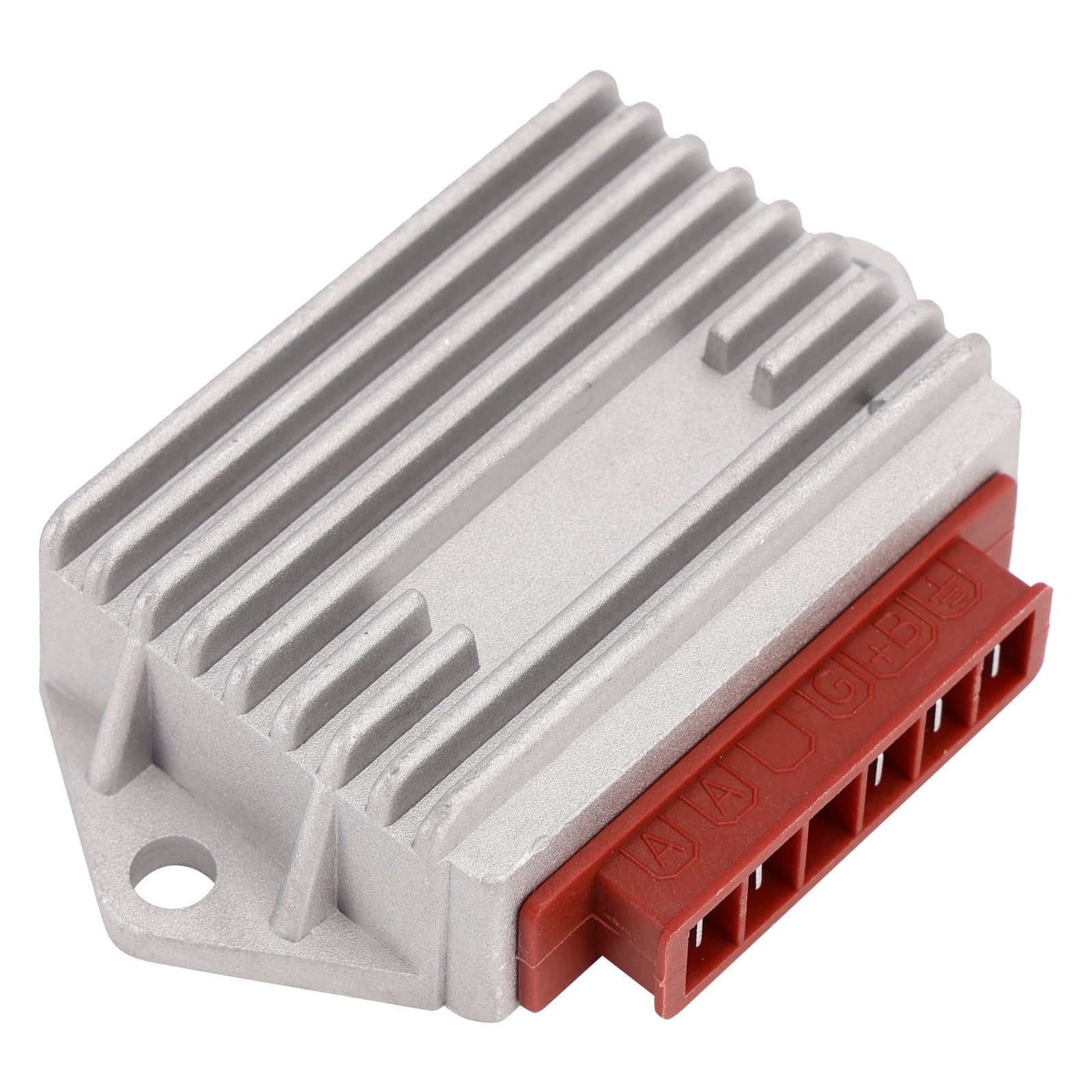

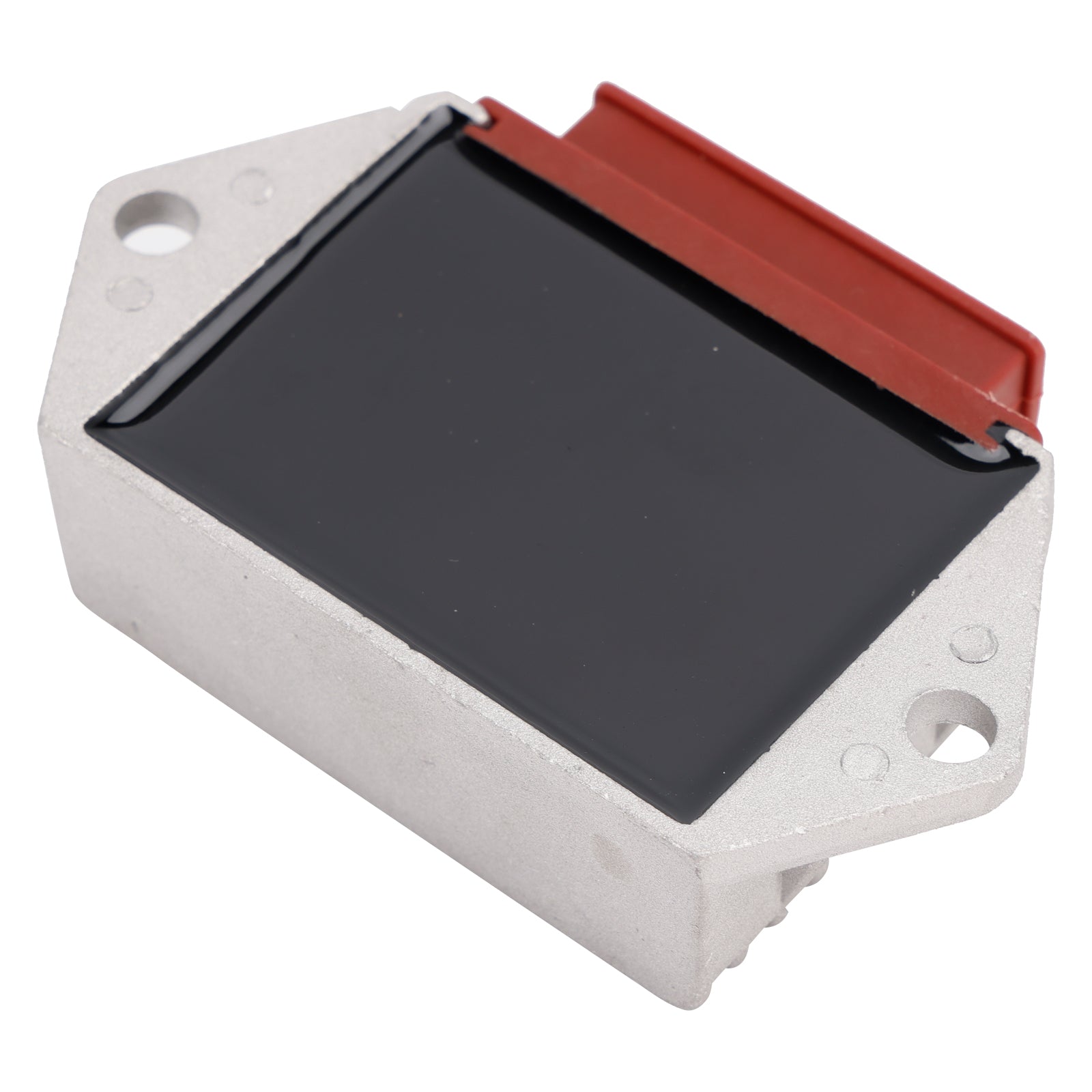

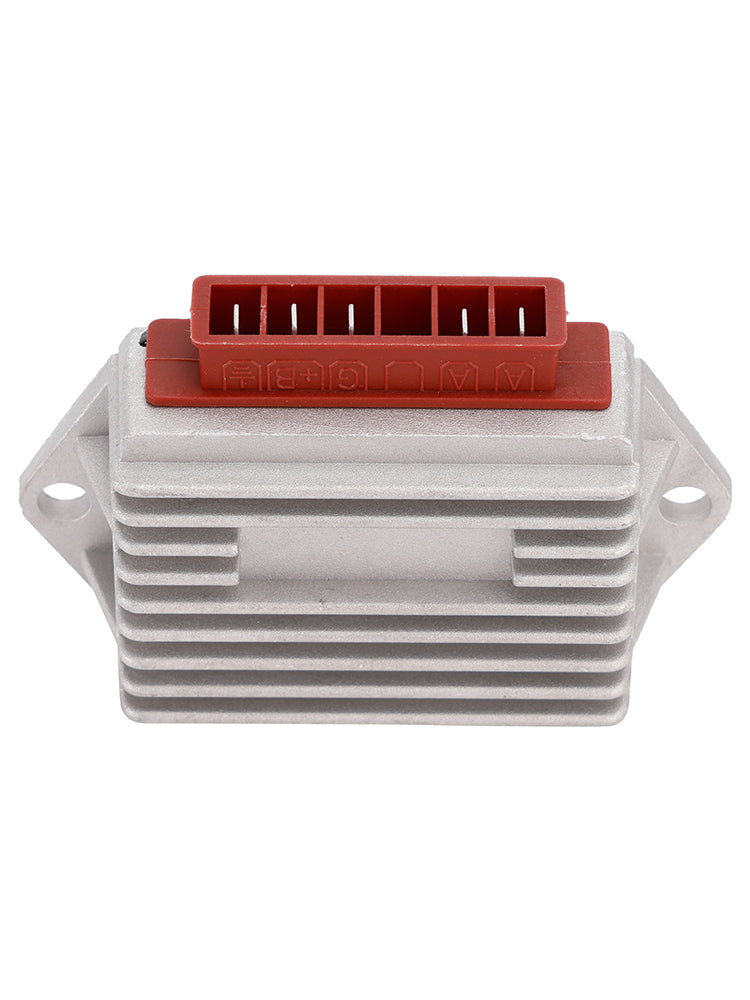

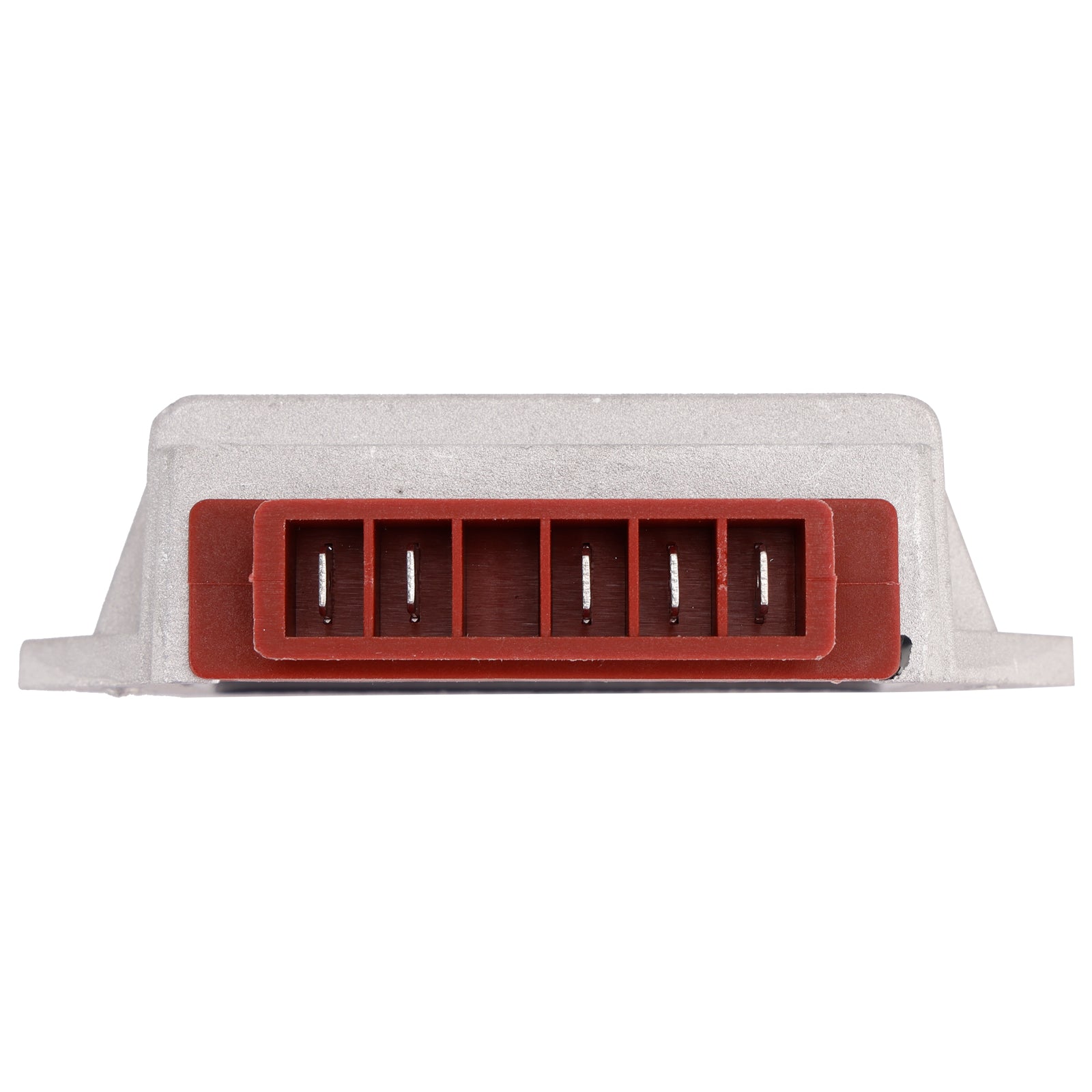

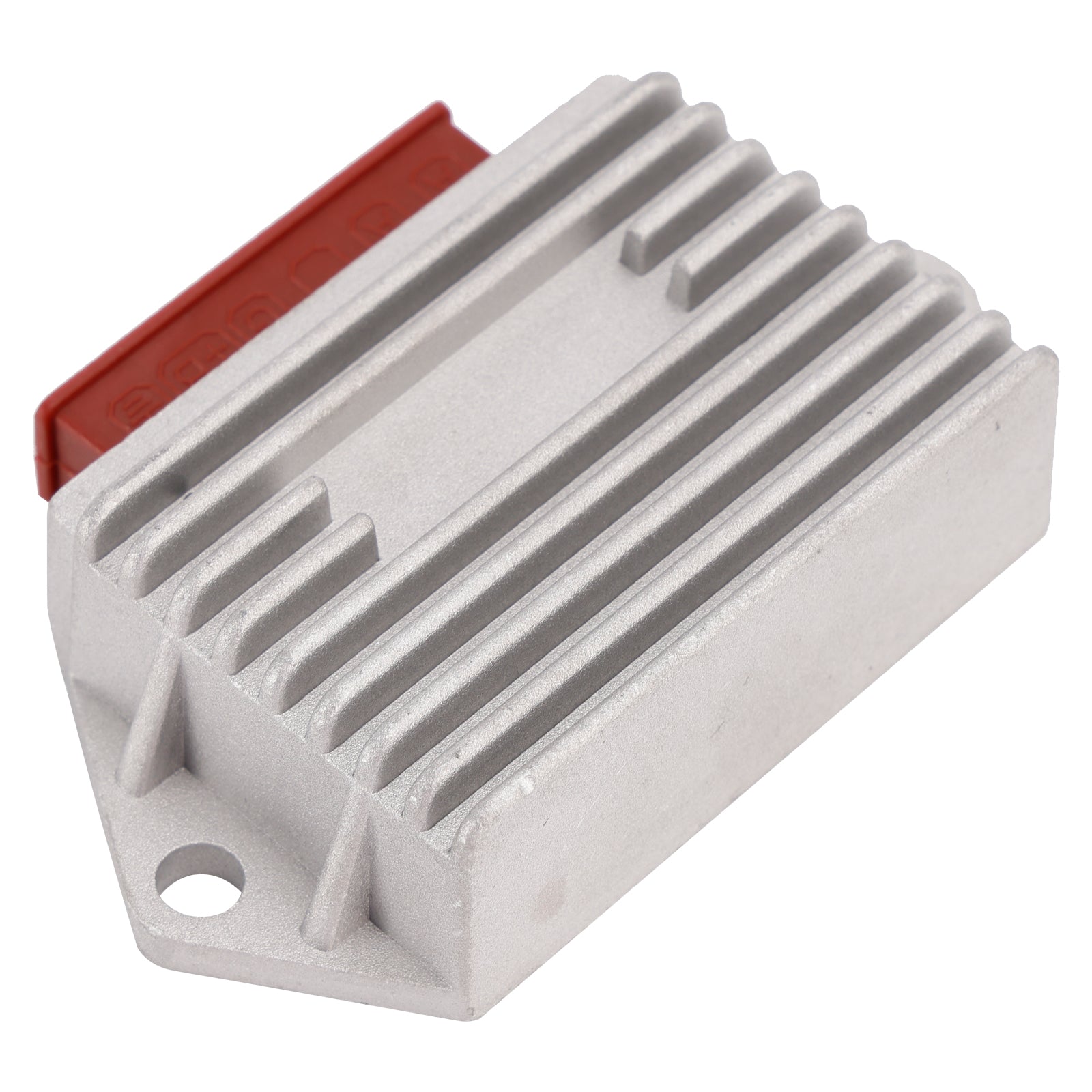

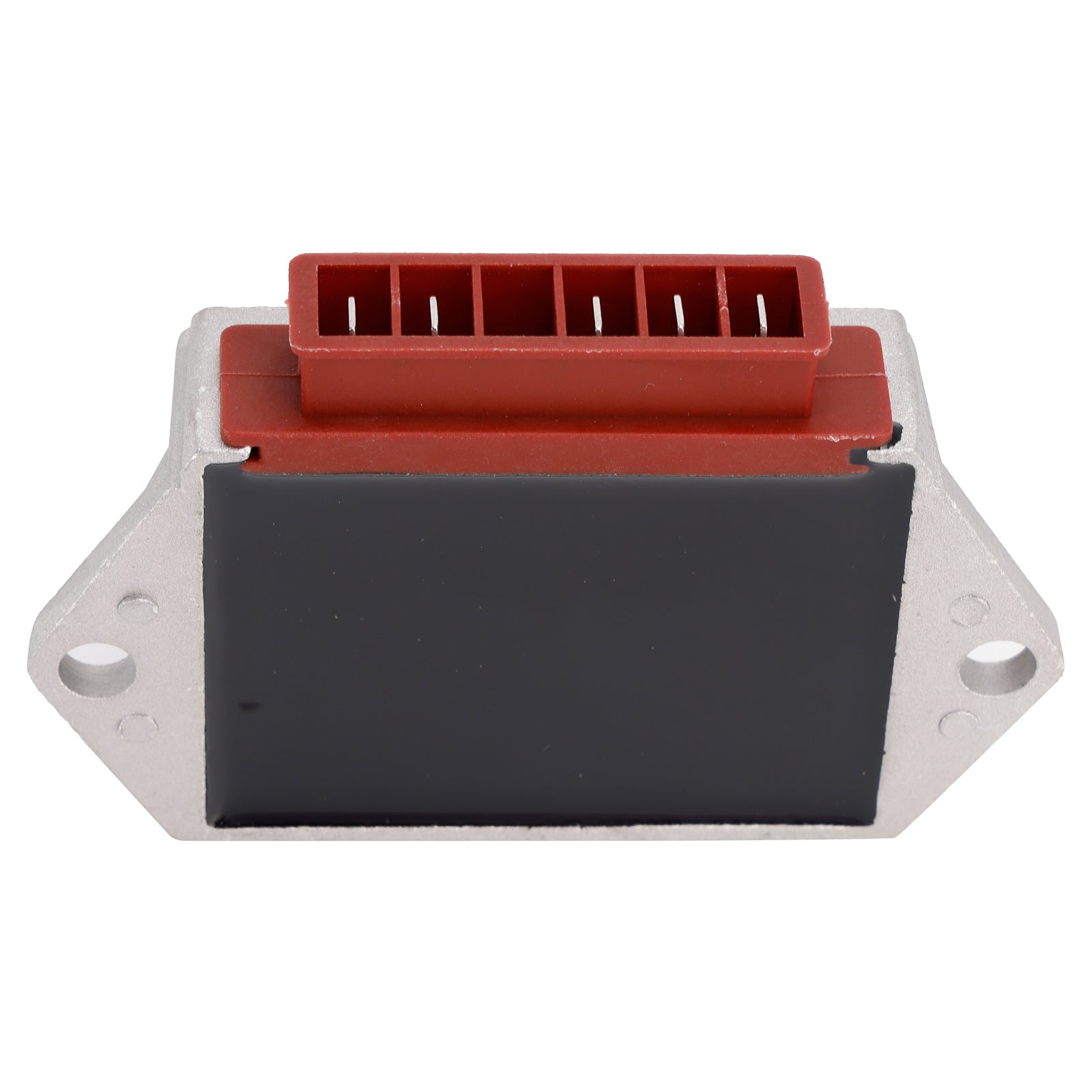

5-Pin Voltage Regulator Rectifier Fit for Piaggio Free Sfera Vespa Gilera Runner 50cc 2-Stroke
Features:
Direct replacement to your original unit.
Perfect fit and ready to install.
Always use a sealant to mount the cable gland joint.
All products shipped are tested.
Instruction is NOT included.
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Regulator / Rectifier
Other specifications:
Number of plugs: 1
Number of pins: 5
Please comfirm and compare the number of pins and plugs with the old part if the same before purchasing.
Replacement Part Number:
18308
9825570
(Always compare part numbers to your parts schematics and cross reference appropriately.)
(This is NOT a genuine Part, OEM part numbers are included for product type identification and comparison only.)
Fits Make/Model/Year:
Fit for Aprilia Compay 50 2009-2013
Fit for Aprilia Habana 125 1999-2002
Fit for Aprilia Mojito 50 2004-2013
Fit for Aprilia SR 50 AC 2012-2018
Fit for Aprilia SR 50 R LC 2005-2018
Fit for Aprilia SR 50 LC 2003-2019
Fit for Aprilia Sportcity 50 2T 2013
Fit for Derbi Atlantis 50 AC 2000-2013
Fit for Derbi Boulevard 50 4T 2009-2011
Fit for Derbi GP-1 50 LC 2007-2011
Fit for Derbi GP-1 50 V2 LC 2005-2007
Fit for Derbi GP-1 50 V1 LC 2005-2006
Fit for Derbi GP-1 50 LC 2002-2004
Fit for Gilera DNA 50 GP 2003-2008
Fit for Gilera DNA 50 2000-2003
Fit for Gilera Ice 50 2002-2003
Fit for Gilera Runner 50 SP DD 1999-2019
Fit for Gilera Runner 50 DD 1998-2001
Fit for Gilera Runner 50 DT 1997-1998
Fit for Gilera Stalker 50 DT 1999-2006
Fit for Gilera Stalker 50 DD 1997-2000
Fit for Gilera Storm 50 2008-2011
Fit for Piaggio Ape 50 1998-2014
Fit for Piaggio Fly 50 2T 2005-2007/2010-2012
Fit for Piaggio Free 50 FL DT 1995-1999
Fit for Piaggio Liberty 50 S 2006-2009
Fit for Piaggio Liberty 125 1998-2001
Fit for Piaggio NRG 50 DD 2017
Fit for Piaggio NRG mc3 50 AC DT 2003/2015
Fit for Piaggio Typhoon 50 XR 2000-2007
Fit for Piaggio Zip 50 2010-2016
Fit for Piaggio Zip 50 DT 1999-2001
(Compatibility Chart is for reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitment)
Package includes:
1x 5-Pin Regulator Rectifier
Note:
Signs that your regulator needs replacing:
Depending on the location of the regulator rectifier, the part can easily overheat. Other causes for a dead regulator rectifier center on the battery. Ground connections are important for good voltage, and if there is a faulty voltage, the regulator rectifier can run hot. Bad grounding, corroded battery connection and poor or loose battery connections will cause faulty voltage too.
There are generally two ways for the regulator rectifier to fail:
The first deals with diode burnout, resulting in battery drain. It is easy to assume that the issue is a bad battery because of symptoms such as dimming headlights and poor starts. Checking the voltage with a voltmeter versus relying on symptoms alone will prove highly beneficial. If the voltage drops below 13 volts, the motorcycle will begin to drain the battery and eventually the engine will stop. Check for bad connections and corrosion; these can also cause voltage issues.
The other failure type is shunt regulator burnout, where the regulator rectifier fails to control the voltage, resulting in battery overcharge. Again, a voltmeter will be useful for diagnosis. Though generally, readings above 17 volts mean the regulator rectifier is not converting the excess power correctly and all of that excess voltage may cause the headlights to become extremely bright and then blow.
The product on offer is an accessory or spare part and thus is not an original product of the vehicle manufacturer.
The name of the vehicle manufacturer is stated only as an indication of the determination of the product being offered as an accessory or spare part, to clarify, for which vehicle the product on offer fits.
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
