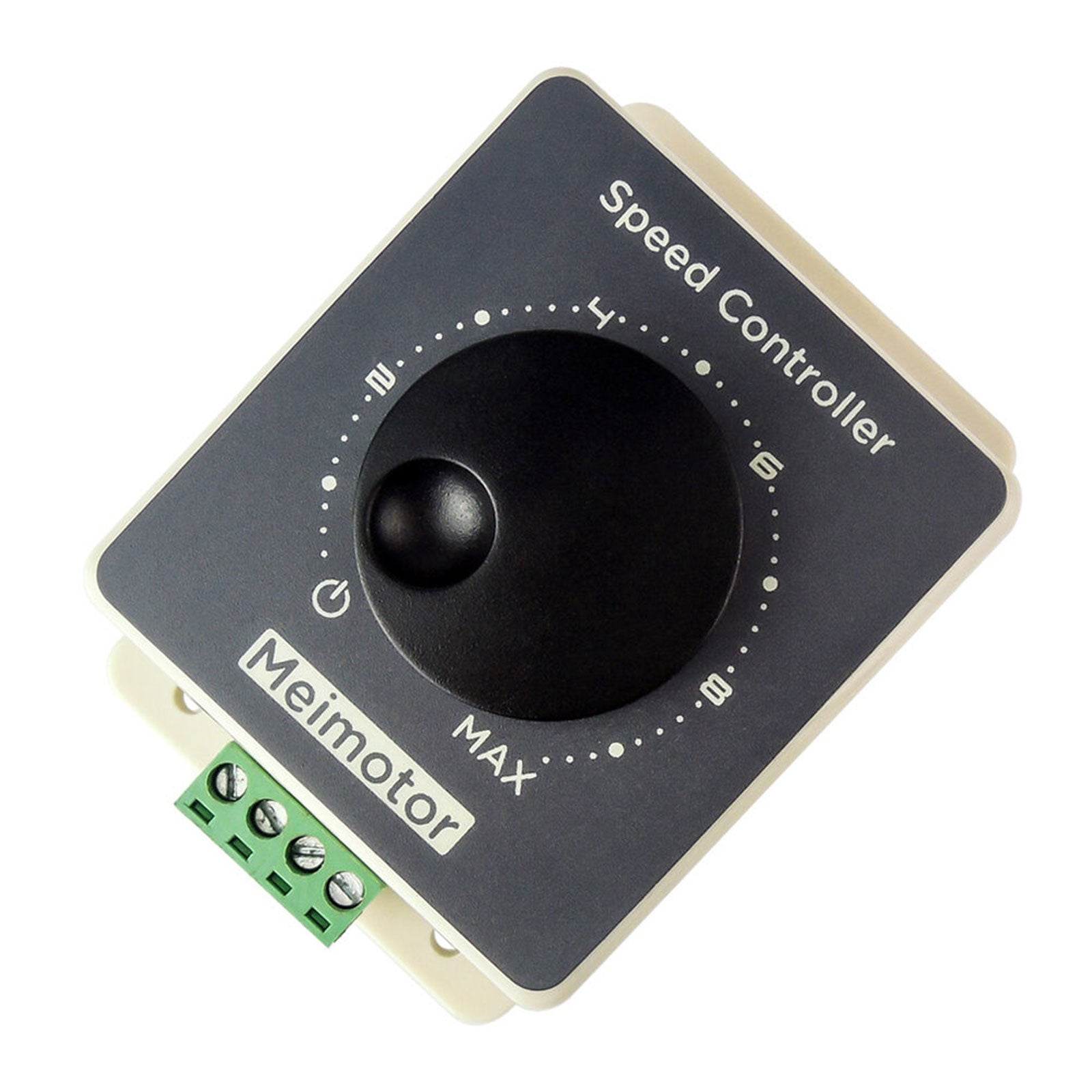

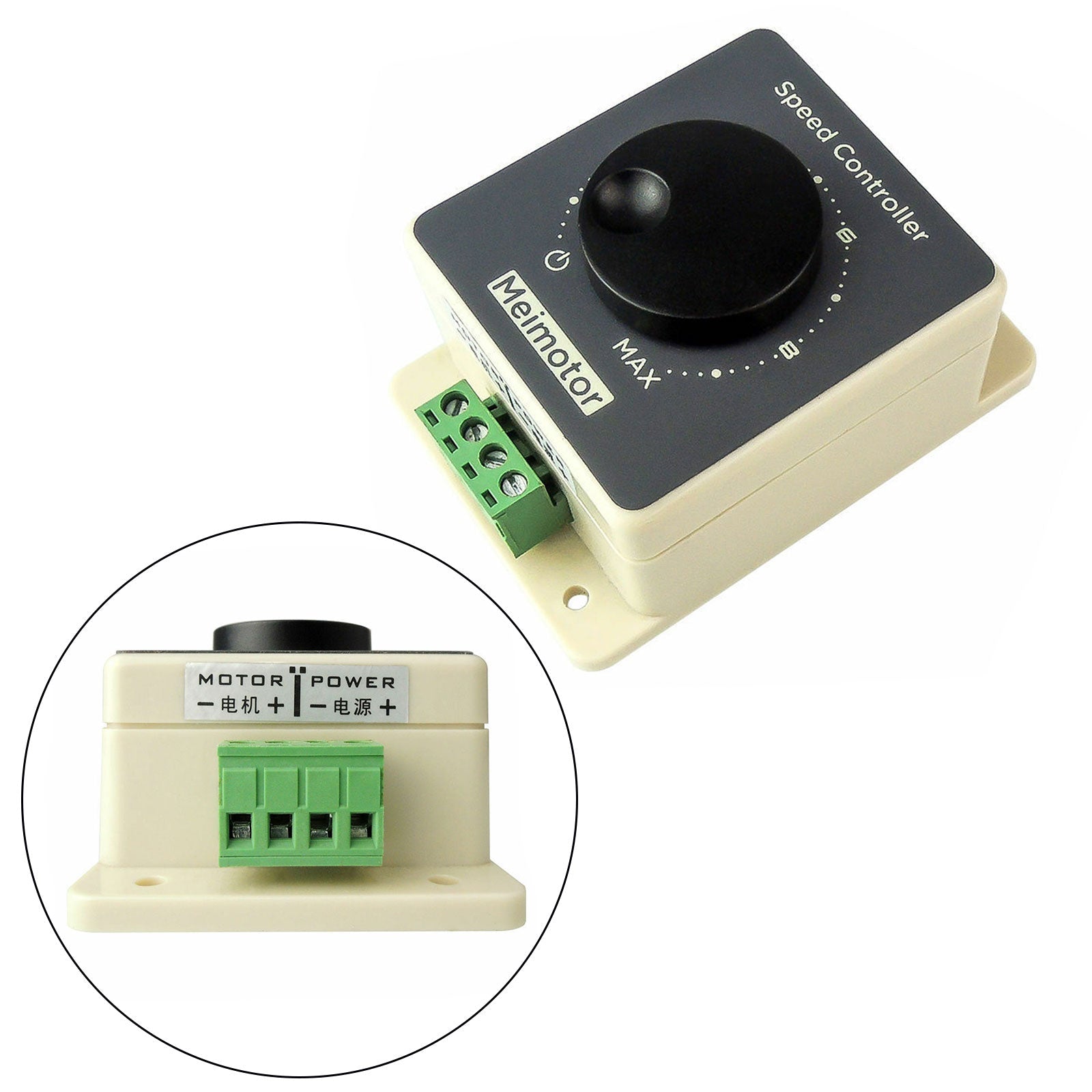

DC 10-60V 10-20A Pulse Width Modulator PWM Waterproof DC Motor Speed Controller

SKU: I029-A010

Sale price£9.88


DC 10-60V 20A Pulse Width Modulator PWM Waterproof DC Motor Speed Controller

1: Potentiometer with adjust speed switch function,and button switch function

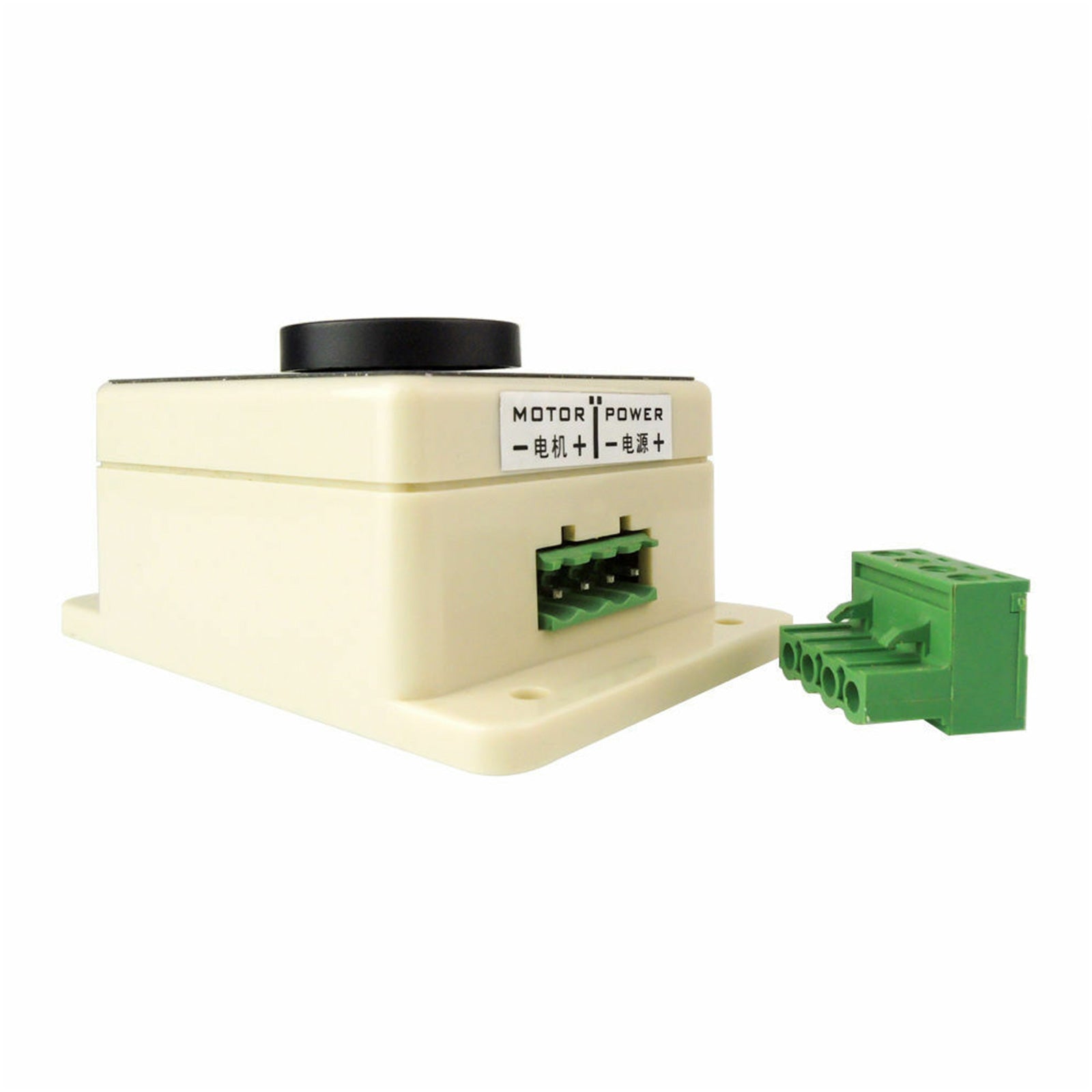

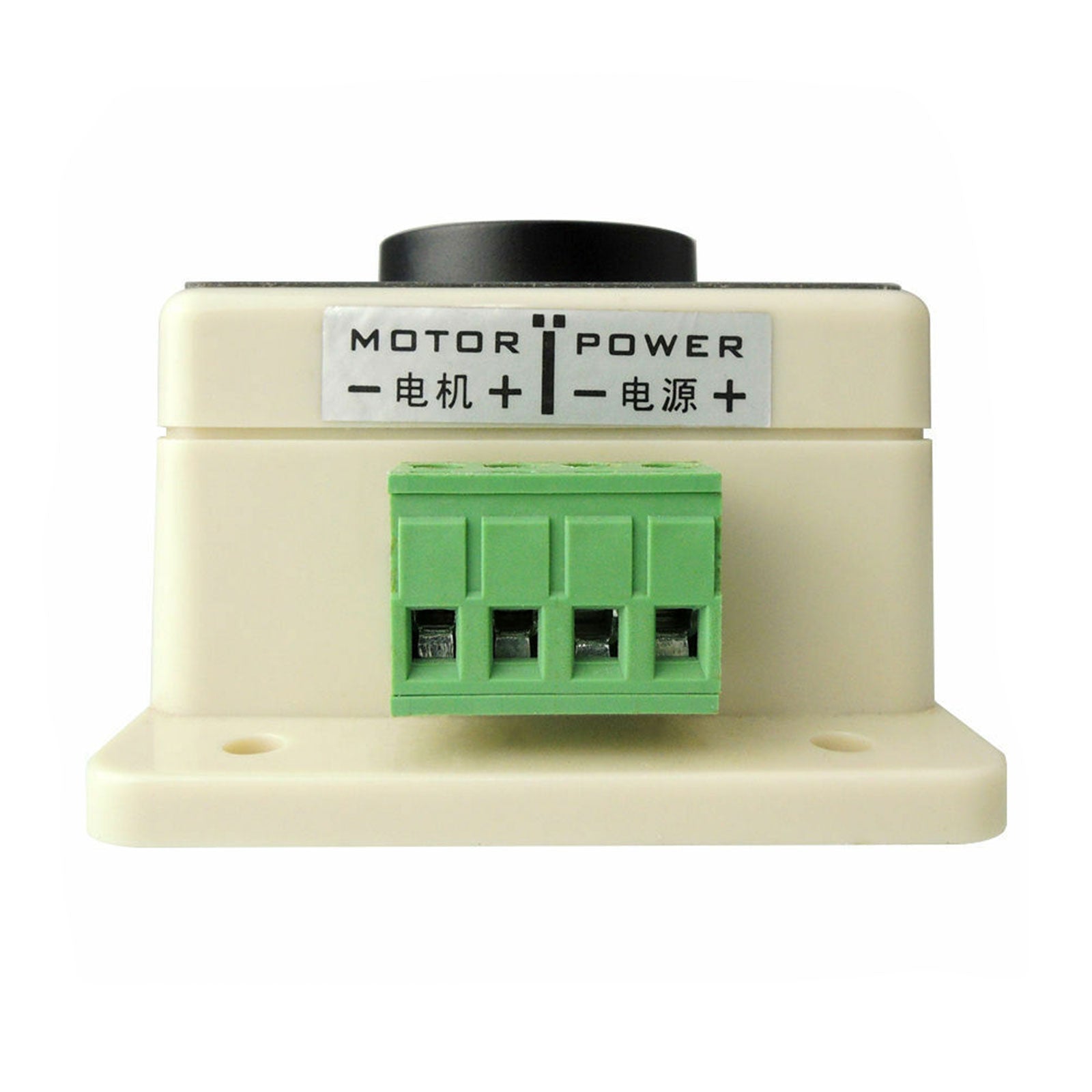

2: The item with metal shell and connective label,very easy to install and use
3: DC Motor Speed Regulator controls the speed of a DC motor by adjusting Pulse-Width-Modulated (PWM)
4: Change motor direction, interchange the positive and negative wires of motor

Condition: 100% Brand New
Model: CCM96SK
Input Voltage: DC 10-60V
Output Voltage: 0-100% of input voltage
Rated Current: 10A
Max Current: 20A
Speed Range: 5%-100%
PWM Frequency: 25kHz
Power: 12V x 10A=120W, 24V x 10A=240w,.................
Potentiometer: Resistance B100K , Opening hole 8mm

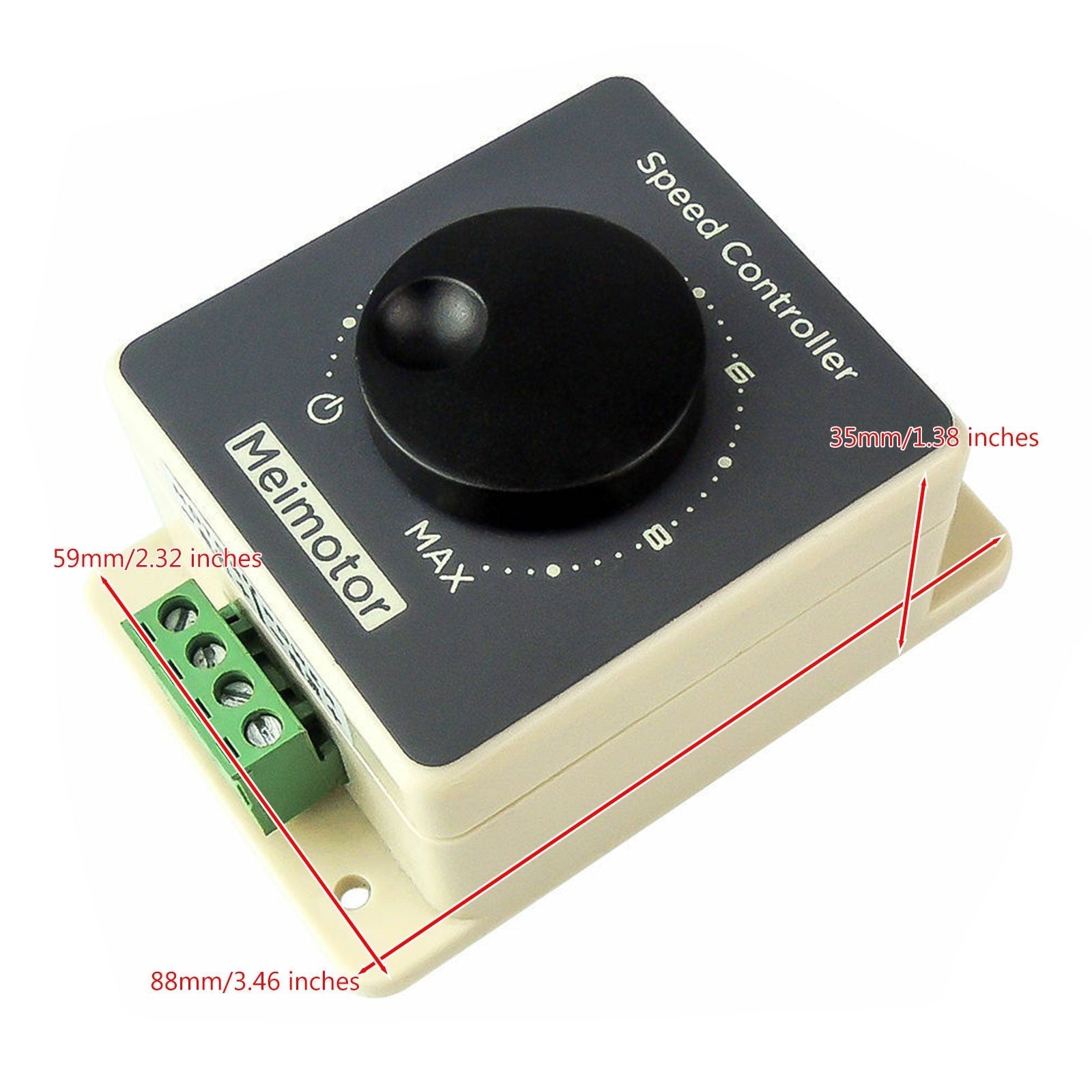

Dimensions: 88mm * 59mm * 35mm / 3.4" * 2.3" * 2.3"

1. The input of the DC motor speed controller is direct current, not directly connected to alternating current, otherwise it will burn out.
2. The positive and negative poles of the DC power supply cannot be reversed, otherwise the governor will be damaged.
3. The motor can be positive or negative. When the running direction is inconsistent with the expectation, the direction can be changed by adjusting the wire sequence.
4. The potentiometer knob can change the duty cycle of the governor output, thereby changing the motor speed

Package Included:
1x DC Motor Controller
