Description
Feature:
1:Waterproof, dustproof, shockproof, small volume, simple installation.
2:Not isolation shape DC regulated power supply module, high stability of output.
3:Wide voltage input, built-in over current, over voltage, over temperature, short circuit, and automatic protection functions.
4:Great for on-board electrical appliances,LED displays, cable TV,outdoor environment,and widely used in automotive.posts and telecommunications,
communications, electricity, coal, aerospace, defense,surveillance systems,railway signals, medical equipment, instruments,meters and other fields.
Specifics:
Condition: 100% Brand New

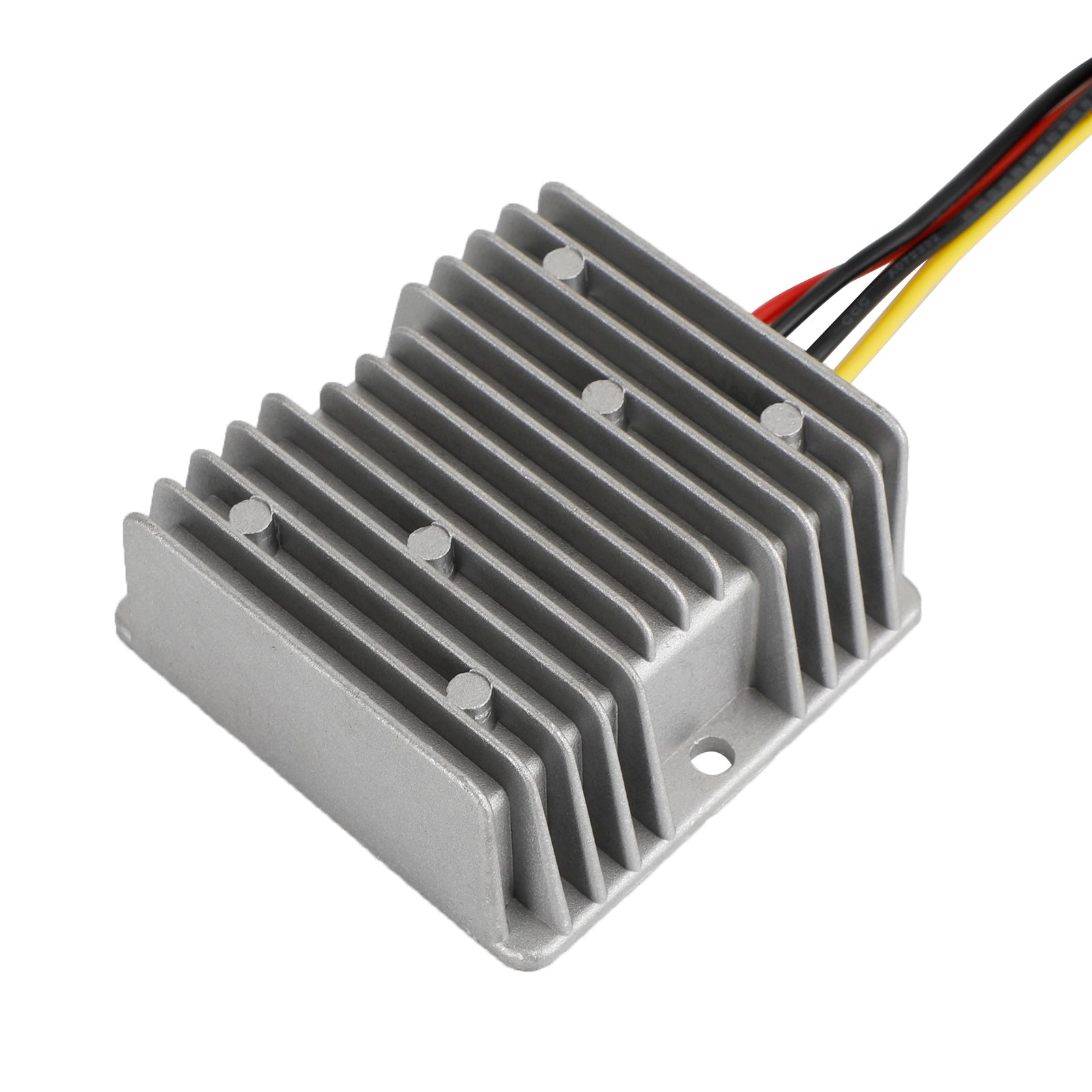

Shell Material: Die-cast aluminum alloy
Input voltage: 9 ~ 20V DC
Output voltage: 12V±0.2V DC
Output current: 5A (max), 60W
Operating temperature: -40°C ~ +80°C
Efficient conversion: 92%~96%
Waterproof Rating: Ip68
Static power consumption: 10~15ma
Wire lengths: 130mm/5.12inches

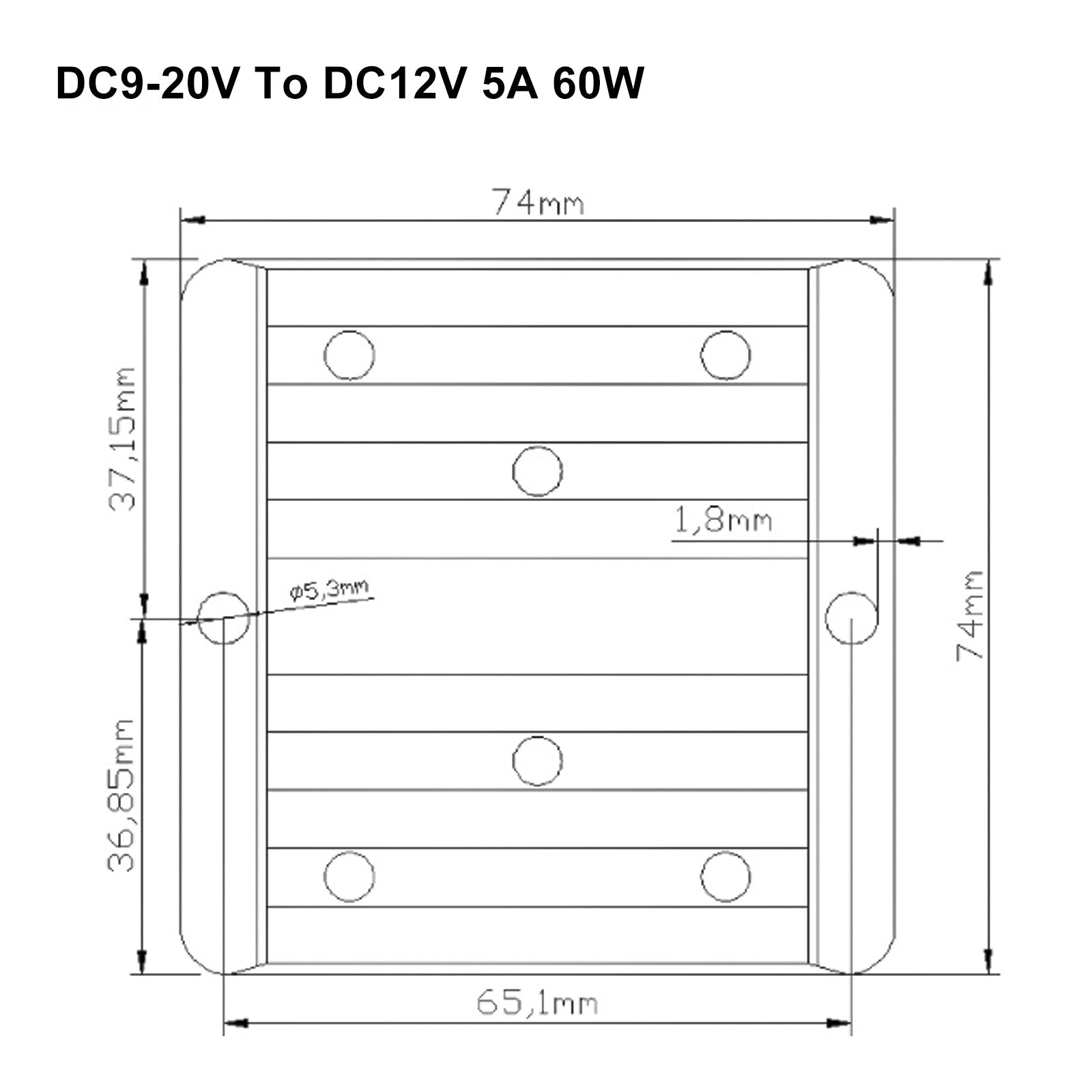

Size: 74 x 74 x 32 mm/2.91inches*2.91inches*1.26inches
Weight:approx.270g

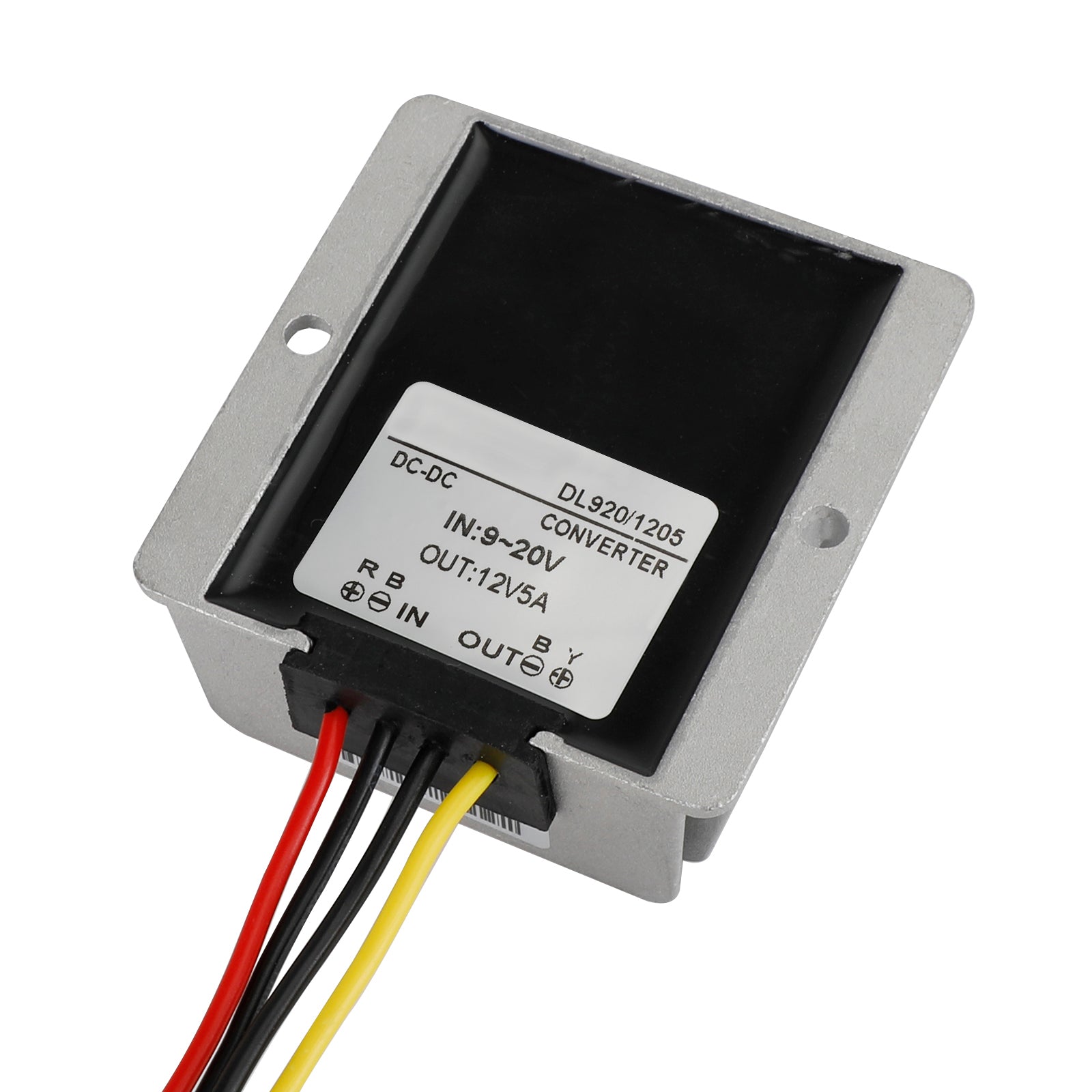

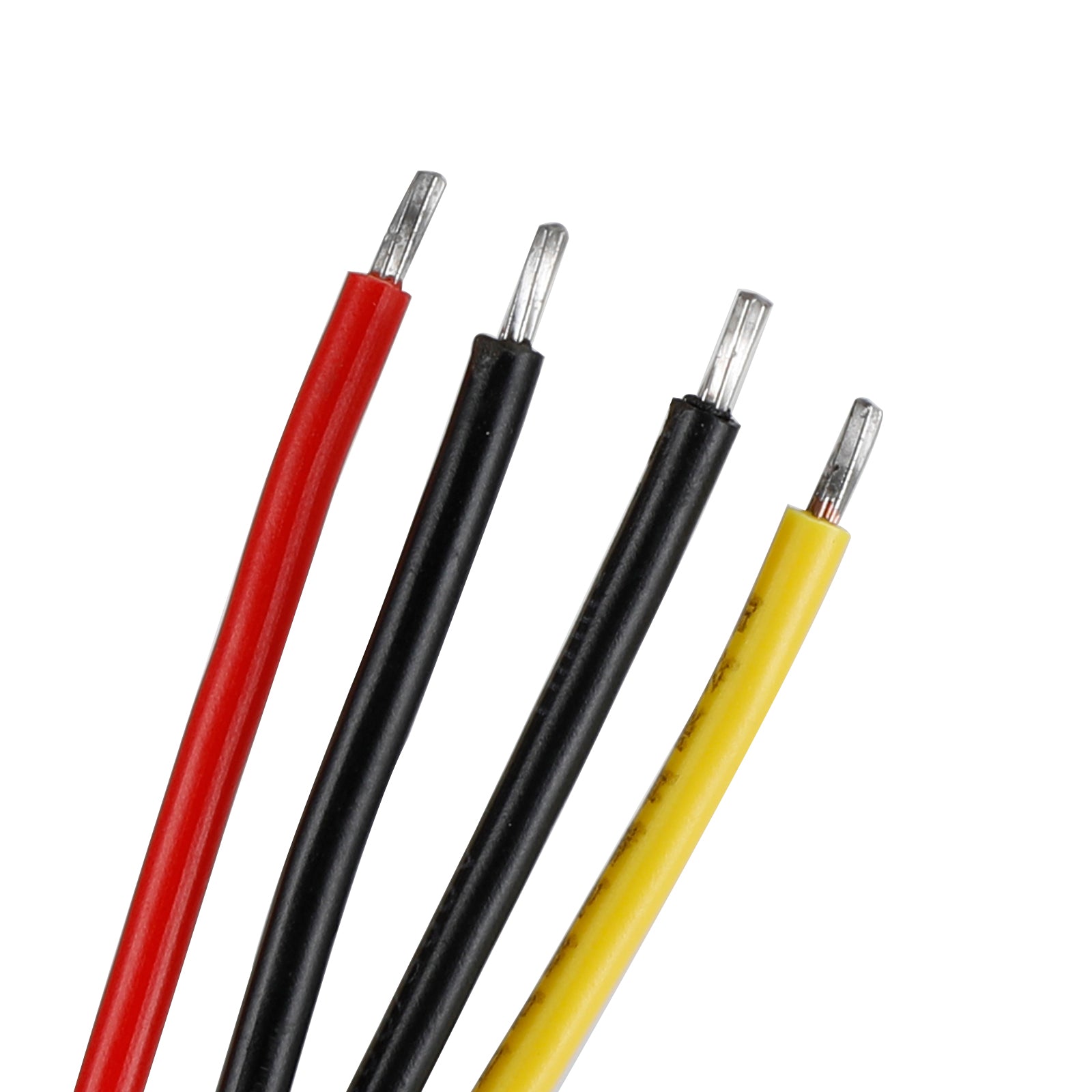

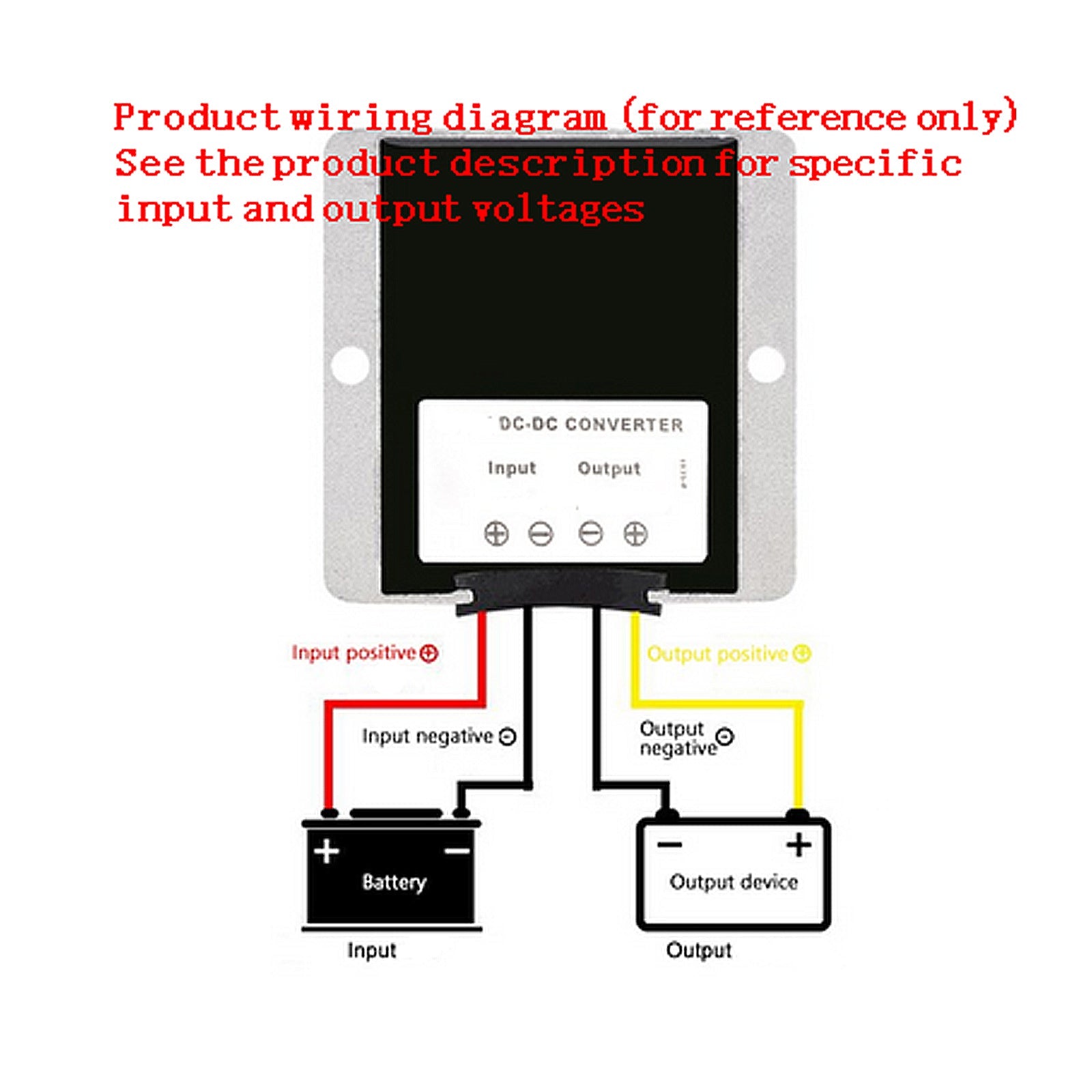

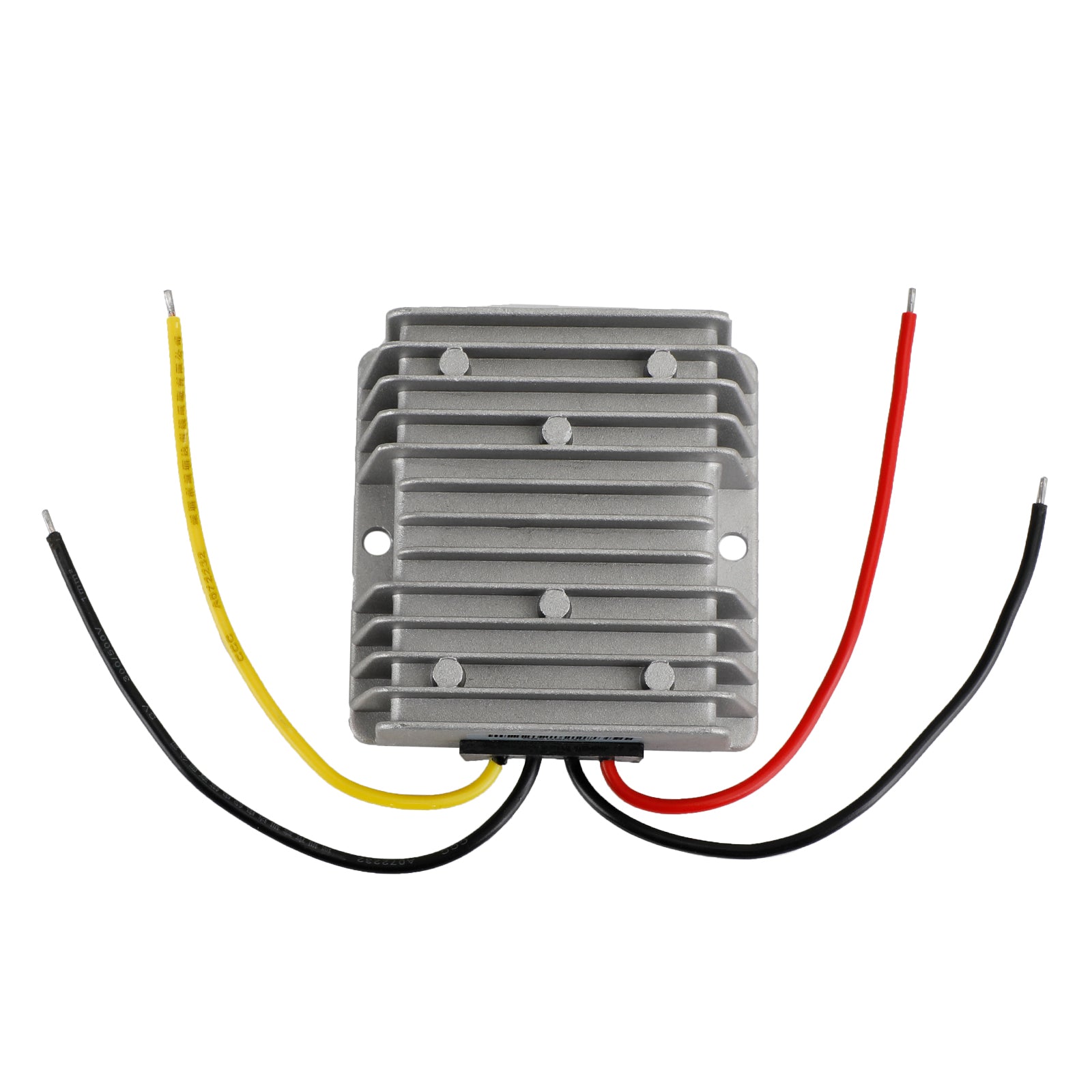

Input wire color : (+)Red, (-)Black.
Output wire color : (+)Yellow, (-)Black.
Note:
1.Please make sure there is sufficient input supply voltage and power,in order to ensure that the module can output enough voltage and power.
2.Please take with an average load, do not merge,if there are multiple output cables in the output port.
3.You need to pay attention to make the power module cool,if output is up to the maximum current value.
4.In strict accordance with characters wiring, fuse the input voltage polarity,must not reversed, or it may damage the power supply module, when the output voltage polarity is reversed, it may damage electrical equipment
Package Included:
1x DC-DC Converter
