Description
Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included
All products shipped are tested
Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC

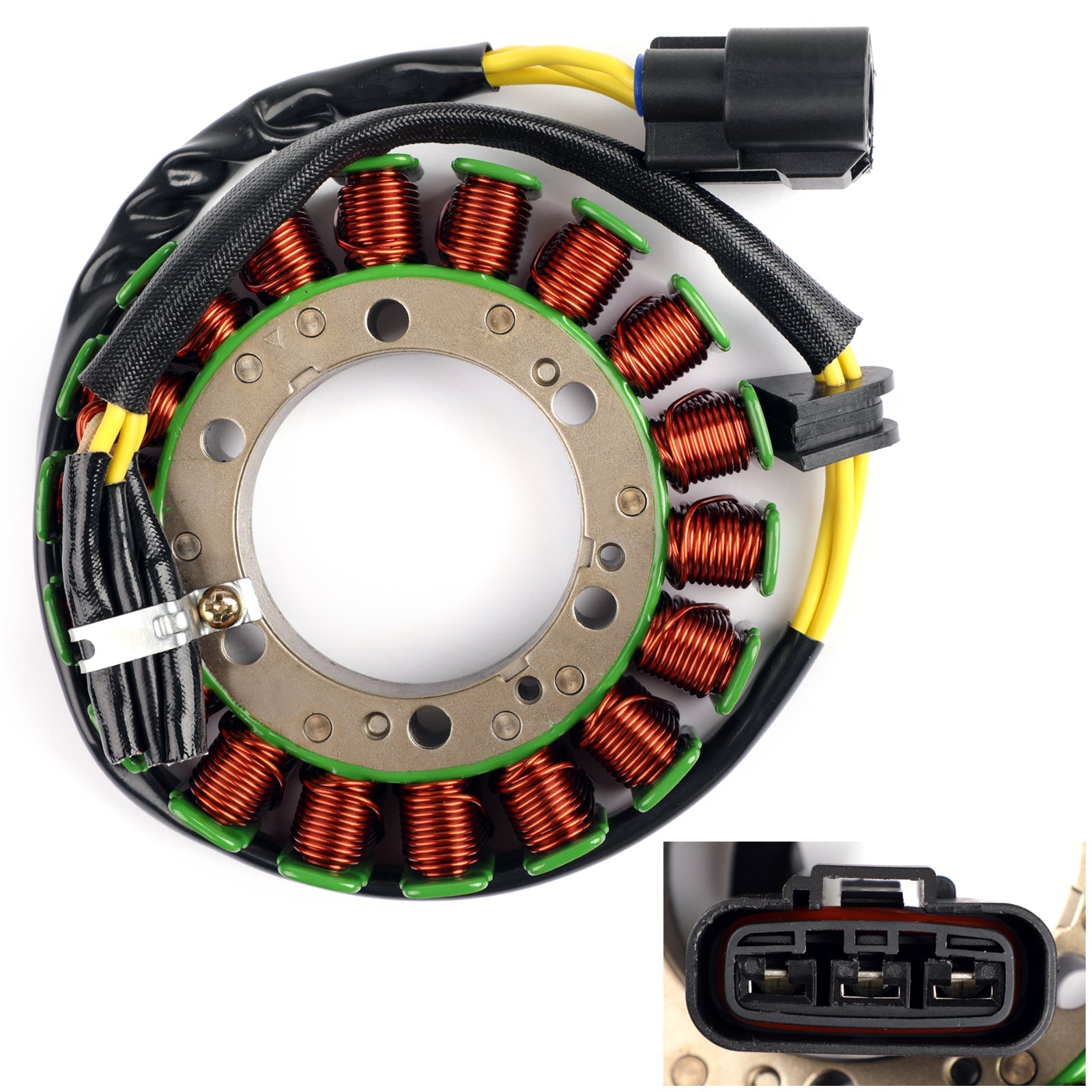

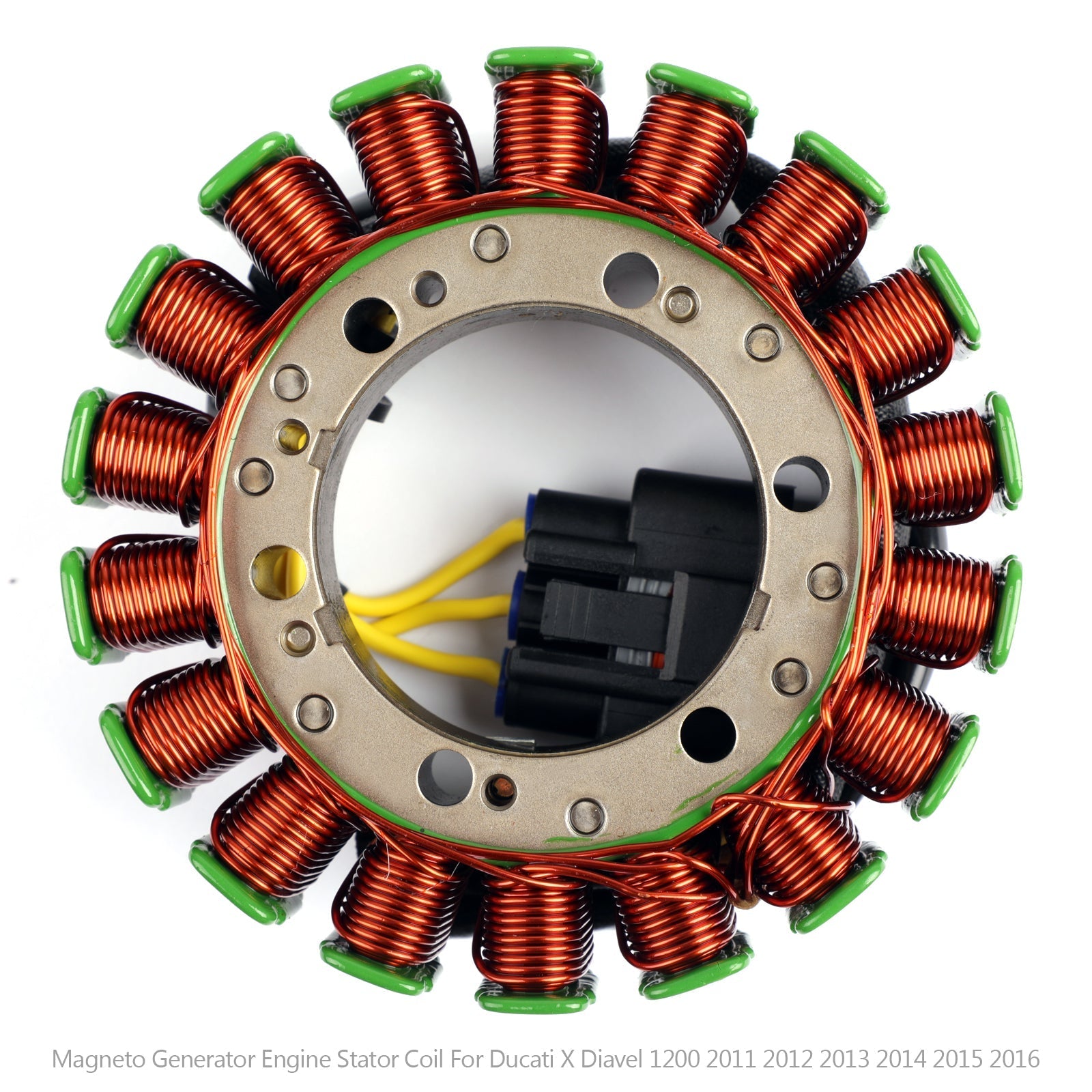

Type: Generator Stator Coil

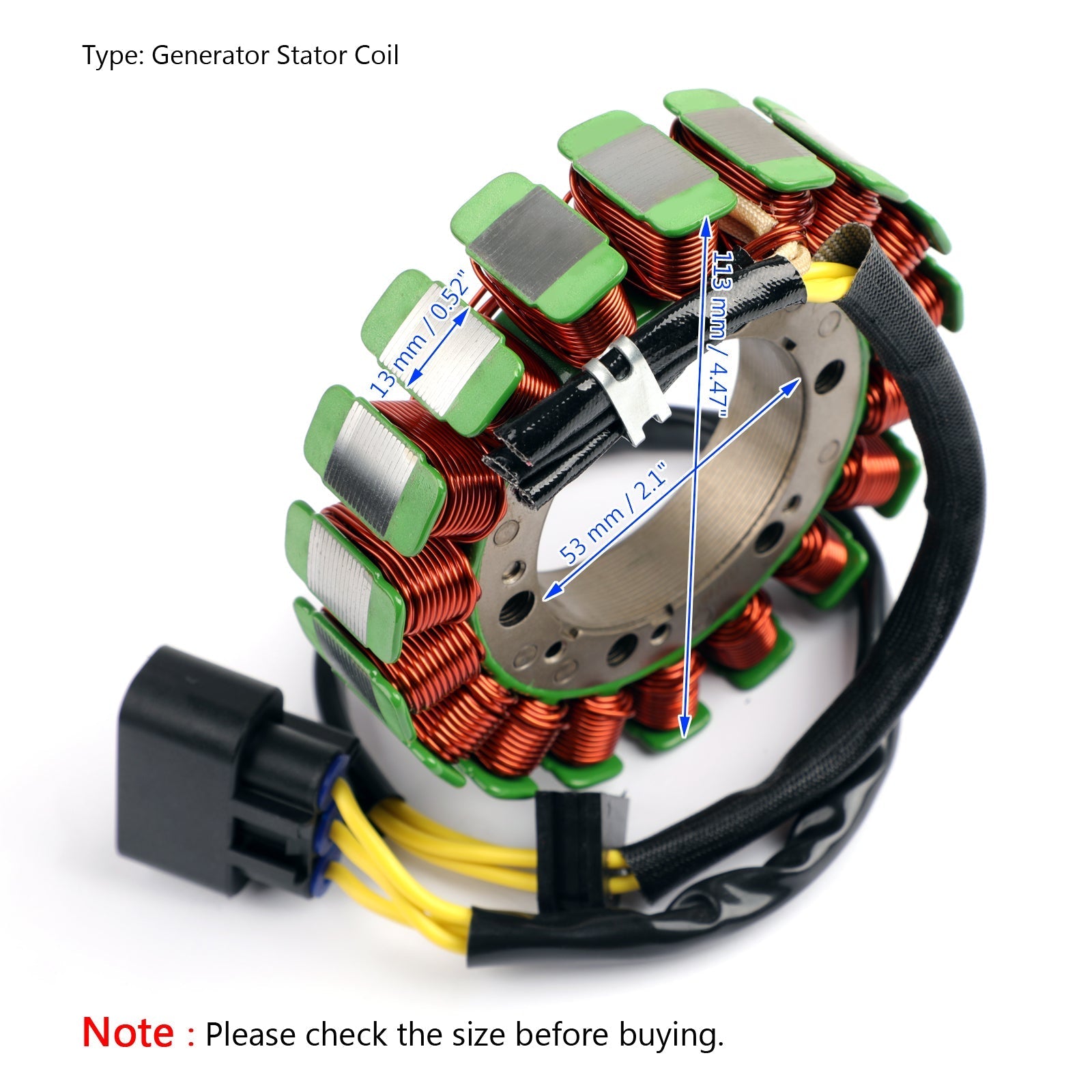

Dimensions :
Interior diameter : 53mm / 2.1in
Exterior diameter : 113mm / 4.47in
Thickness : 13mm / 0.52in
Other Specifications :
Number of wires : 3

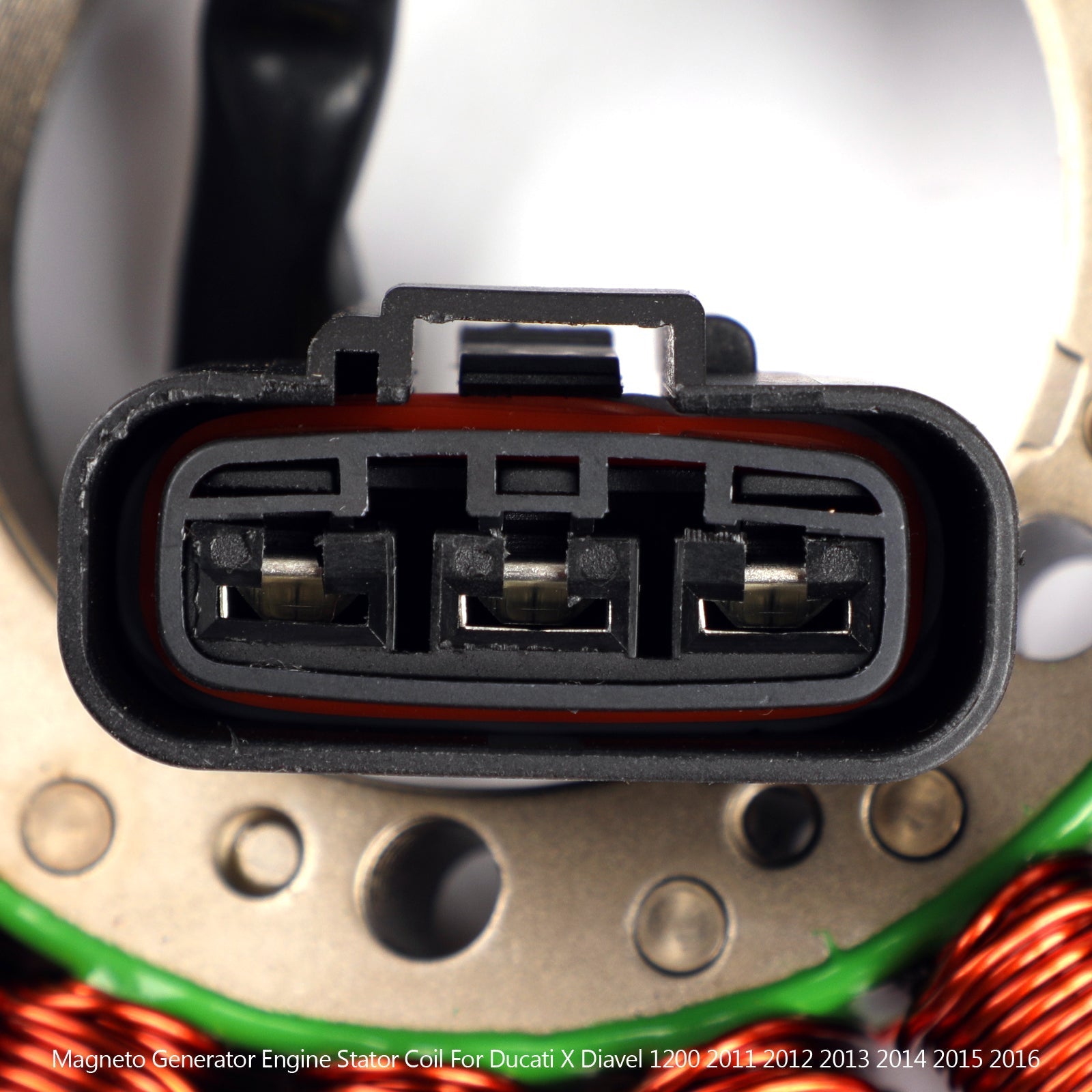

Number of pins : 3
Number of plugs : 1
Number of fixation holes: 6 (+2)
Replacement Part Number:
26420141A
Fitments:
Fit for Ducati Diavel AMG 2013
Fit for Ducati Diavel Cromo 2012
Fit for Ducati Diavel 1200 2011-2013
Fit for Ducati Diavel Carbon 2011-2012
(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)
Package includes:
1x Generator Stator Coil
NOTE:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
