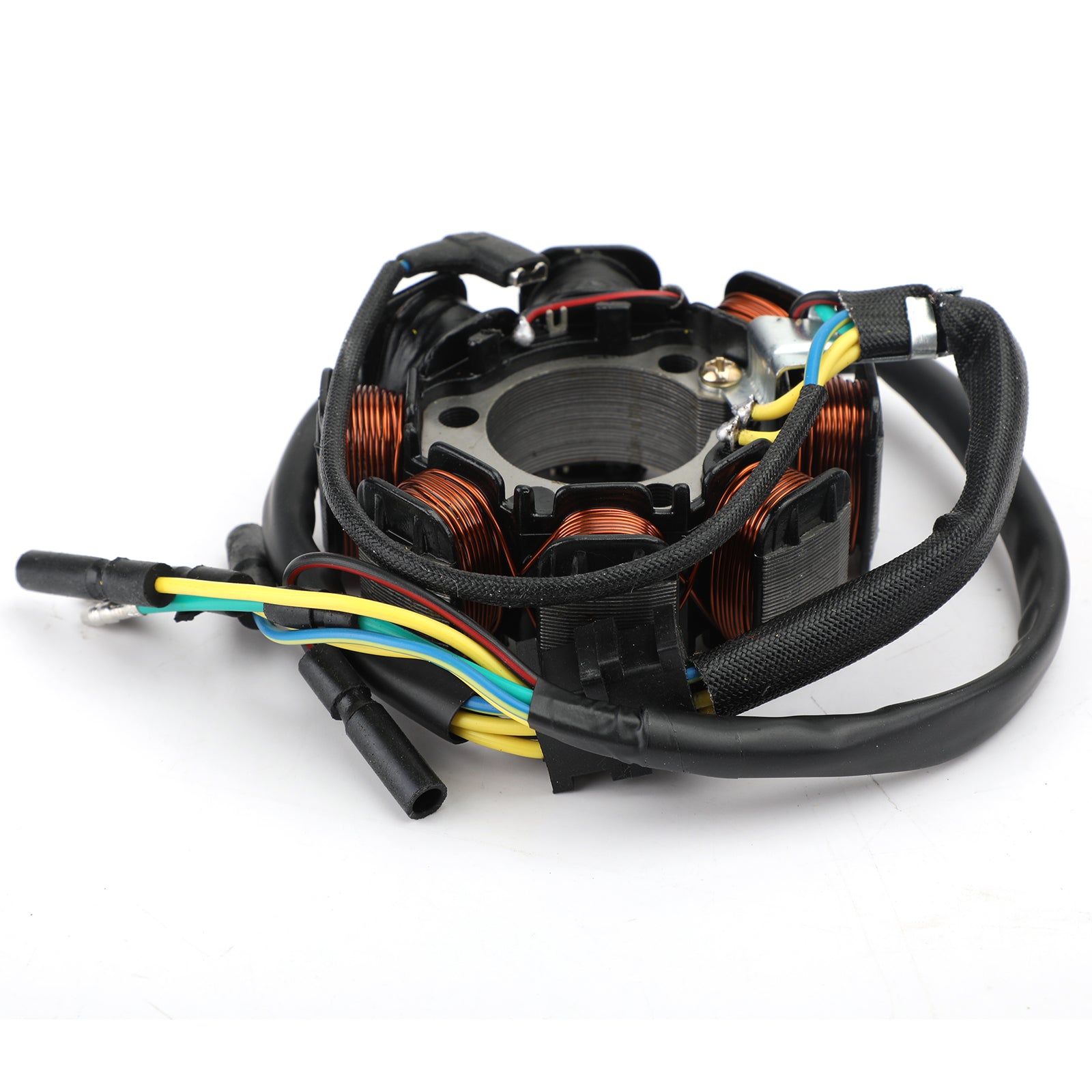

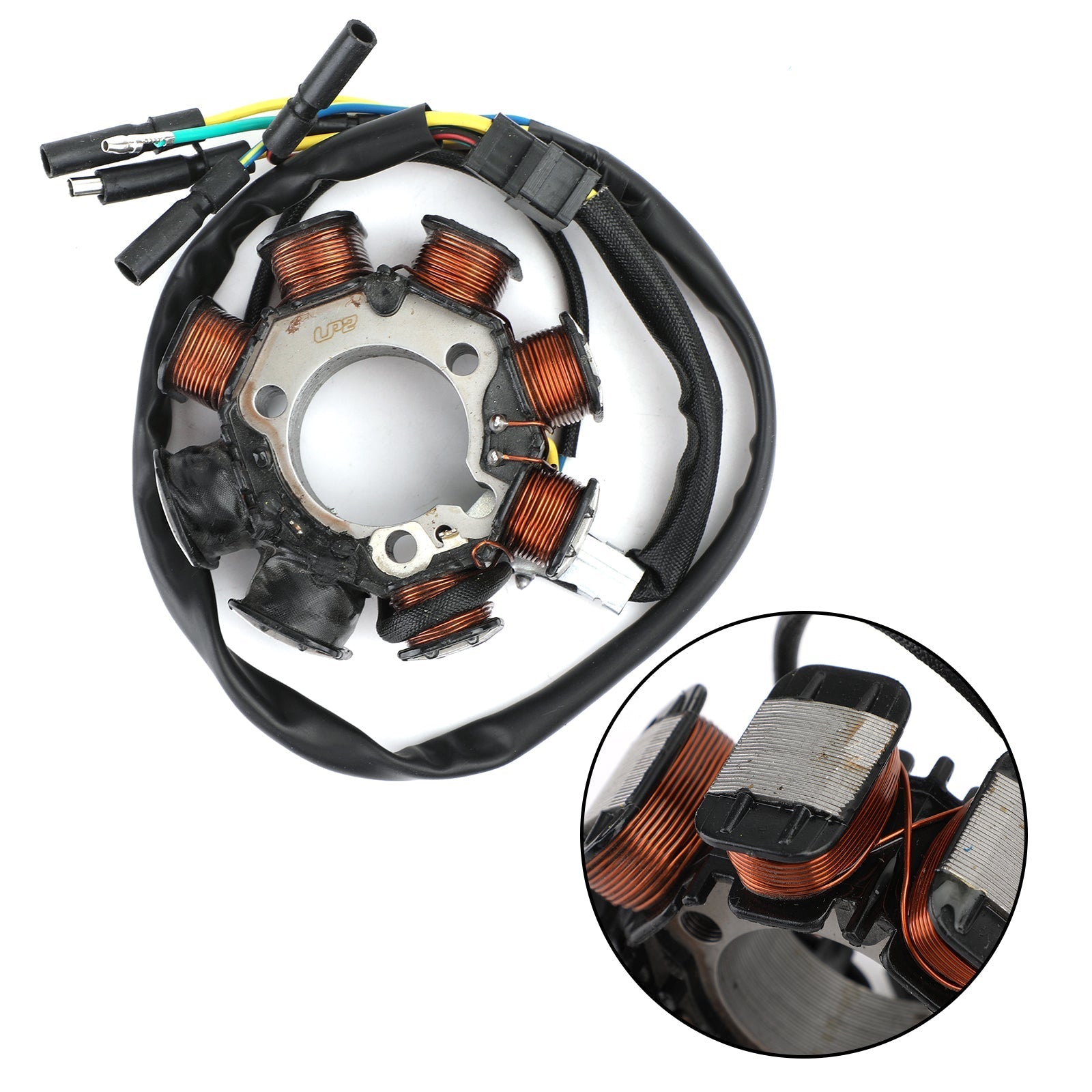

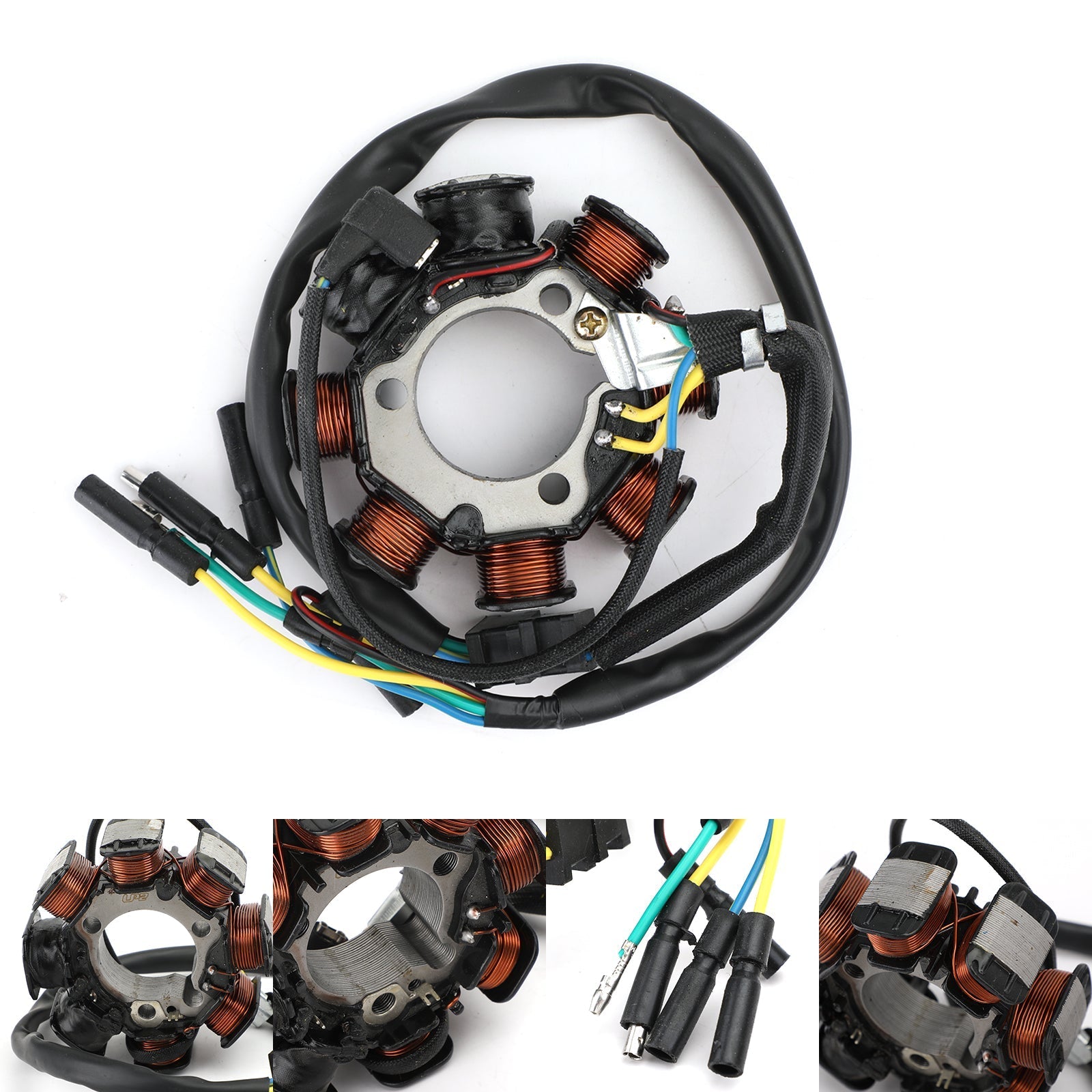

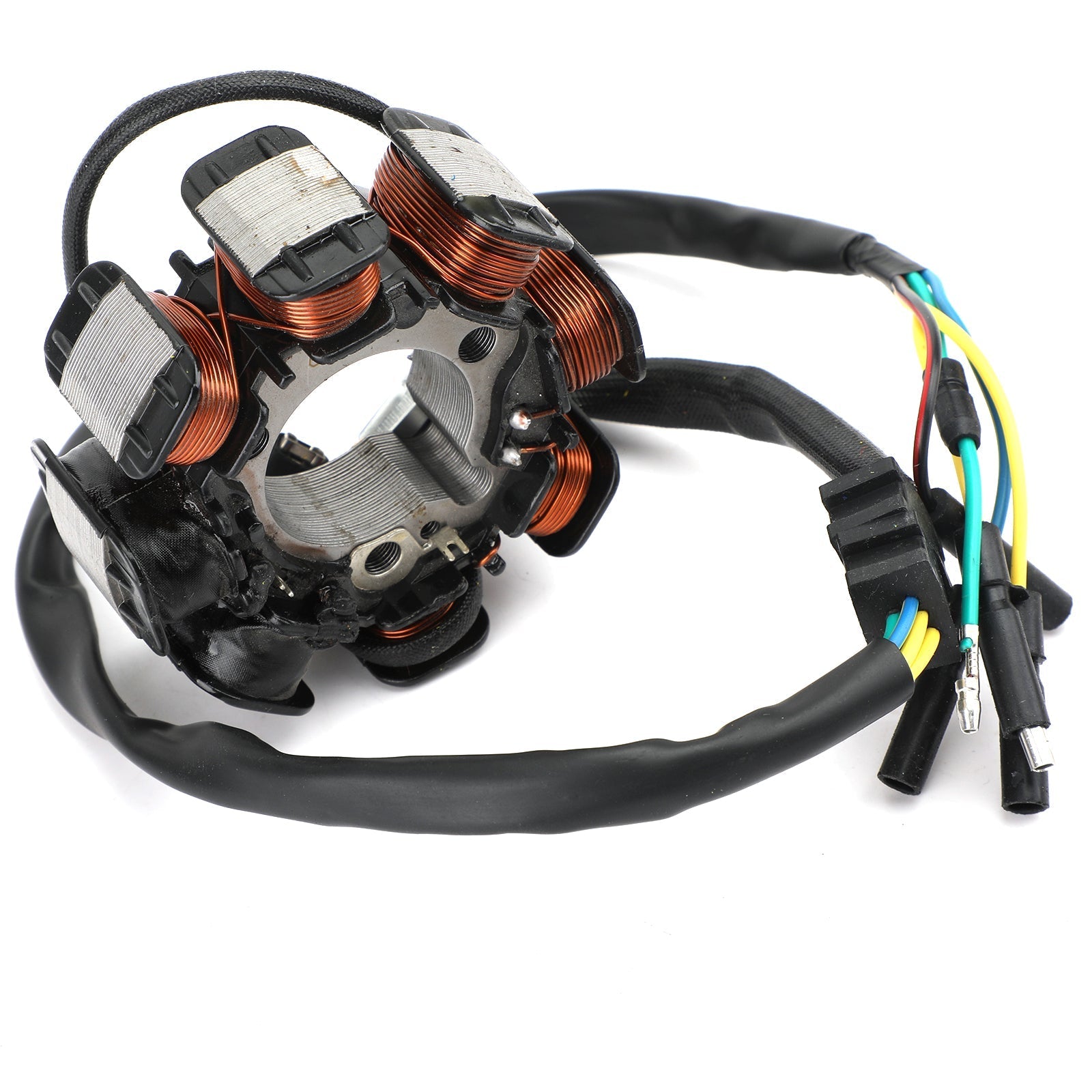

Magneto Stator Coil For Honda FourTrax 200 86-88 31120-HB3-004 31120-HB3-014 Generic

SKU: M550-A324

Price:
Sale price£32.78

Description

FEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:31120-HB3-004,31120-HB3-014

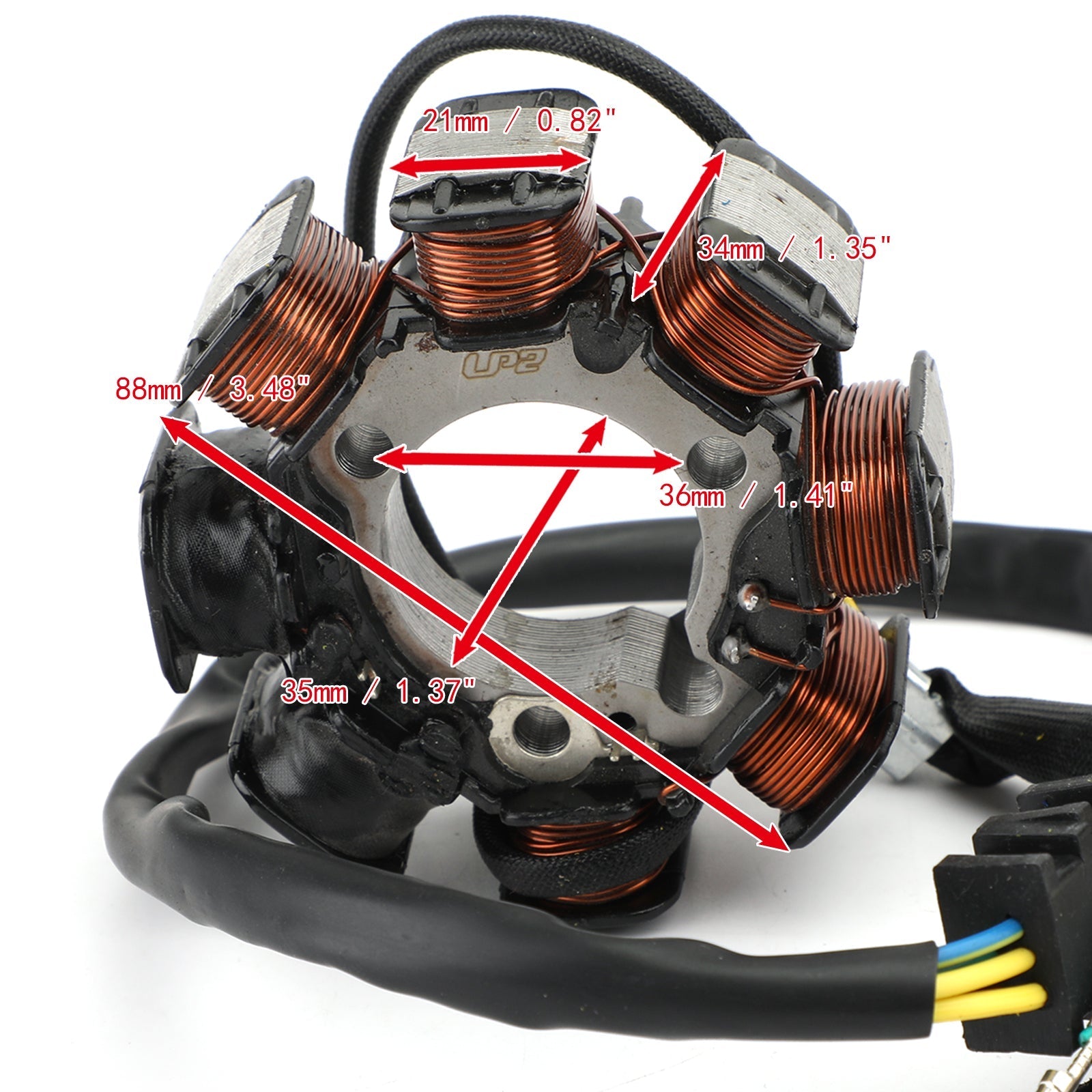

Dimensions :
Interior diameter : 35mm / 1.37"
Exterior diameter : 88mm / 3.48"
Pole's Thickness : 34mm / 1.35"
Pole's Width : 21mm / 0.82"

Other specifications :
Number of wires: 5
Number of pins: 6
Number of plugs: 6
Number of fixation holes: 3
Number of poles: 8
Fixation holes length: 36mm / 1.41"

FITMENT:
For Honda TRX200SX FourTrax 200 SX 1986-1988

Magneto Stator Coil For Honda FourTrax 200 86-88 31120-HB3-004 31120-HB3-014 Generic


PACKAGE INCLUDED:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.


Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
