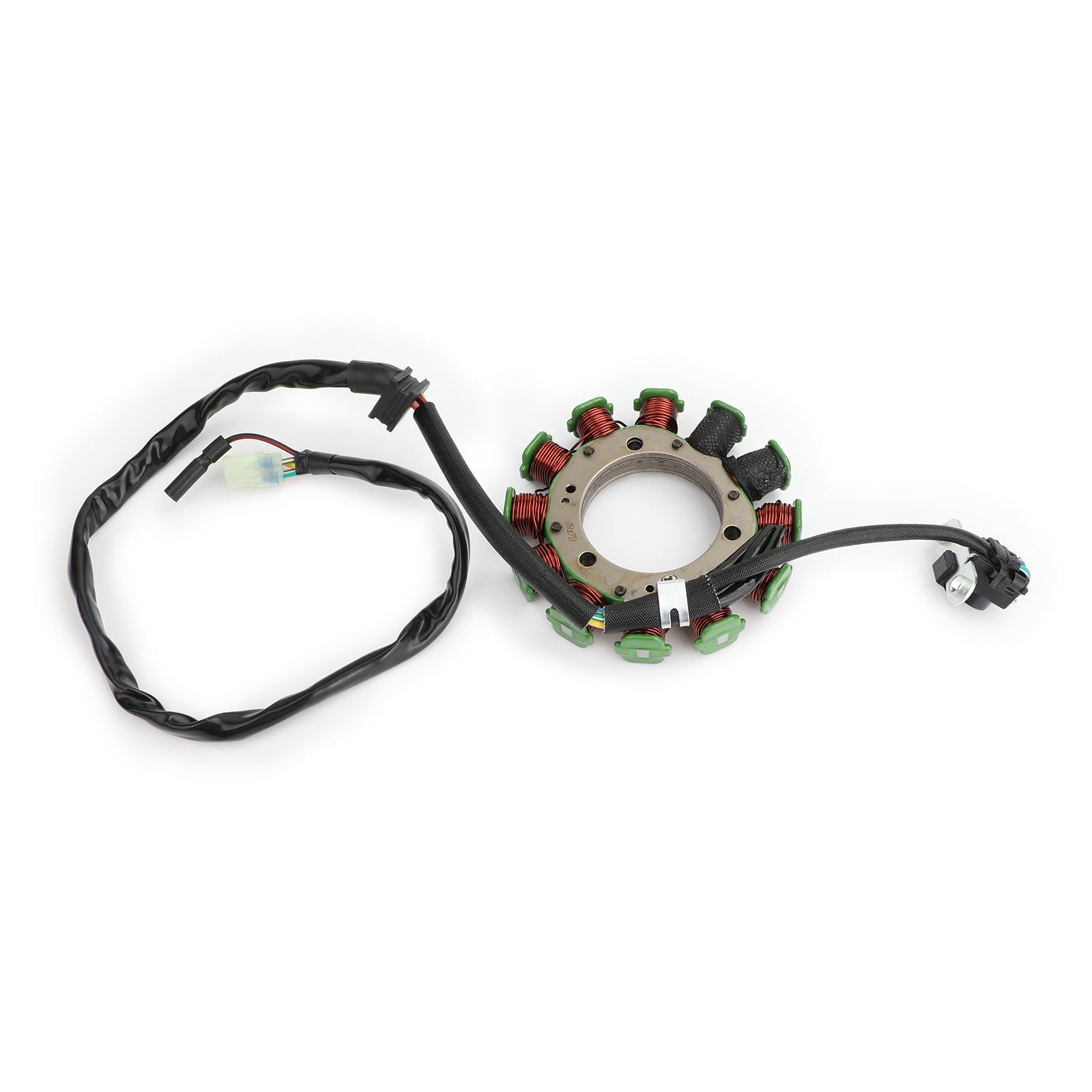

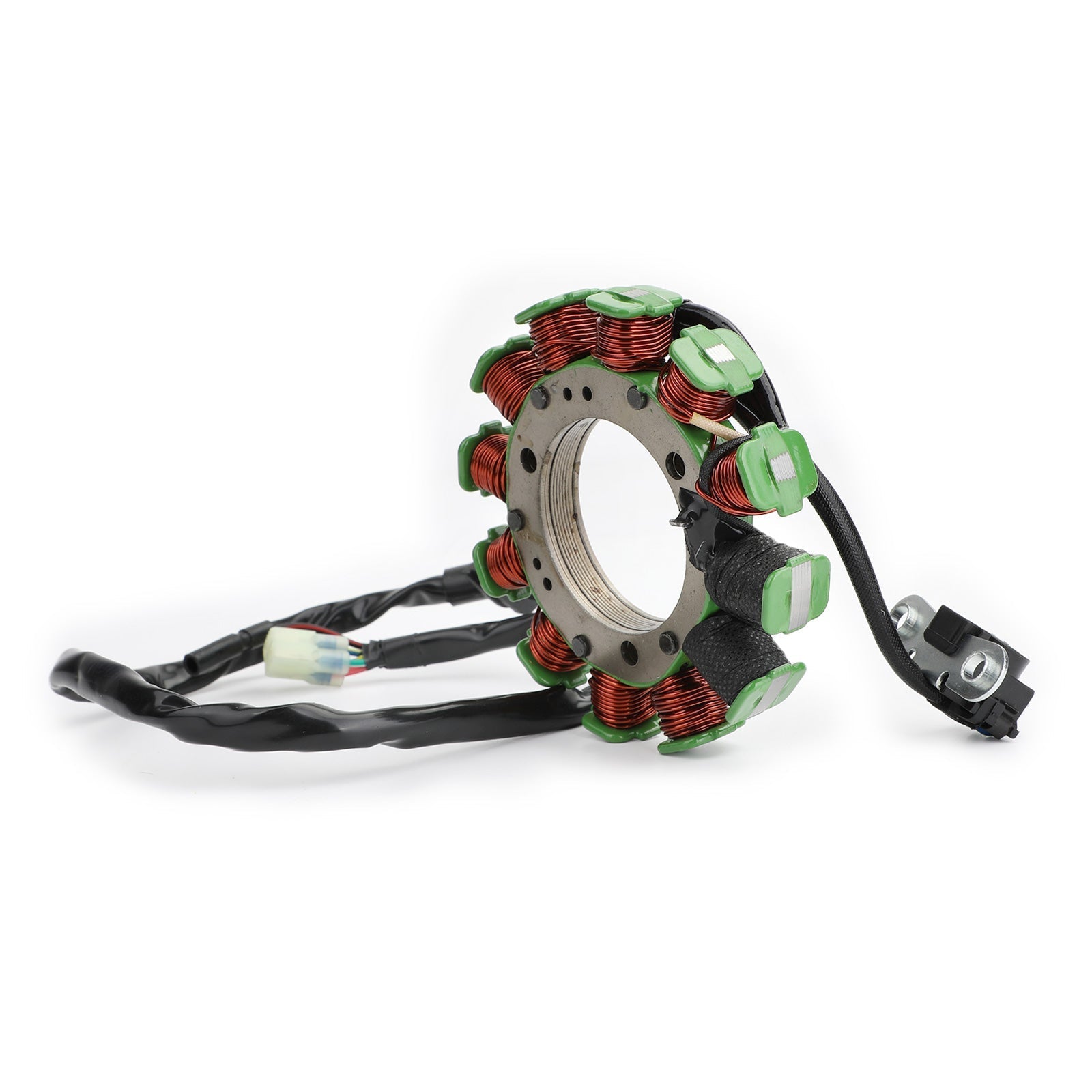

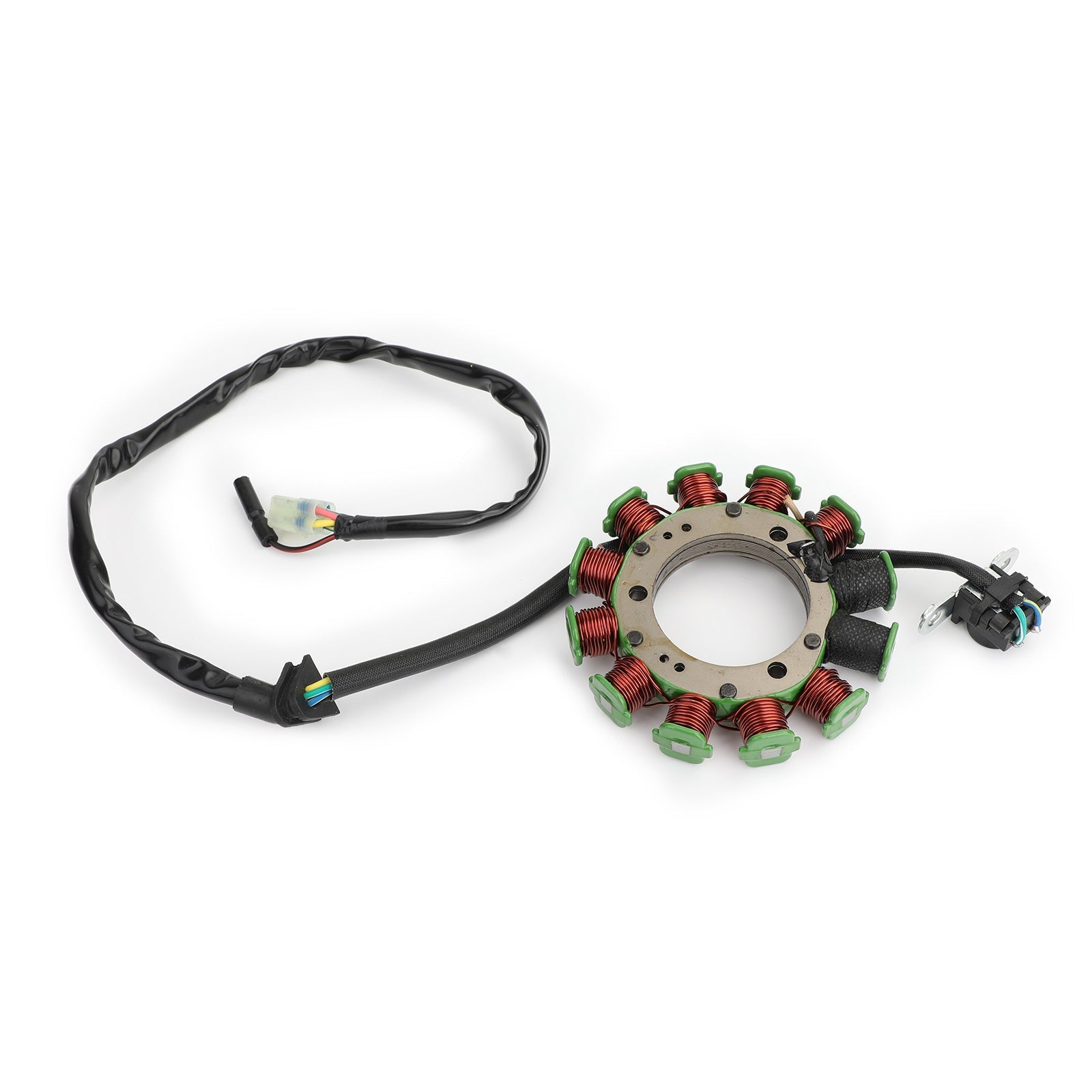

Magneto Stator Coil For Honda TRX400EX TRX400X Sportrax TRX 400 EX X 1999-2014 Generic

SKU: M550-A343

Sale price£31.78


Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.

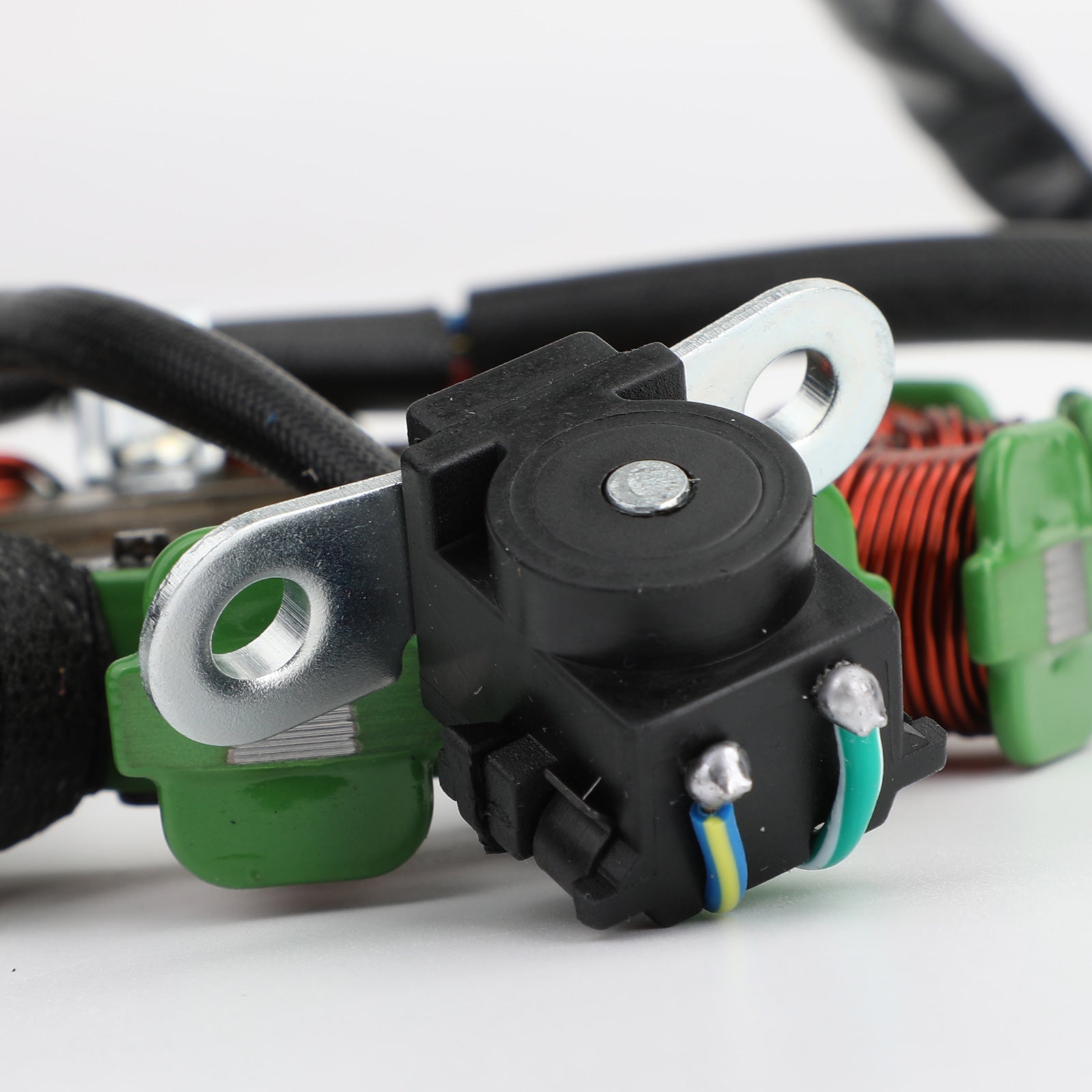

Pick up pulsar coil included.

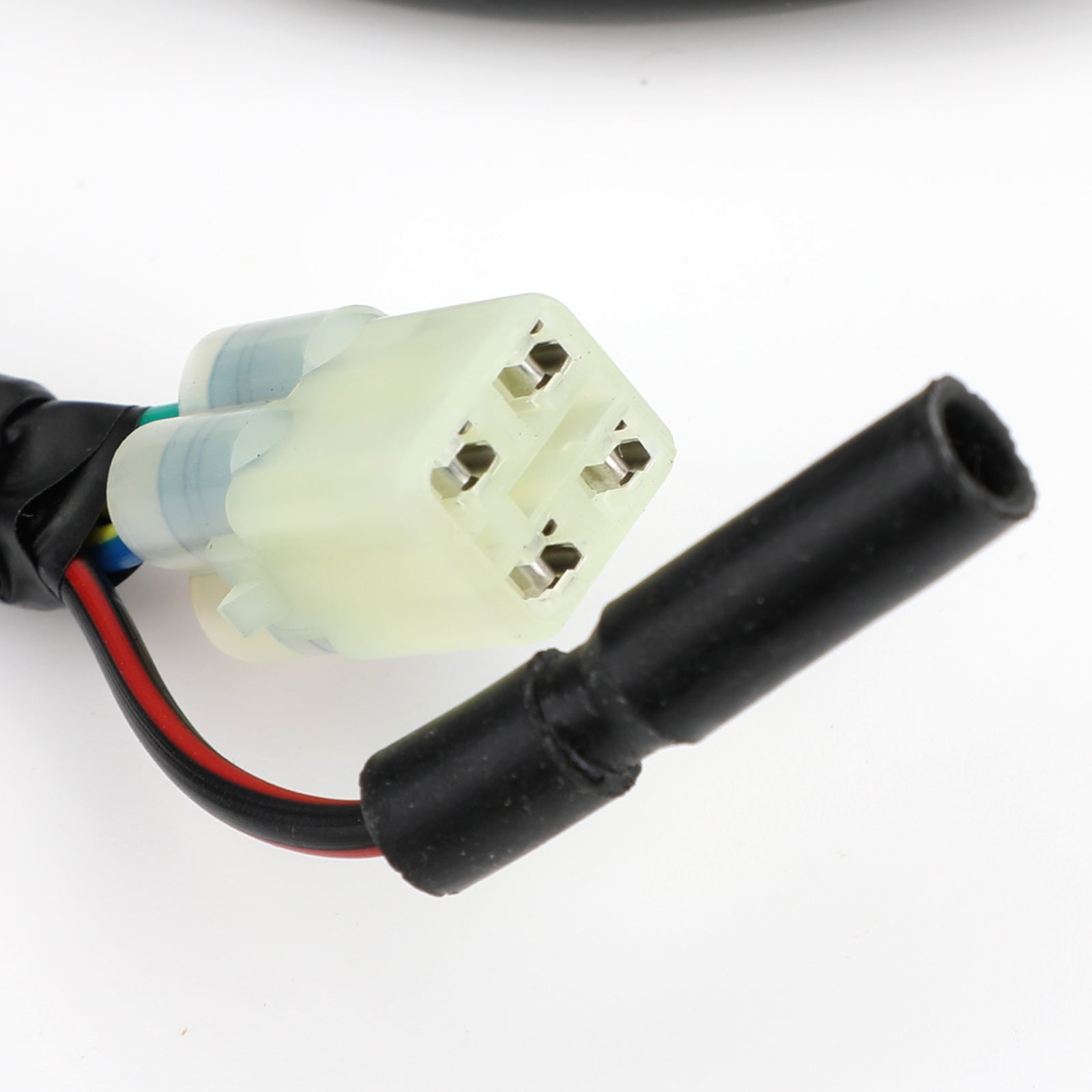

Connector included.
All products shipped are tested.

Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 31120-HN1-A41, 31120-HN1-003, 31120-HN1-000, 31120-HN1-A40

Dimensions :
Interior diameter : 53.6mm/2.11"
Exterior diameter : 114.5mm/4.50"
Pole's Thickness : 21.4mm/0.84"
Pole's Width : 21mm/0.82"

Other specifications :
Number of wires: 5
Number of pins: 5
Number of plugs: 2
Number of fixation holes: 3(+2)
Number of poles: 12

For Honda TRX400 Sportrax 400 EX 2002-2008
For Honda TRX400 Sportrax 400 X 2009
For Honda TRX400 TRX 400 EX 1999-2001/2004/2006-2008
For Honda TRX400 TRX 400 X 2009-2014

1x Generator Stator Coil

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
