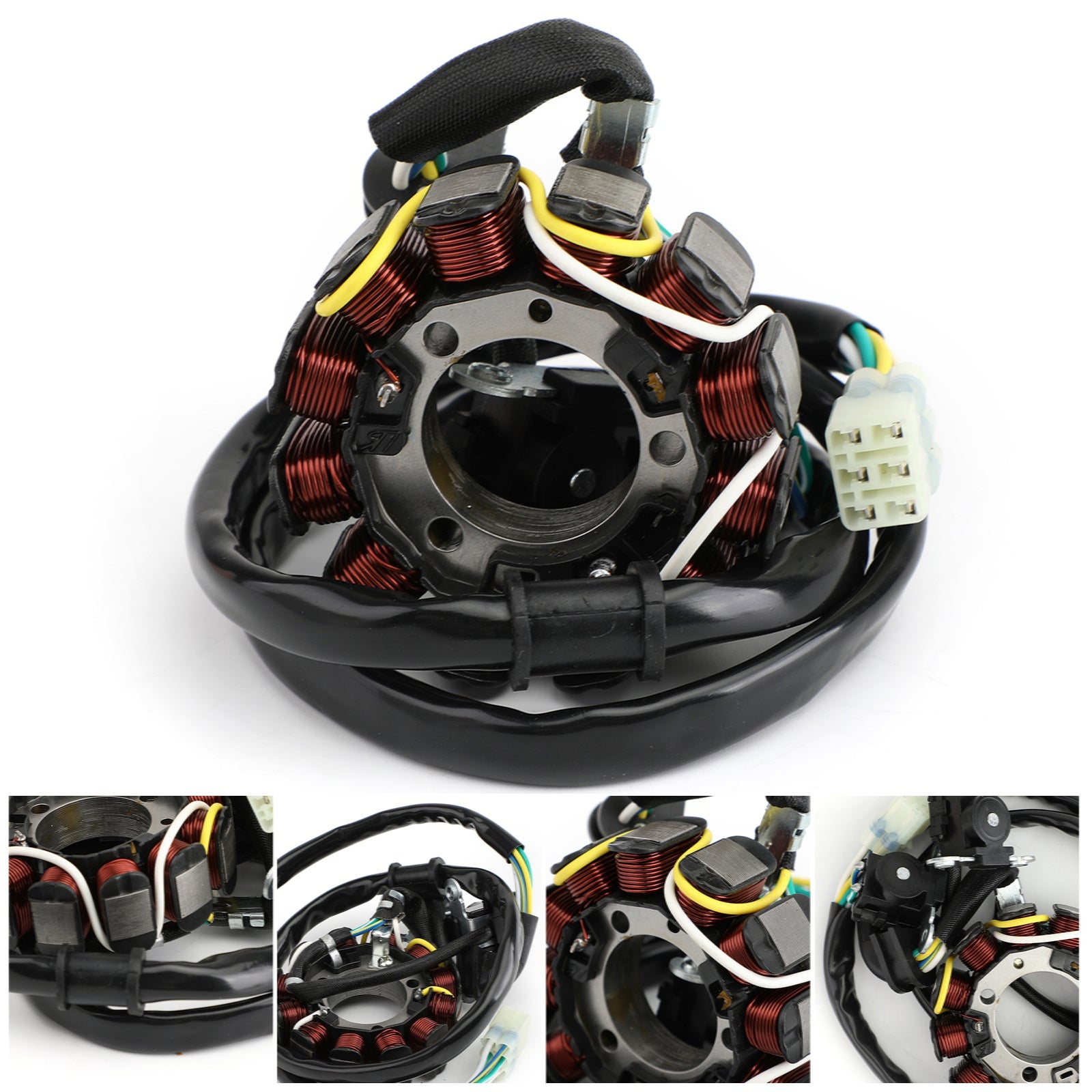

Magneto Stator Coil For Honda CRF450 CRF 450 R 13-14 Off-Road Ref 31120-MEN-A71 Generic

SKU: M550-A360

Sale price£41.78


Magneto Generator Engine Stator Coil For Honda CRF 450 CRF450R Off-Road 2013-2014 31120-MEN-A71

Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Pick up pulsar coil included.
Connector included.
All products shipped are tested.

Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 31120-MEN-A71

Dimensions :
Interior diameter : 31.8mm / 1.25"
Exterior diameter : 76.5mm / 3.01"
Pole's Thickness : 24.8mm / 0.97"
Pole's Width : 13.4mm / 0.52"

Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 1
Number of fixation holes: 3
Number of poles: 12

For Honda CRF450 CRF450R 2013-2014

1x Generator Stator Coil

Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
