Stator Alternator Fit for Kawasaki W400/SE W650 EJ650 1999-2008 21003-1384 Generic

SKU: M550-A525

Price:
Sale price£43.78

Description

Magneto Generator Engine Stator Coil Fit for Kawasaki W 400 650 EJ 400 650 1999-2008

Features:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil

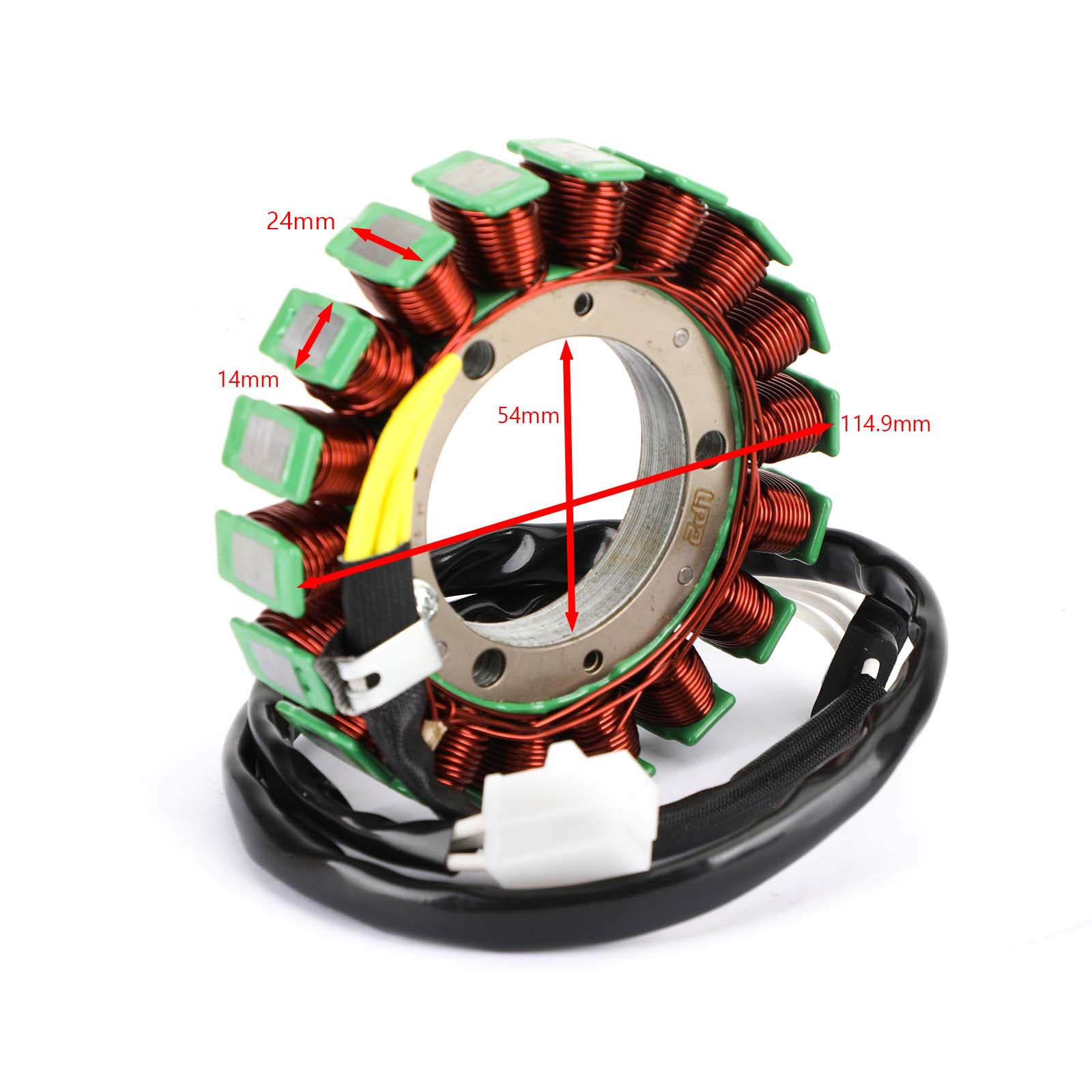

Dimensions :
Interior diameter : 54mm
Exterior diameter : 114.9mm
Pole's Thickness : 24mm
Pole's Width : 14mm

Other Specifications :
Number of wires: 3
Number of pins: 3
Number of plugs: 1
Number of fixation holes: 3(+3)
Number of poles: 18

Replacement Part Number:
21003-1348
21003-1384

Fitments:
Fit for Kawasaki EJ400 W400 2006-2008
Fit for Kawasaki EJ400 Special Edition W400 2007-2008
Fit for Kawasaki EJ650 W650 1999-2008

(Compatibility Chart is for Reference ONLY!!!)
(Please Compare with Your faulty unit and the image we provided to Decide Fitments)

Package Included:
1x Generator Stator Coil

NOTICE:
Before installing your new stator

Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.

All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.


Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
