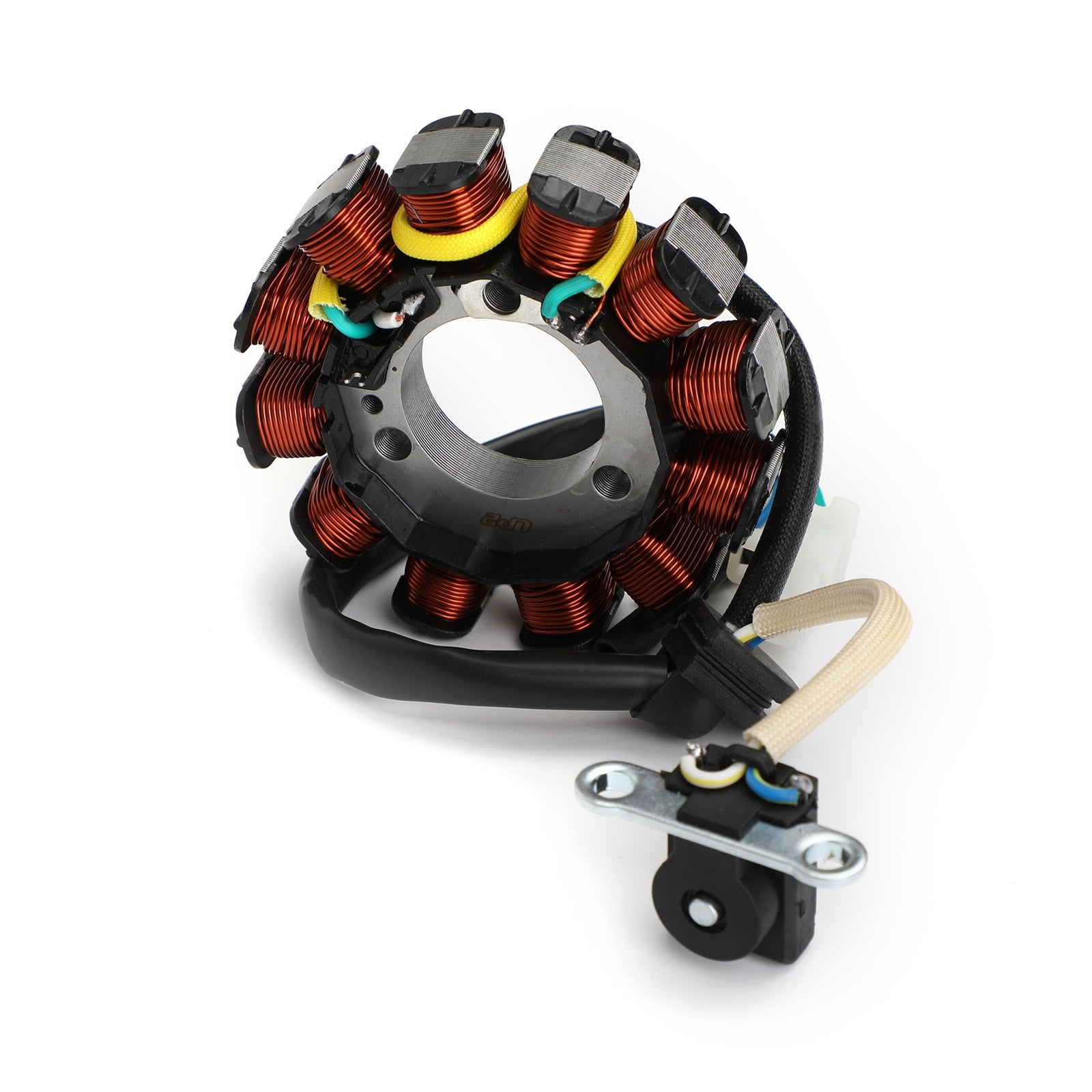

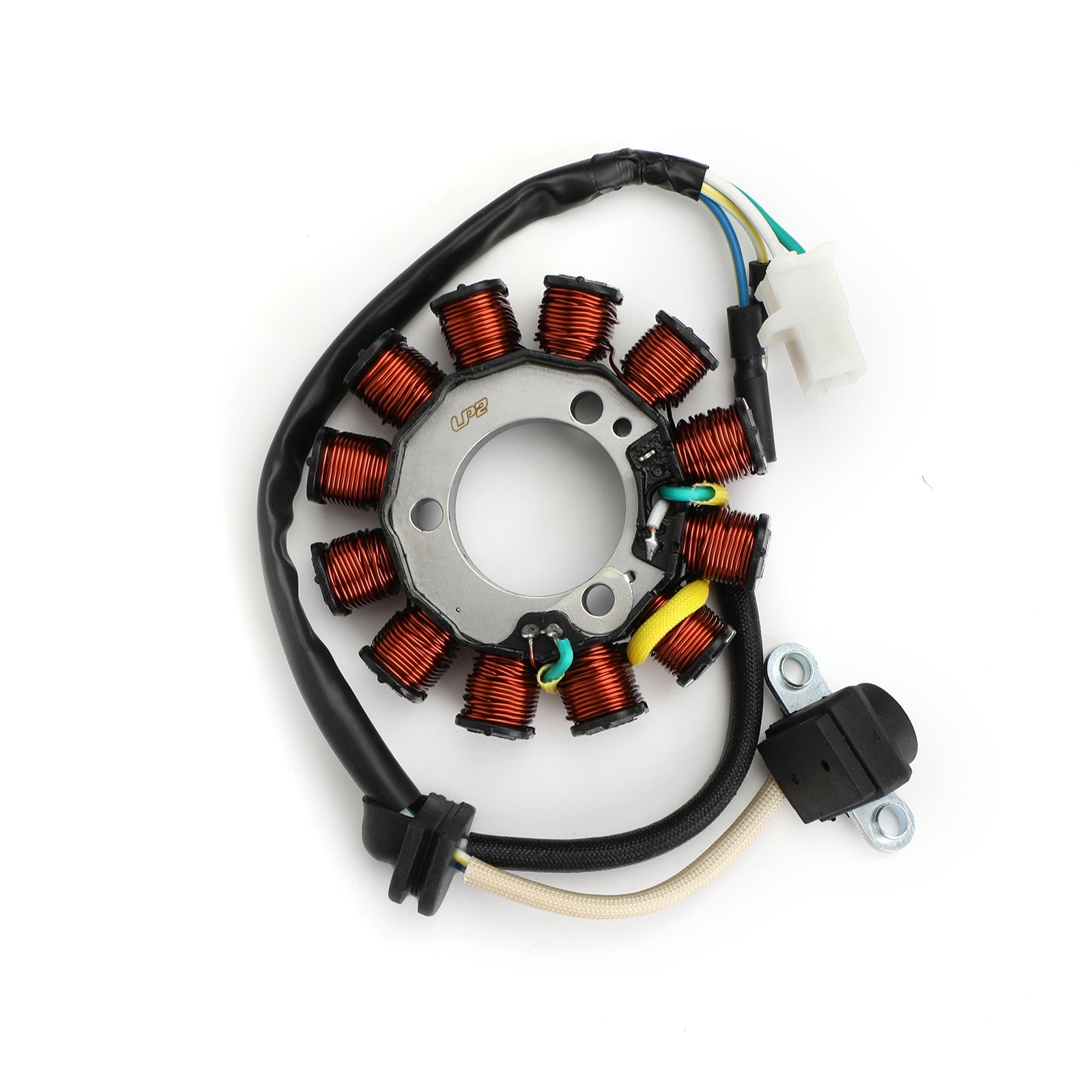

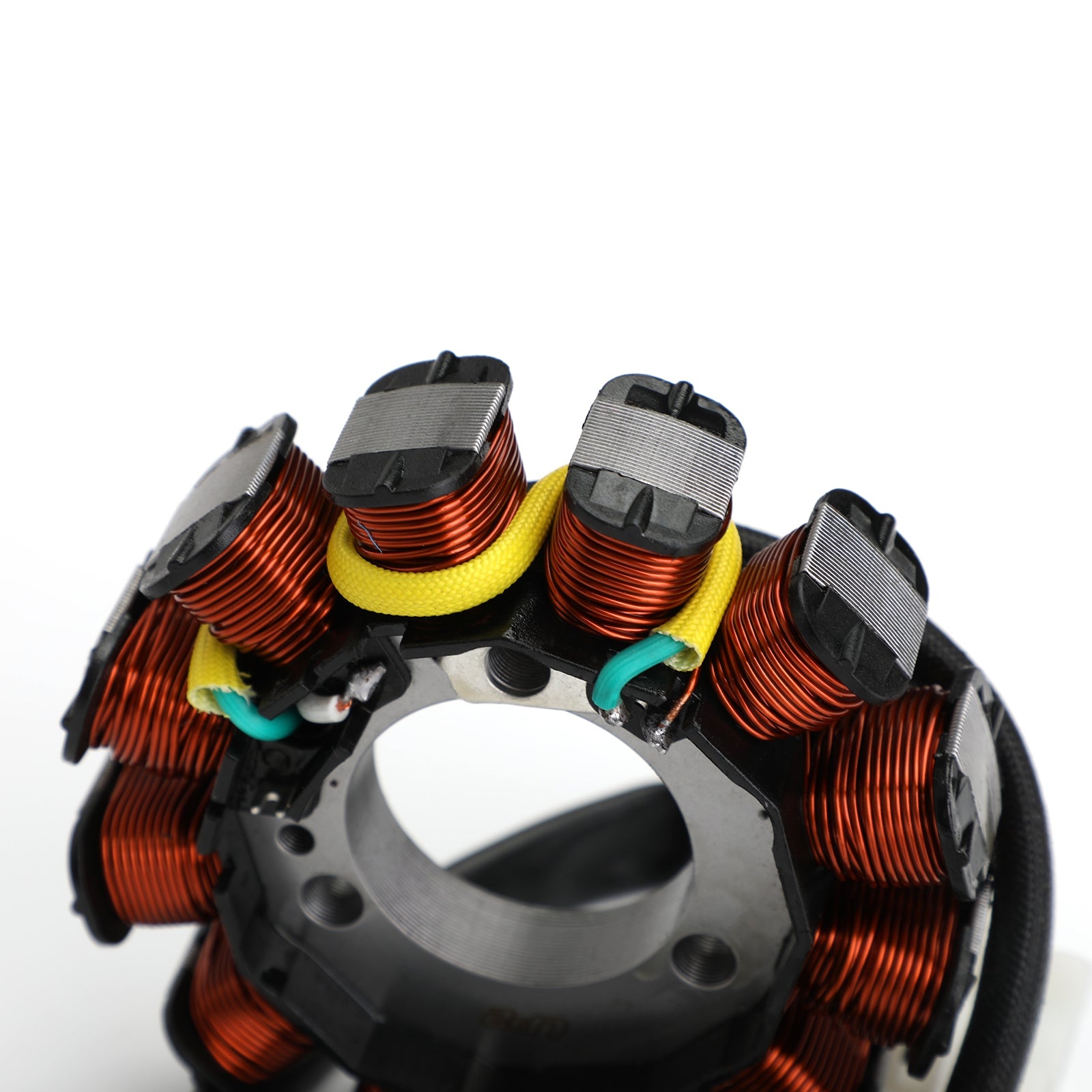

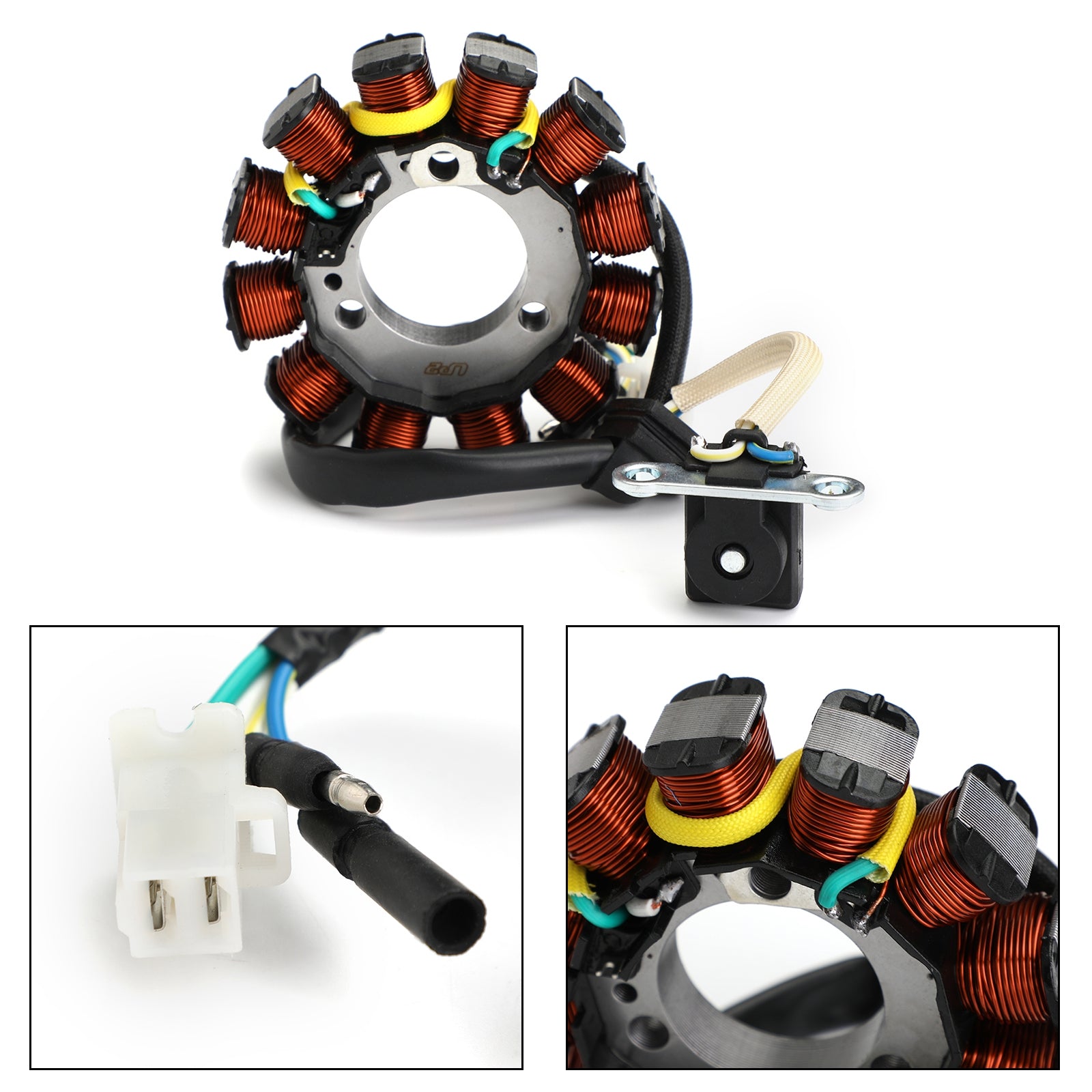

2008-2015 Honda CBF125 Stator Magneto Generator 31120-KWF-941 Generic

SKU: M550-A373~HWP

Price:
Sale price£36.88

Description

Features:
1.Direct replacement to your original unit
2.Plug-and-play, direct fit, easy installation.
3.Highest grade lamination materials.
4.Highest grade copper windings, resistant to 200 degrees Celsius.
5.Pick up pulsar coil included.

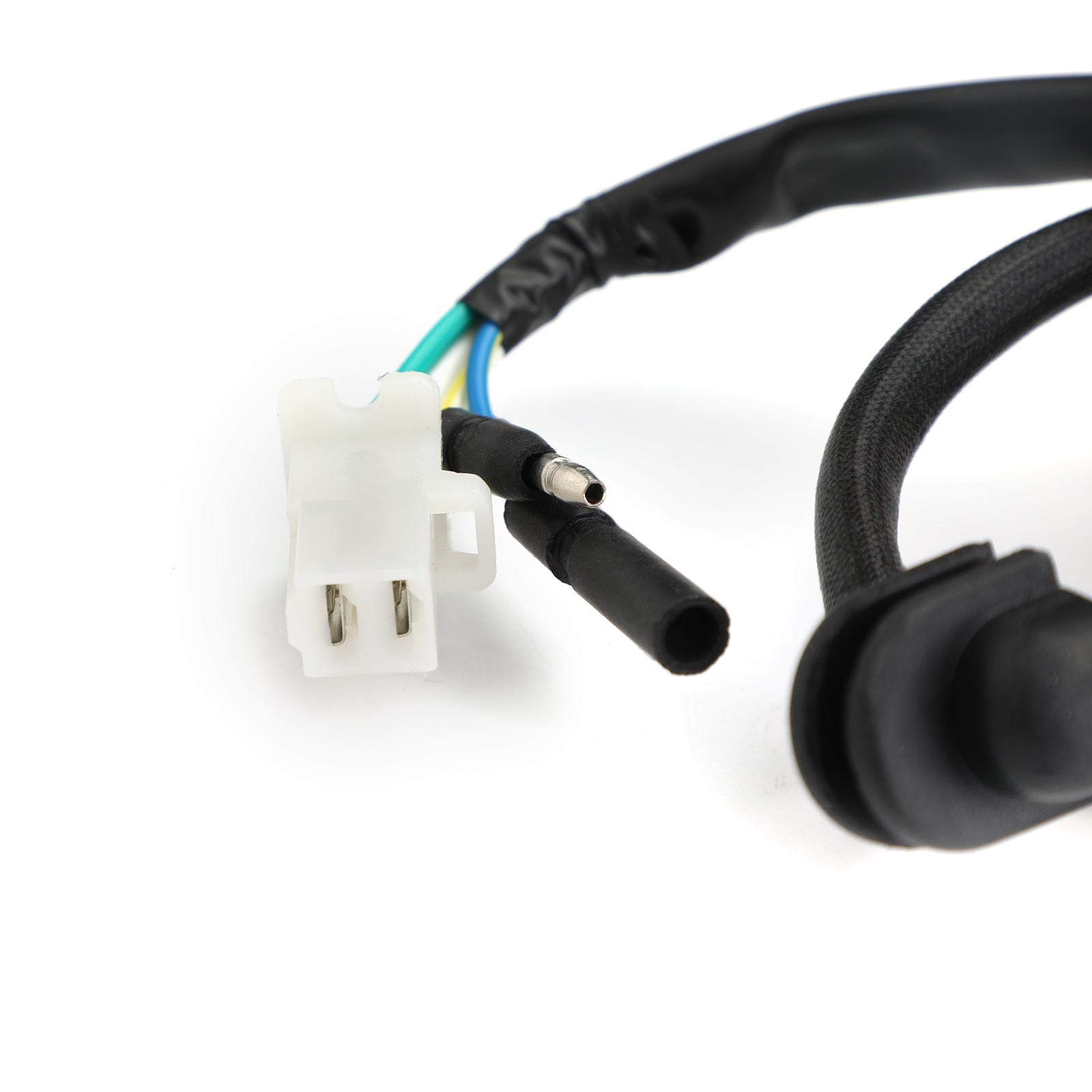

6.Connector included.
7.All products shipped are tested.

Specifications:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number: 31120-KWF-941
Note: Please check the Manufacturer Part Number before ordering.

Dimensions:
Interior diameter : 35mm / 1.37"
Exterior diameter : 92.6mm / 3.64"
Pole's Thickness : 25mm / 0.98"
Pole's Width : 15.1mm / 0.59"

Other specifications:
Number of wires: 4
Number of pins: 4
Number of plugs: 3
Number of fixation holes: 3
Number of poles: 12

Applicable Models:
Fits Honda CBF125 2008-2015

Product Size Chart:


Please note:
Before installing your new stator
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.
All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.

Package Included:
1x Generator Stator Coil
