Description
Voltage Regulator Rectifier Fit for Suzuki DF 40 50 Hp 99-04 Outboard
Features:
Direct replacement to your original unit.
Plug-and-play, direct fit, easy installation.
No assembly required.
Higher grade of electric components.
Improved heat sink and charging capabilities.
The quality exceeds or meet the OEM equipment.
All products shipped are tested.
Specifics:
Condition: Aftermarket 100% Brand New
Quanity: 1 PC
Type: Voltage Regulator Rectifier

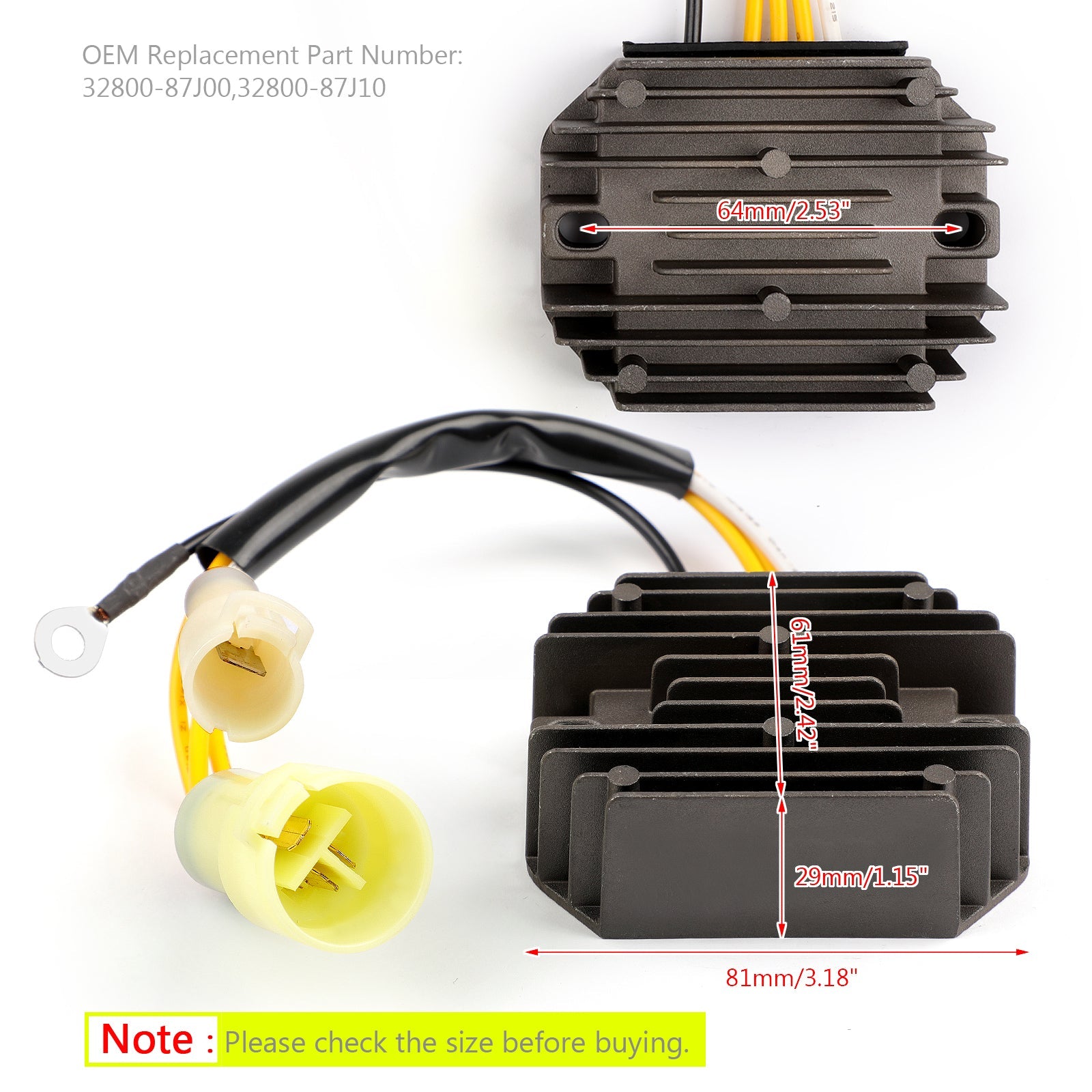

Dimensions :
Width : 61mm / 2.42"
Length : 81mm / 3.18"
Height: 29mm / 1.15"
Fixation holes center to center : 64mm / 2.53"
Other Specifics:

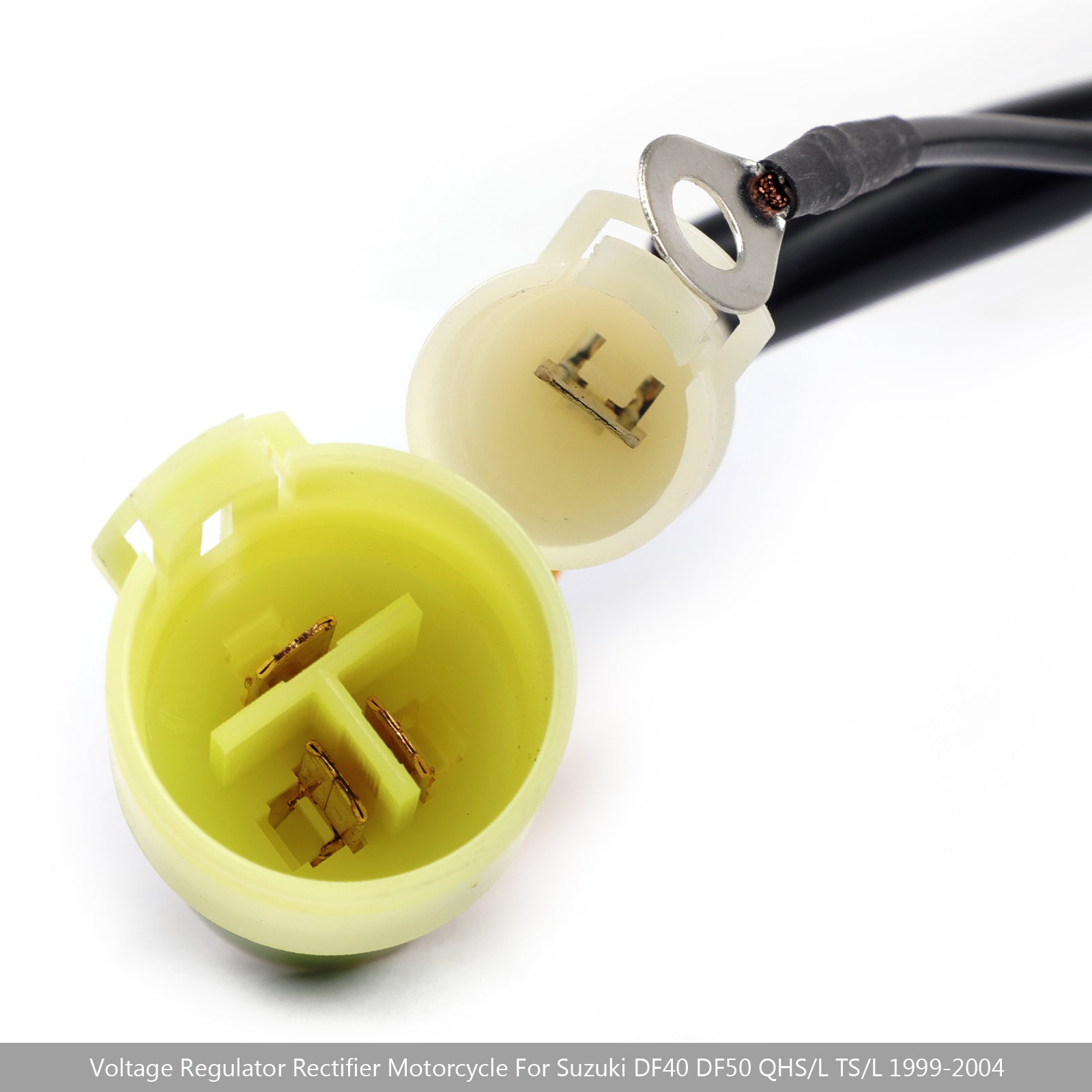

Number of plug interface pins: 5
Number of wires:5
Number of Plug:3
Replacement Part Number:
32800-87J00
32800-87J10
5032615
Fitment:
Fit for Suzuki DF40 QHS/L; TS/L 1999-2004
Fit for Suzuki DF50 QHS/L; TS/L 1999-2004
Fit for Johnson Evinrude 40HP 2001-2004
Fit for Johnson Evinrude 50HP 2001-2004
Package includes:
1x Voltage Regulator Rectifier
NOTICE:
Before installing your new voltage regulator rectifier;
Check the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors.
