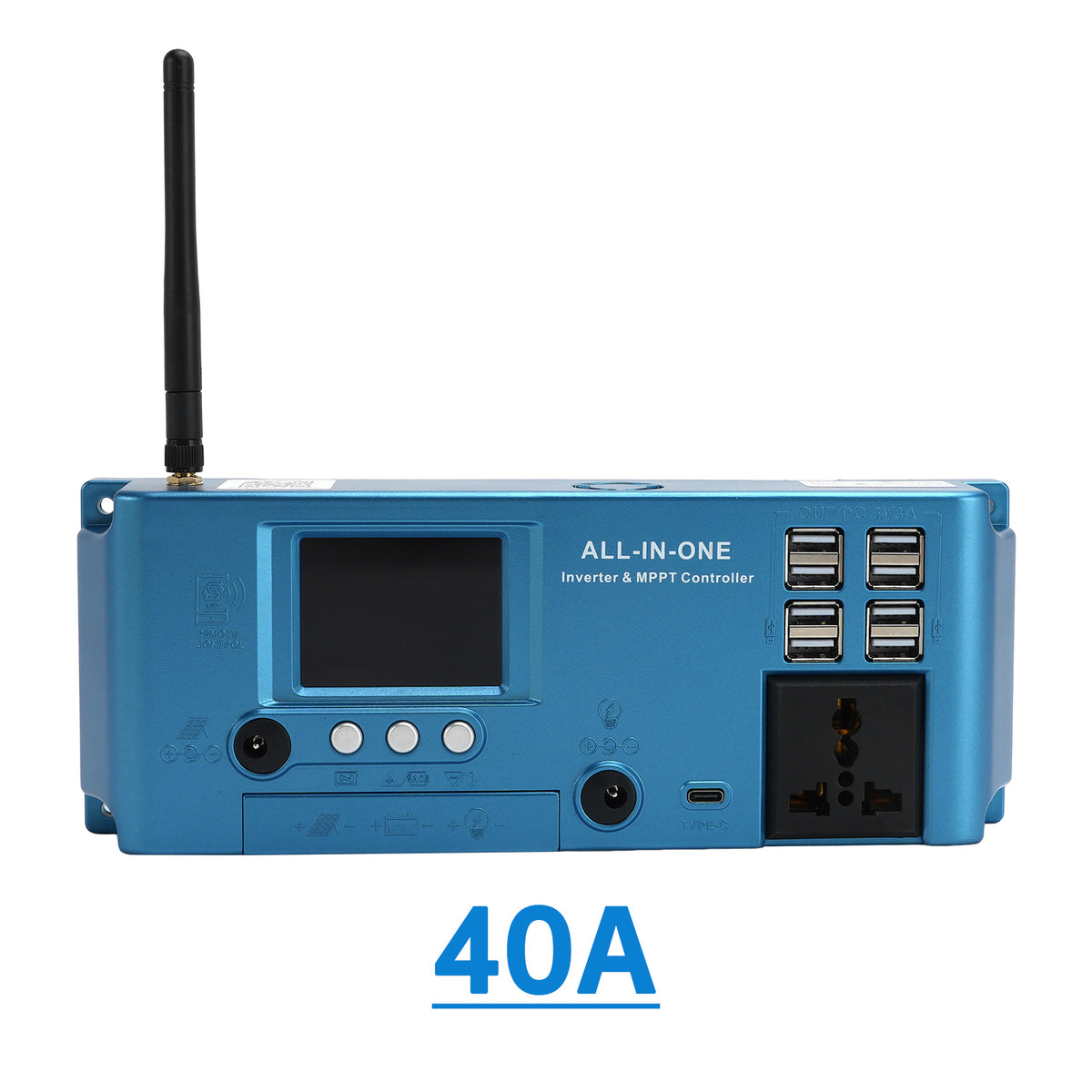

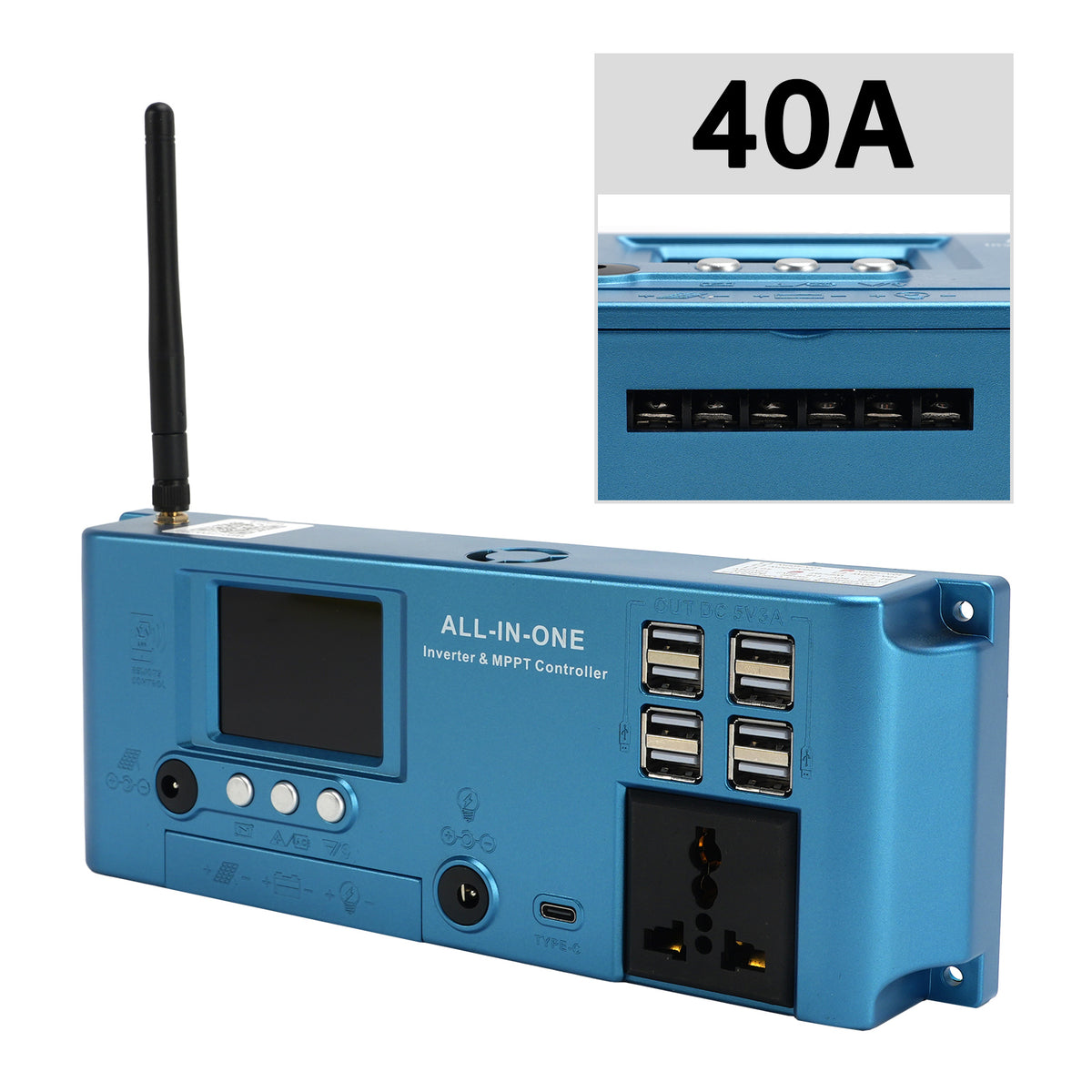

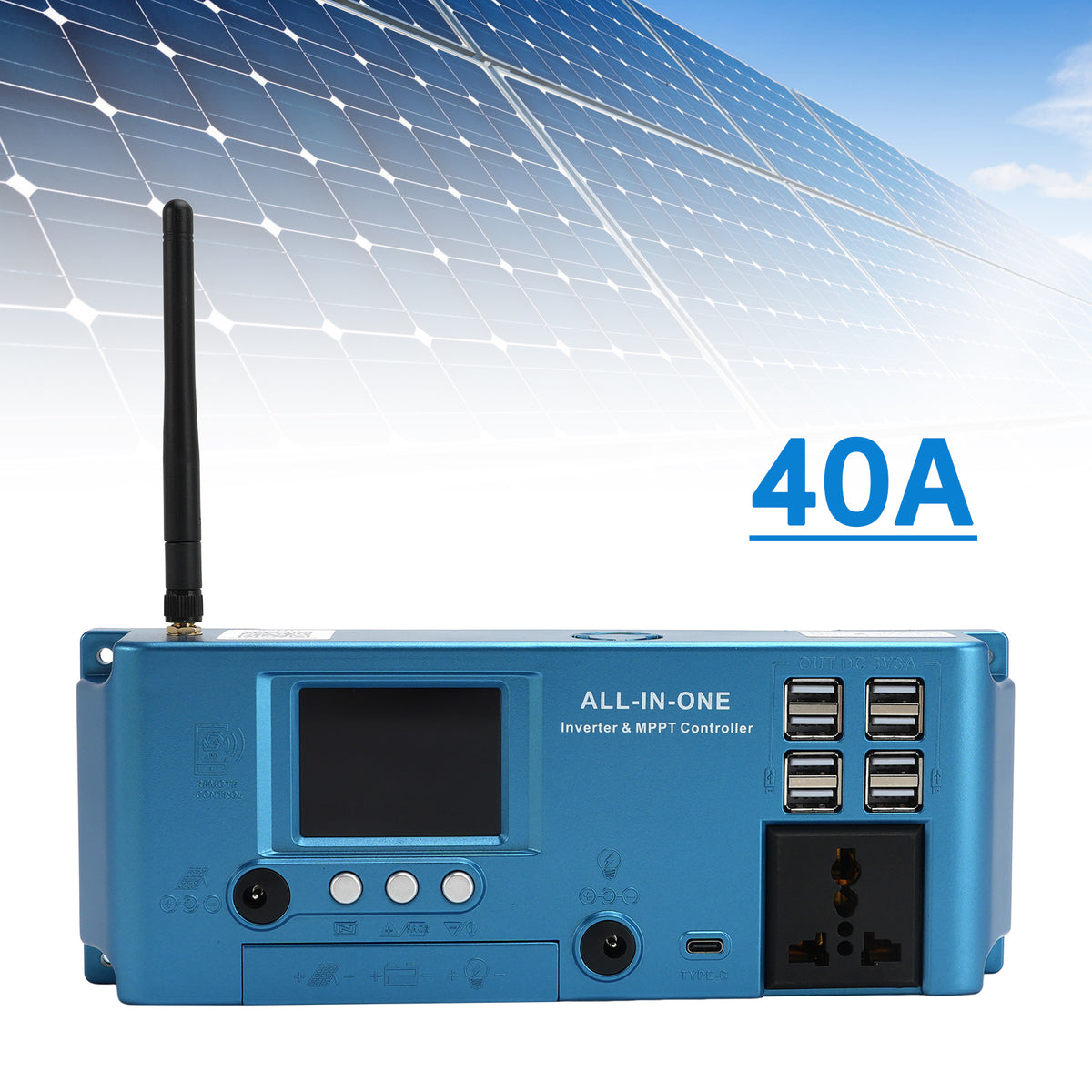

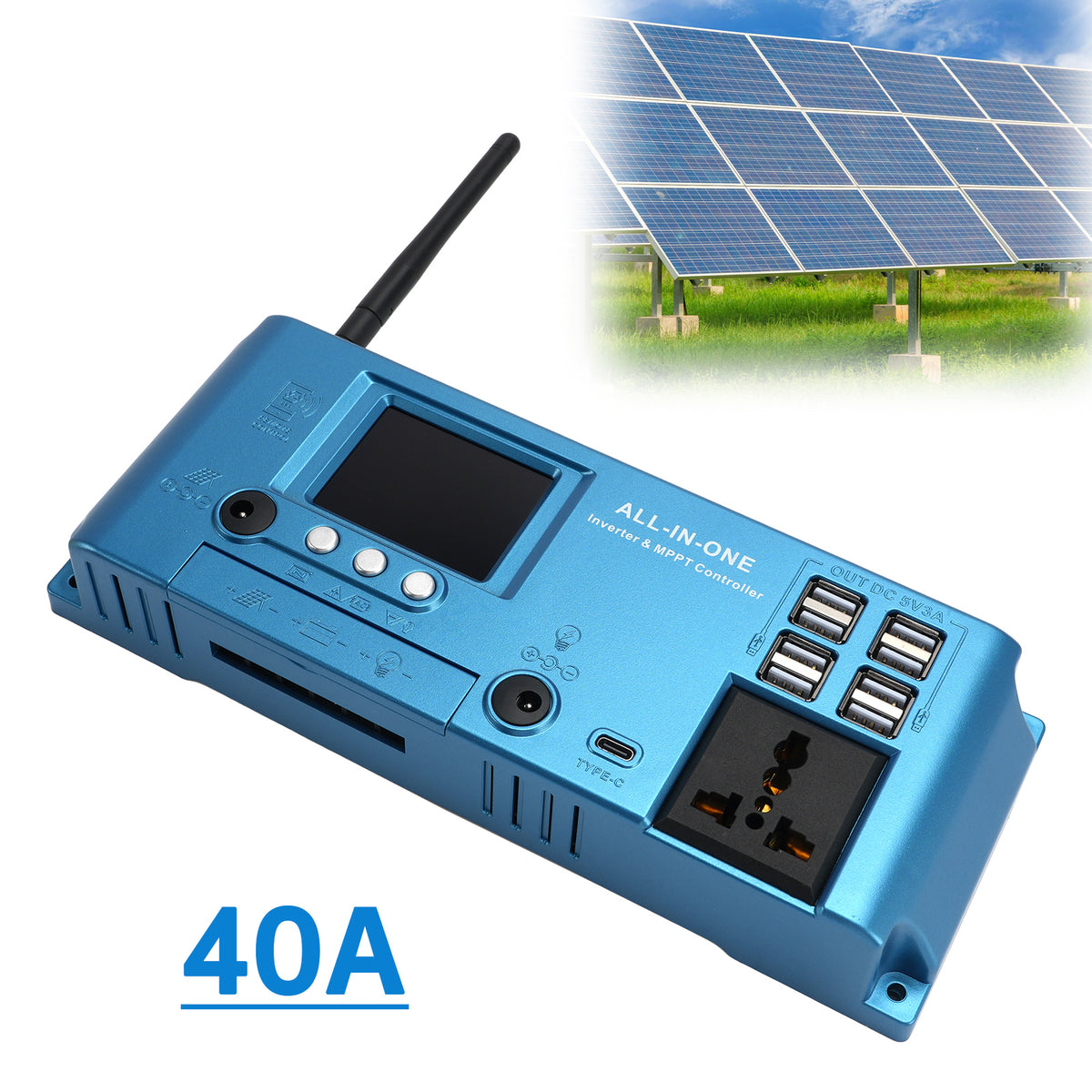

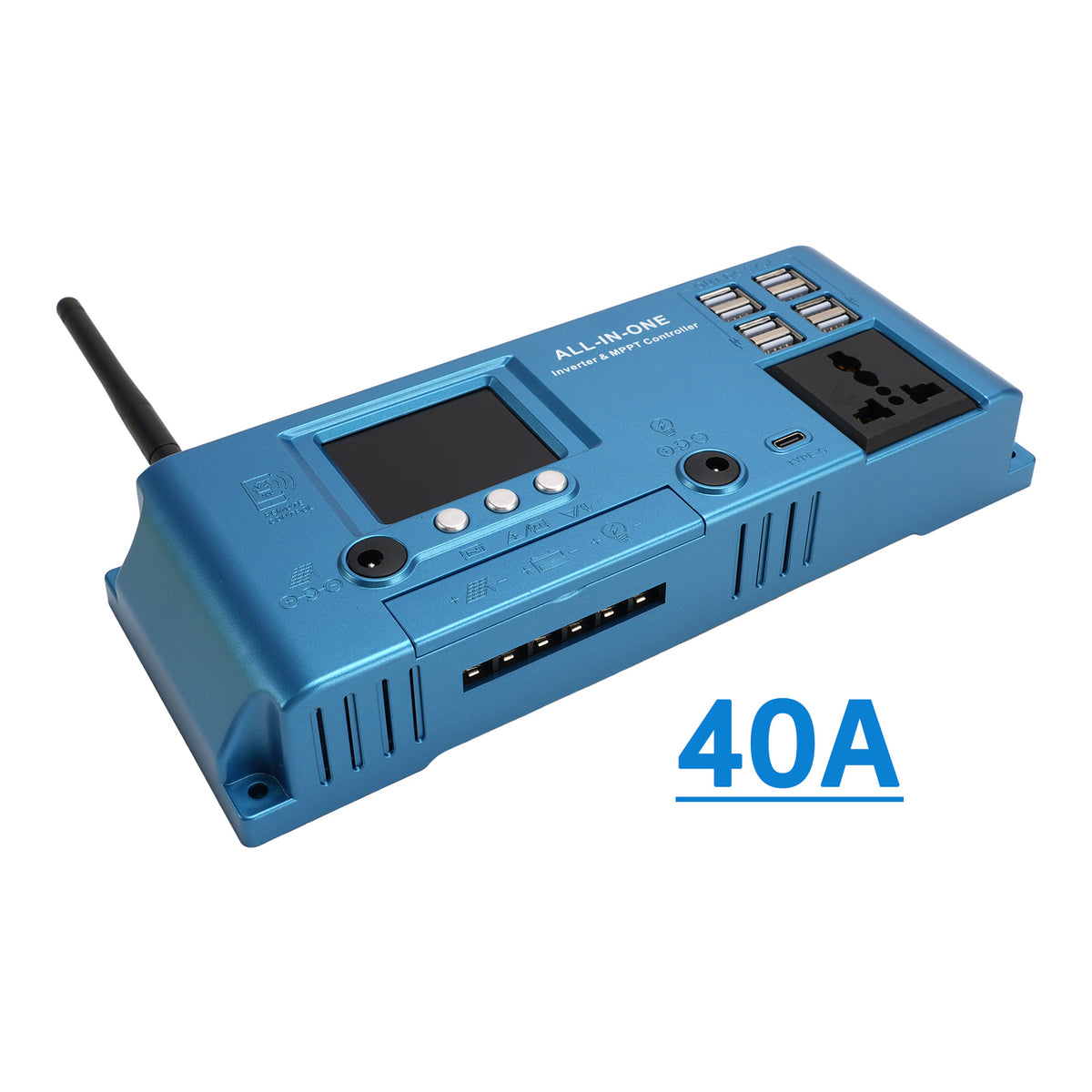

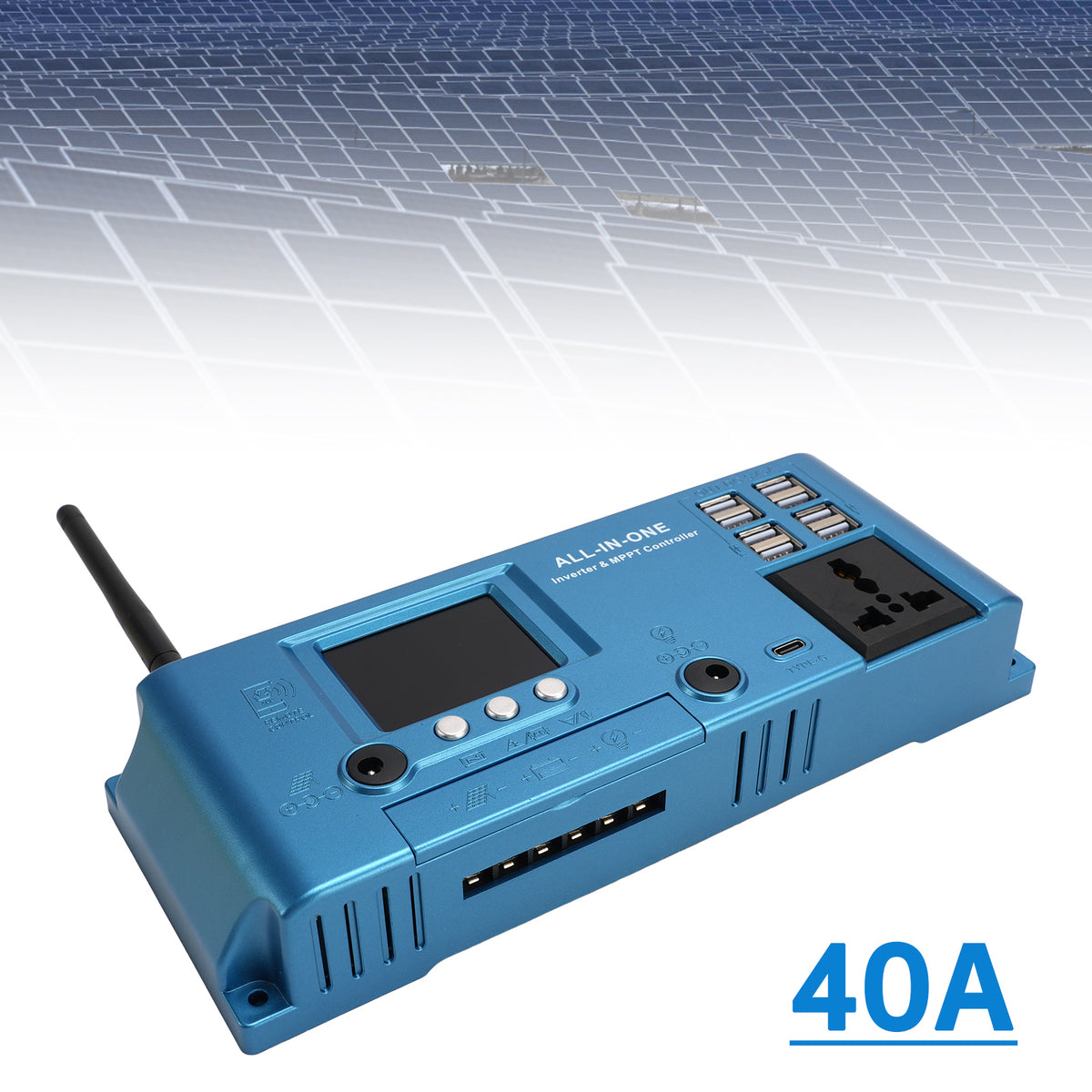

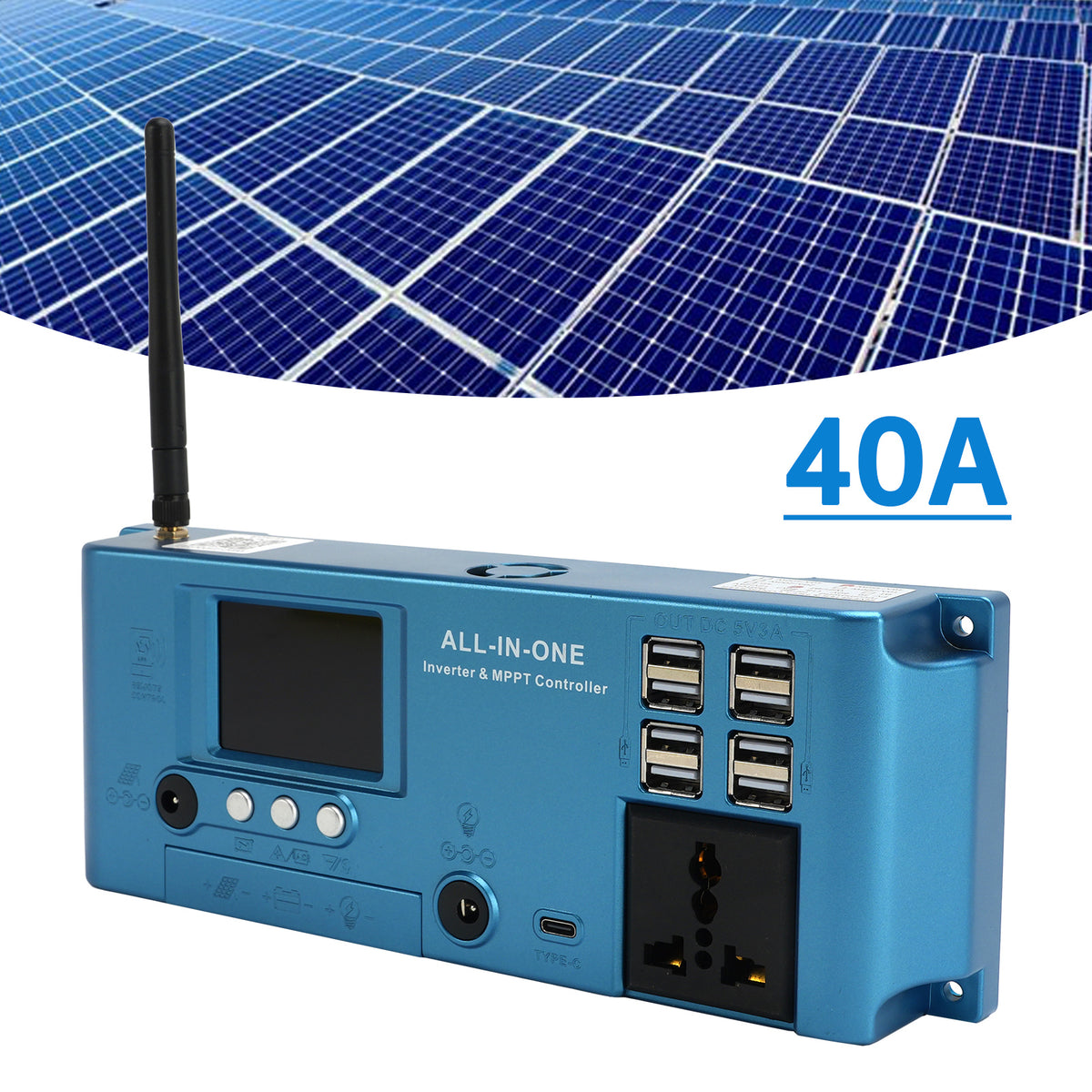

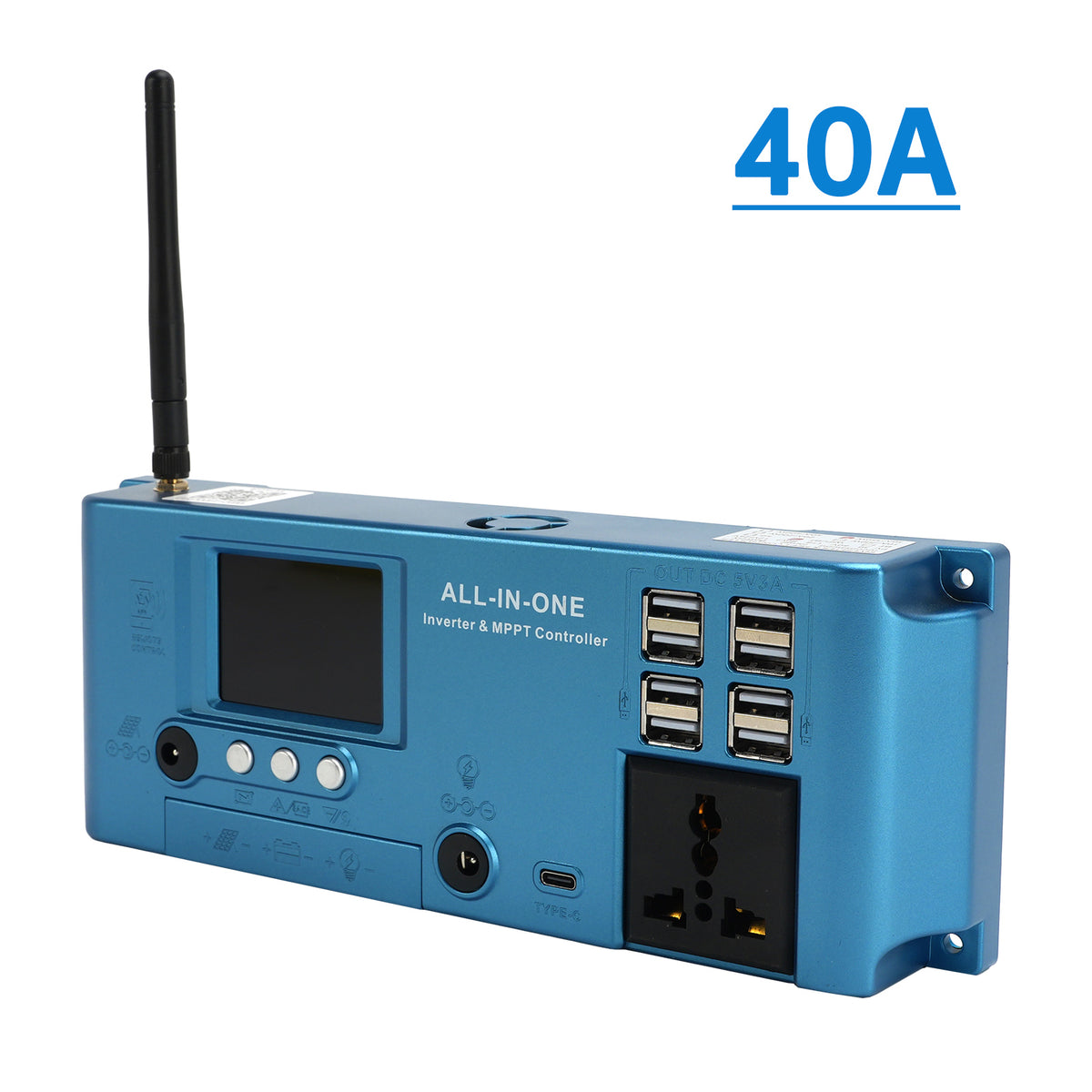

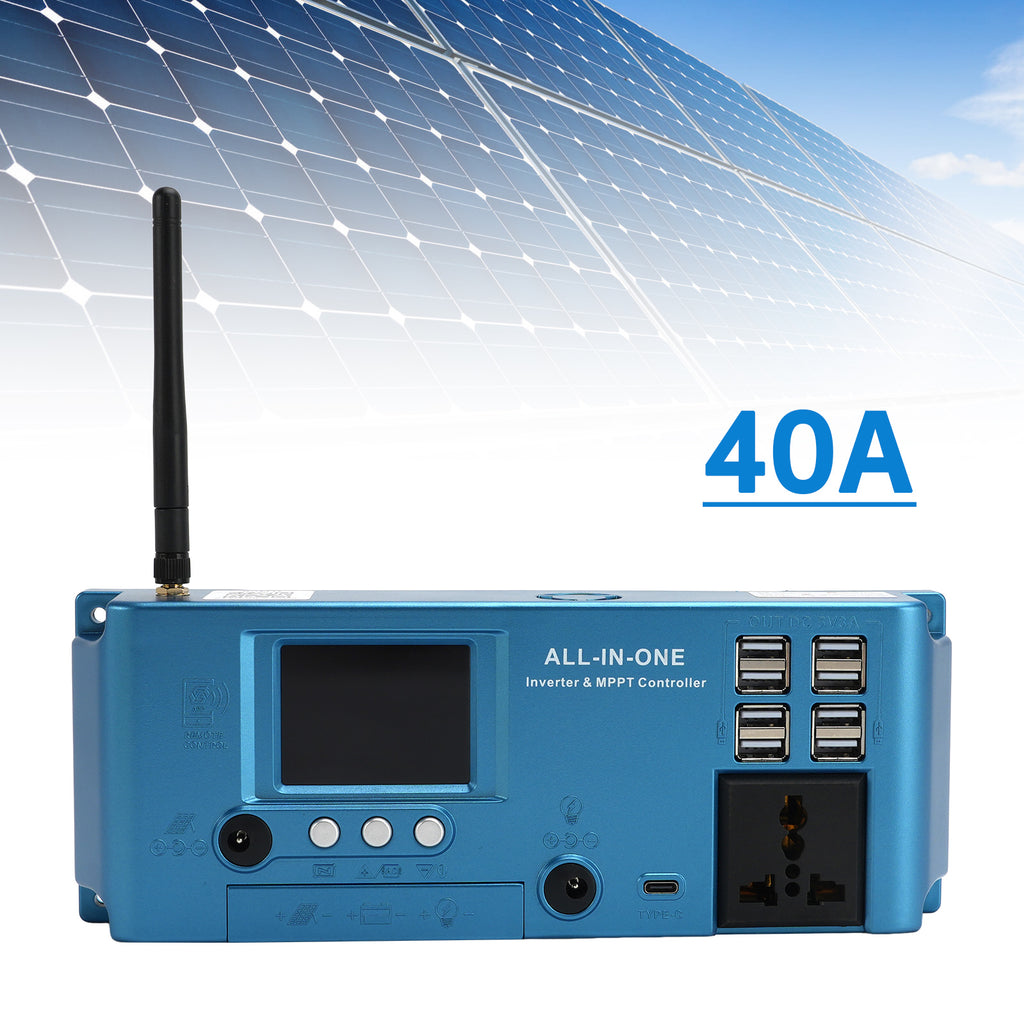

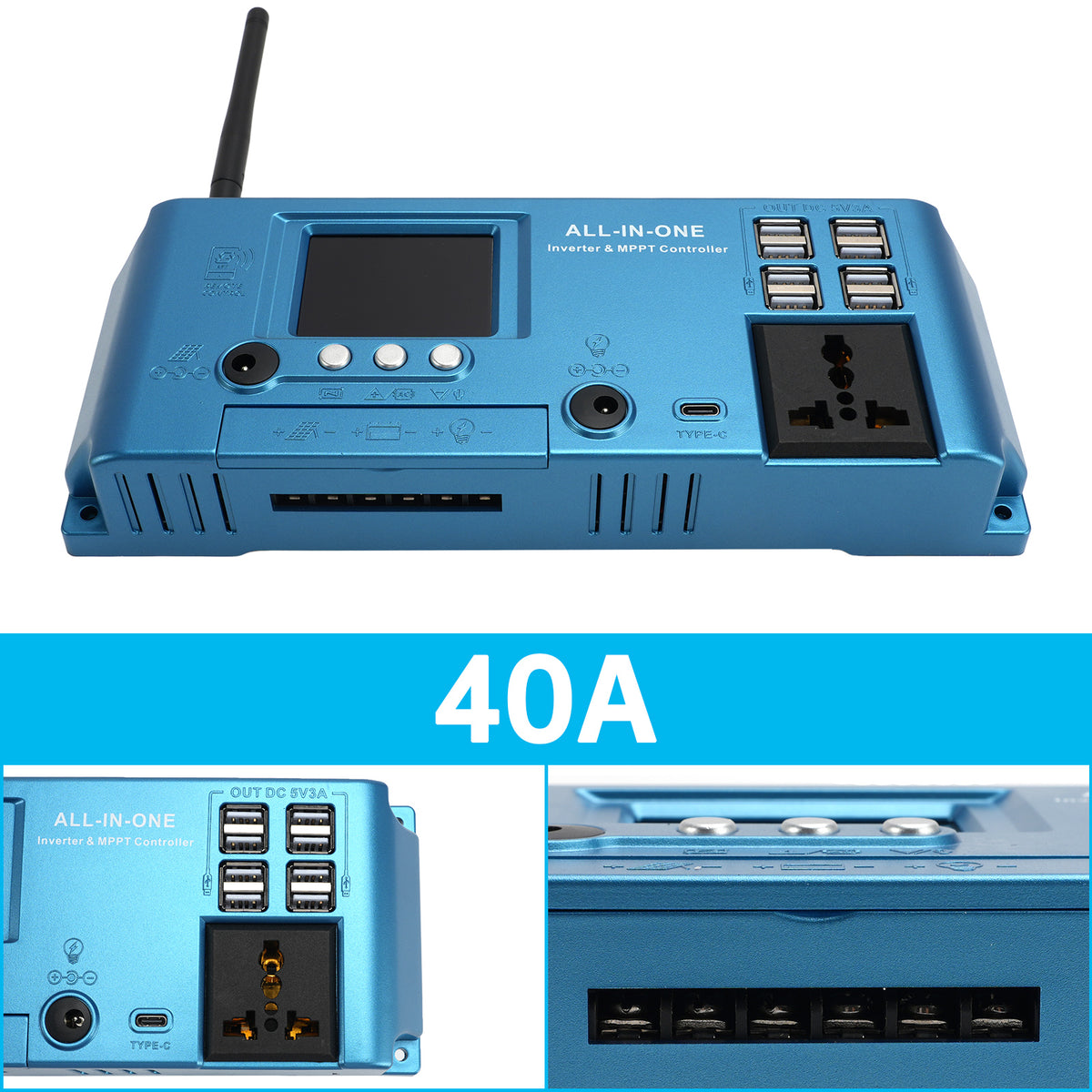

40A MPPT Off Grid Inverter Charger Combo MPPT Controller 12V/24V Featuring Simultaneous Charging Inverting Smart APP Control 0V Battery Recovery
Descriptions:
The ZJ200 series off-grid inverter-controller integrated unit adopts advanced maximum power point tracking (MPPT)technology tocharge the 12/24v battery through the solar panel, and then the battery converts the power to AC220/110 for global appliances. Itscharging conversion efficiency is as high as 98%, and the inverter and DC output are suitable for various electrical equipment.
Features:
1. Mobile APP control management, Bluetooth short-range control, WIFI global management.
2. ZJ200 off grid integrated inverter controller, with 100% MPPT technology formaximum powertracking charging and efficientinverter output.
3. Maximum input voltage of 80V, charges 12V/24V batteries, and automatically detects the charging voltage.
4. Unique battery repair function. When the battery is completely dead at oV, it must be connected propertly with the photovoltaic panel and lock in the voltage of the battery to be charged before use. Primary aging repair.
5. It automatically optimizes charging performance through staged charging and is controlled by an interal high-performance DSP.
6. Solar voltage under-voltage protection, battery low-voltage cutoff protection, battery undervoltage or overoltage protection duringinverter operation, inverter output overload protection, overheating protection, high-temperature current- limiting protection,solareverseconnection protection. When the faultis eliminated, the controller automatically recovers without damaging the equipment.
7. Suitable for various battery types such as sealed lead-acid batteries, open-cell gelbatteries, lithium iron phosphate and lithium bateries.
8. Full-function parameter setting for buttons, with high-definition color display in both Chinese and English. Real-time parametersuchasvoltage.current, temperature, cumulative charging capacity, and cumulative power consumption are displayed simultaneously on the scren.
9. The appearance is simple and fashionable, specially designed for off grid reverse controlintegrated machines. tis easy to installand
widely applicable.
Specifications:
Type: ZJ200 Off-Grid Inverter MPPT Controller
Color: Blue
Rated charging current: 40A
Rated discharging current: 15A
System Voltage: 12V/24V
AC output power amplifier: 400W
Battery/PV Voltage: For 12V batteries, PV input voltage is 18V–80V; for 24V batteries, PV input voltage is 30V–80V.
Self-Consume: <200mA
Operating Temperature: -10-+60℃
Siez/Weight : 250×90×45mm/560g
Package Included:
1x ZJ200 Off-Grid Inverter MPPT Controller
1 x User Manual
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
