24V 10000 BTU Cool RV Air Conditioner With Heat Pump Non-Ducted Rooftop AC Unit Heater/Cooling For Campers Trailers RV
Feature:
1:100% brand new and high quality, Durable
2:High cooling capacity & reliable performance suitable for most place in the world
3:Battery driven, save fuel consumption and save space with compact design
4:After strictly water pouring test, no water penetration
5:Environment friendly
6:Light and thin appearance, saving space
7: Double insulation,noise reduction,more comfortable.
8: This 24V air conditioner is powered by battery DC. If the car battery capacity is large enough, the air conditioner can be used for more than 8 hours
9: All-Weather Comfort: Whether you’re battling the heat or trying to stay warm in the winter.
10: Widely used in the ventilation and air conditioning systems for the cabs in trucks, tractors, motorhomes, touring car and construction machinery. The DC Air Conditioner Kit is very easily connects to challenge confined space and extreme hot ambient!
11:Easy Installation: Installing this air conditioner is a hassle-free due to non-ducted configuration makes it compatible with various RV models.Please note that this is not compatible with RVs with ductwork. This is a ductless AC unit only
Specifics:
Condition: 100% Brand New
Material: Metal+Plastic
Color: White
Manufacturer Part Number: does not apply
Interchange Part Number:does not apply
Other Part Number: does not apply
Type: Air Conditioner
Function:The main functions cover refriegeration,heating,ventilation and air purificcation,etc. Both Cool and Heat
DC Voltage: 24V
Cooling capacity: 2600W
Heating capacity: 1000W
Effective heating/cooling range:no more than 8 m³
Air volume(m³/h）: 250-450
Refrigerant charged: R134A/650g (**Inclued Refrigerant)
speed range（r/min）:1600-3800

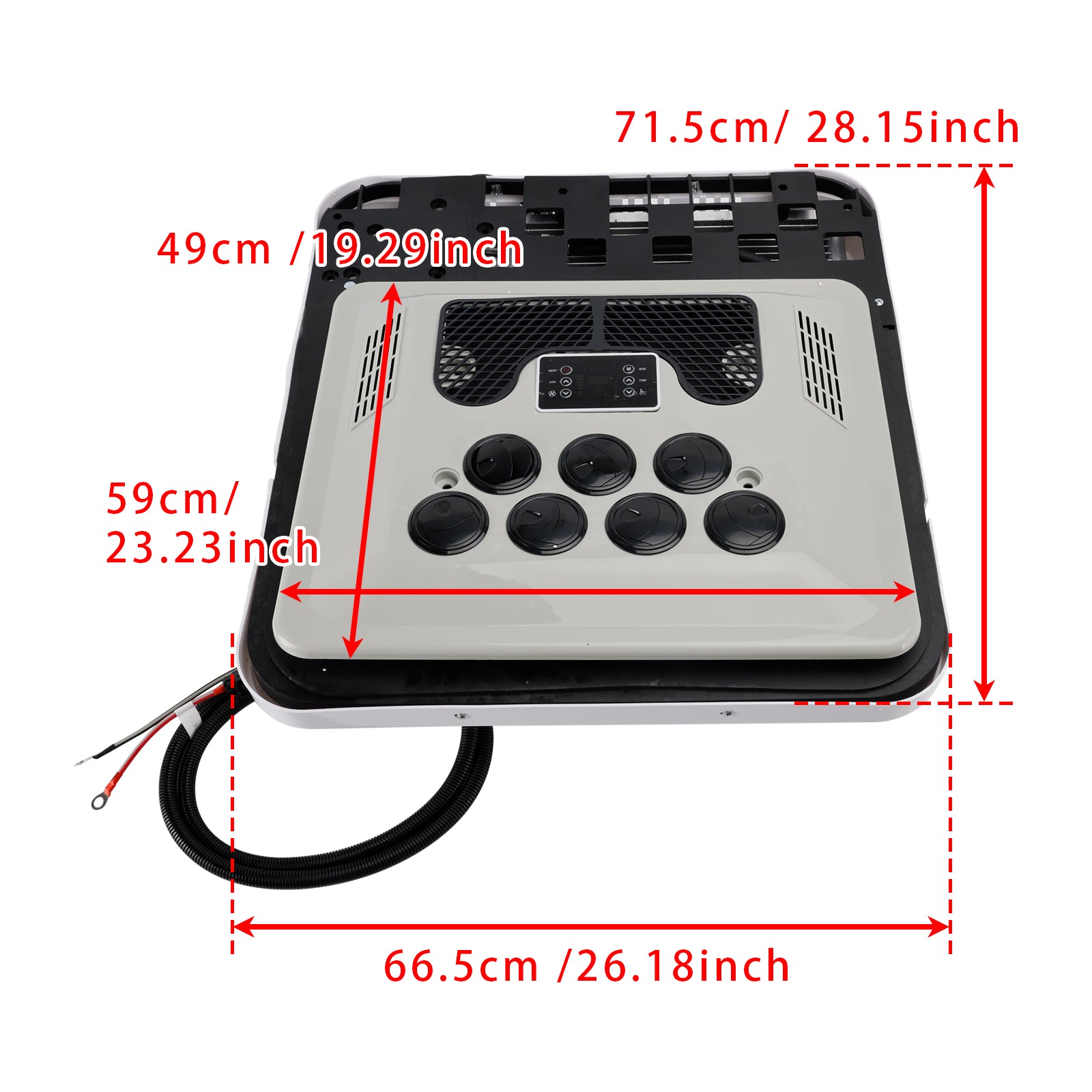

External machine size: 666mm*720mm*160mm
Inner size: 288mm*150.5*160mm
Power cord: 3m
Temperature Setting: Maximum 30 Degrees, Minimum 16 Degrees.
Fitment Type: Direct Replacement
Roof opening size:
Length: 320mm-340mm
Width: 260mm-280mm
Roof thickness: not exceeding 110mm thickness

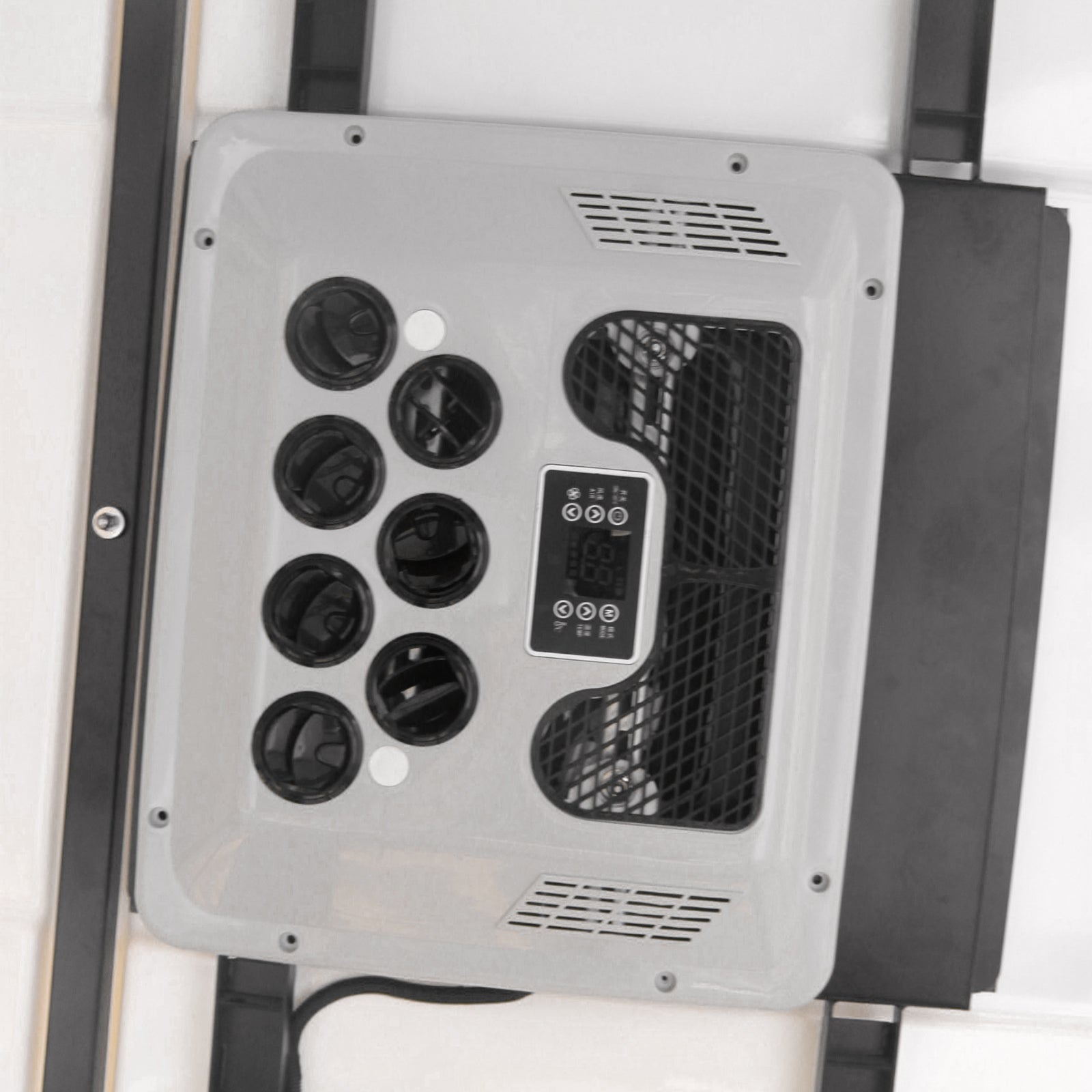

Interior panel installation dimensions
Internal machine hole: 340mm * 140mm
Installation hole: 287mm * 150mm
Overall: 589 * 492mm * 2.5mm
Fitment:
For most vehicles in the market. It includes 1) rooftop mounted air conditioner for van, truck, commercial vehicles, special vehicle, trailer, earth-moving machine, motorhome, RV (recreational vehicle), and 2) back-wall mounted air conditioner for truck, tractor, trailer, heavy duty truck, light truck, truck cab, truck sleeper, sleeper cab.

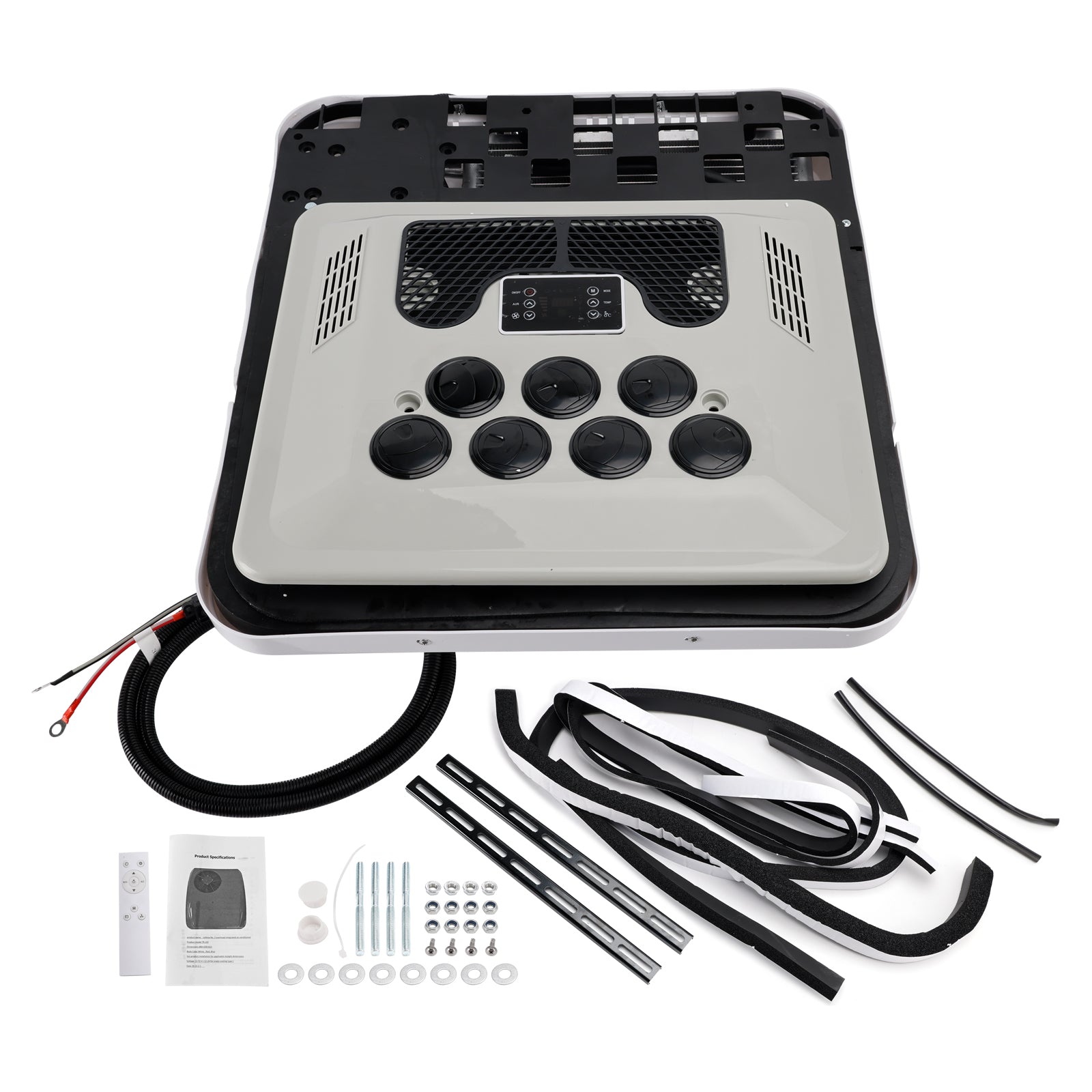

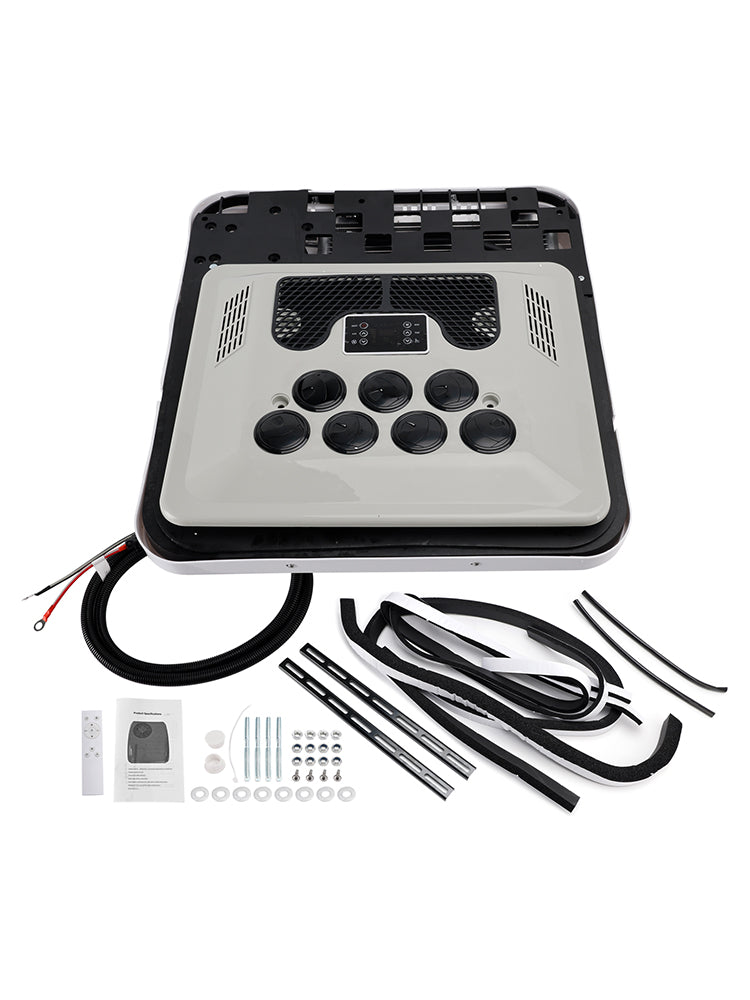

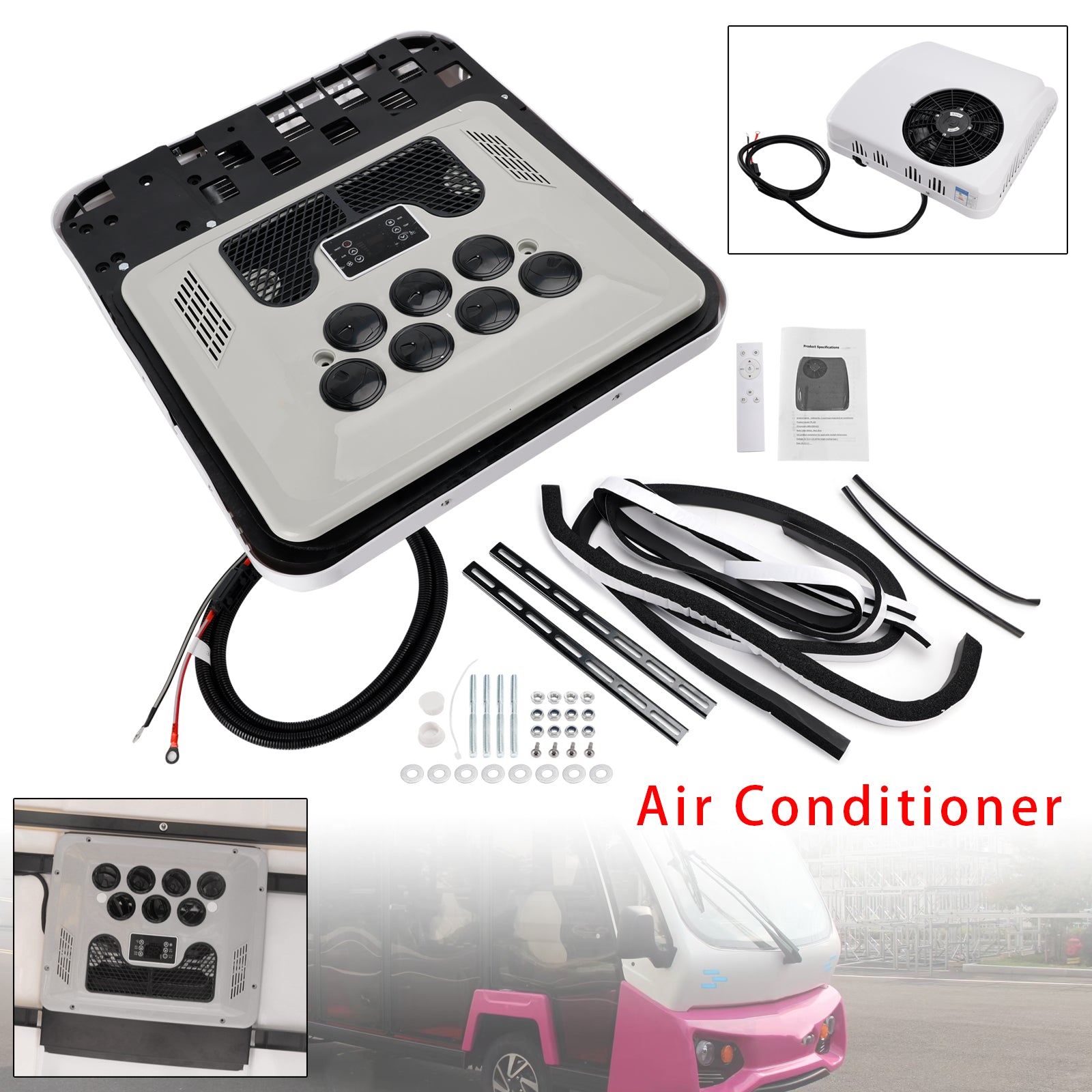

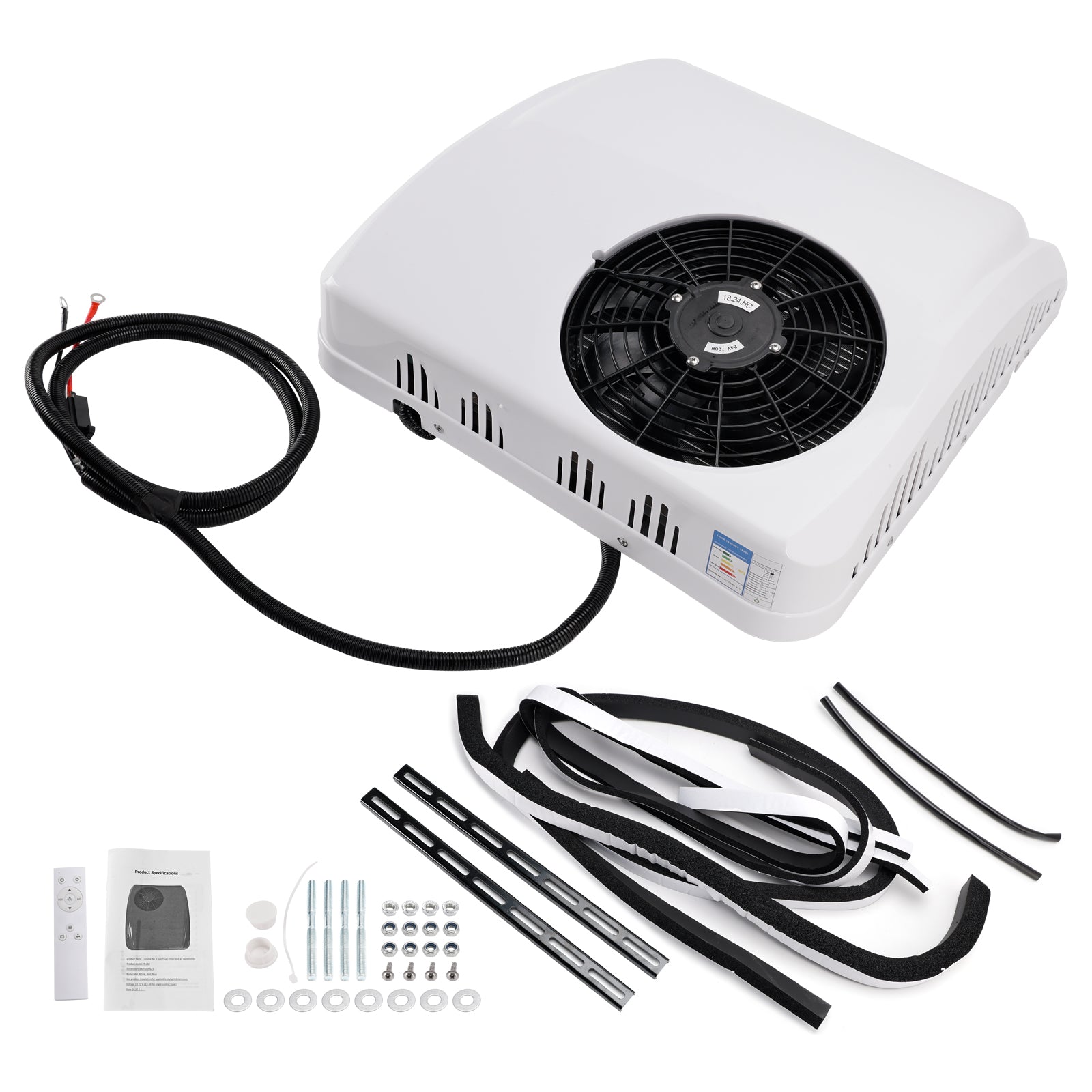

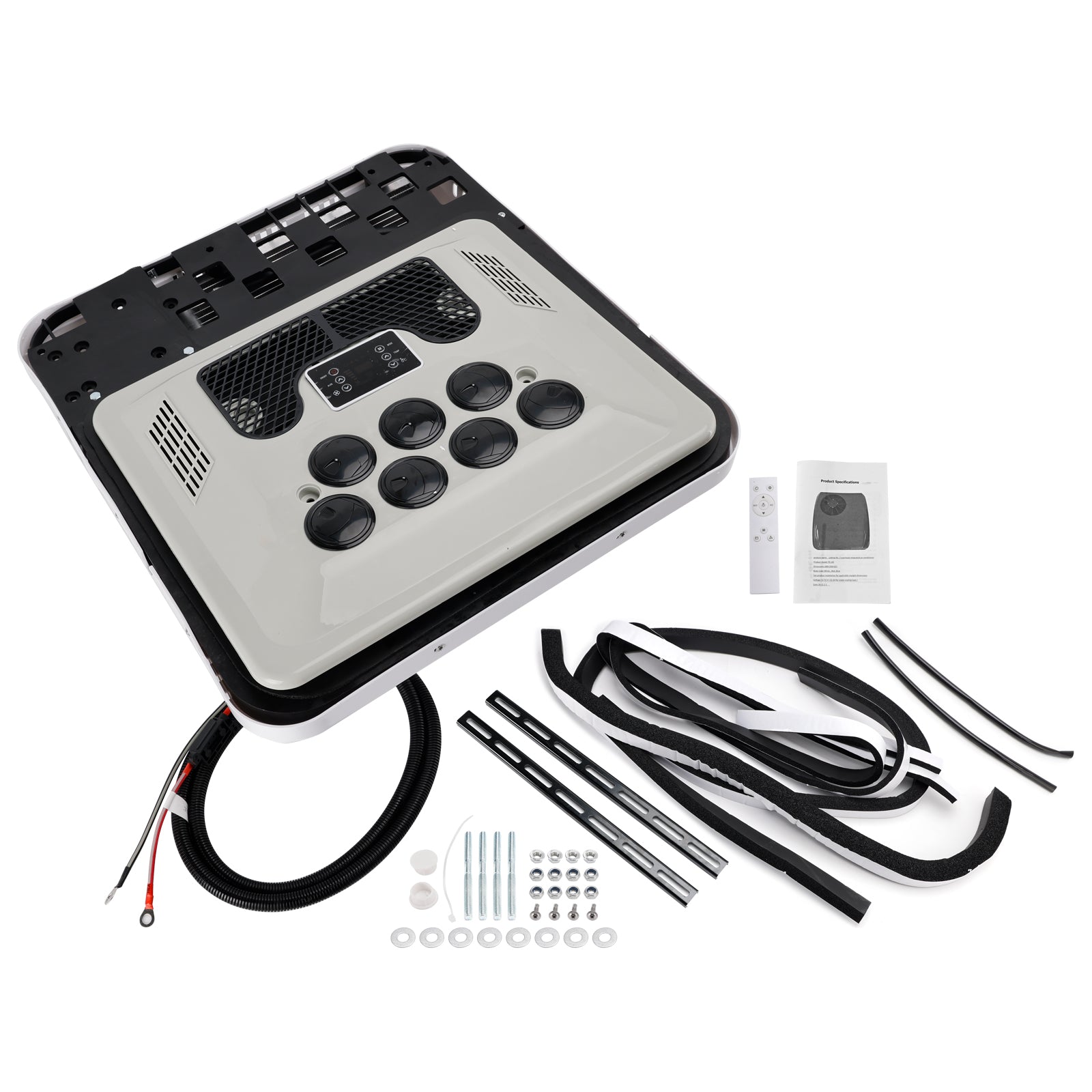

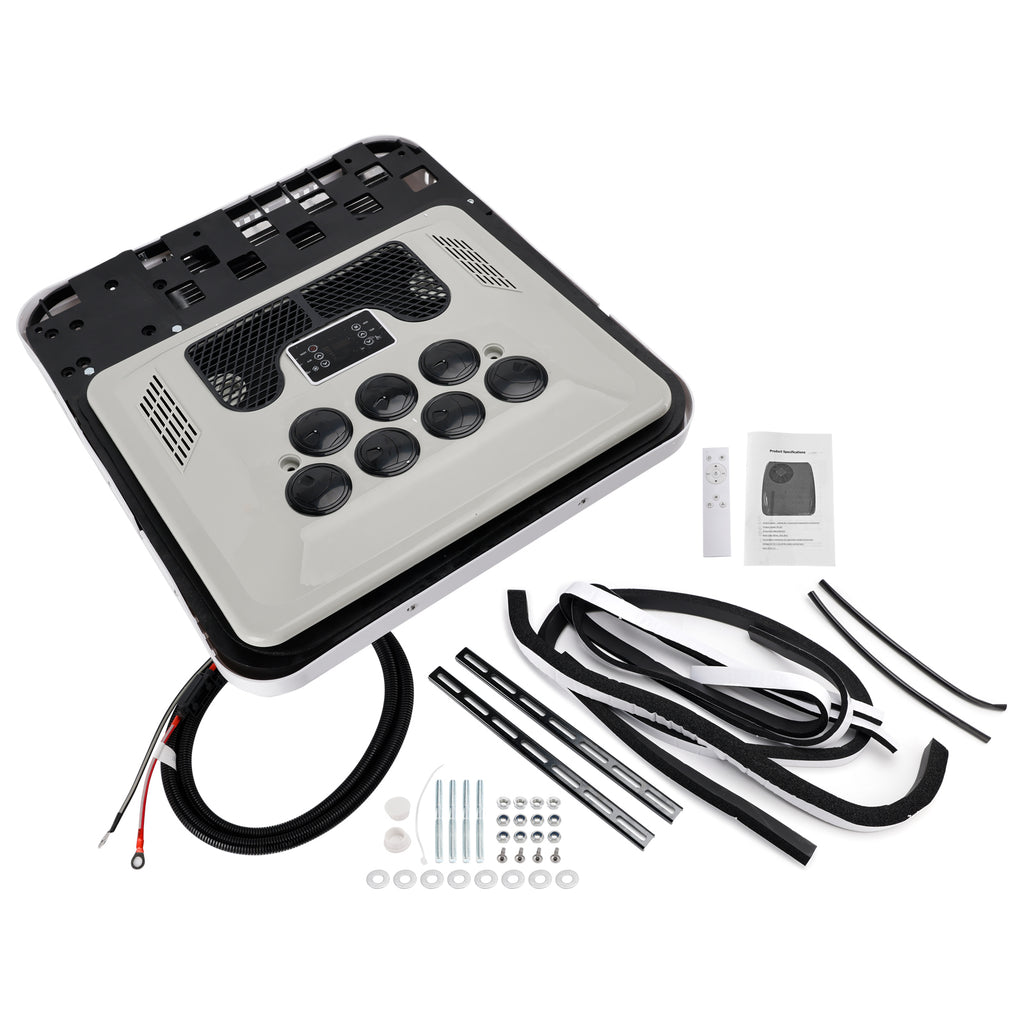

Package Include:

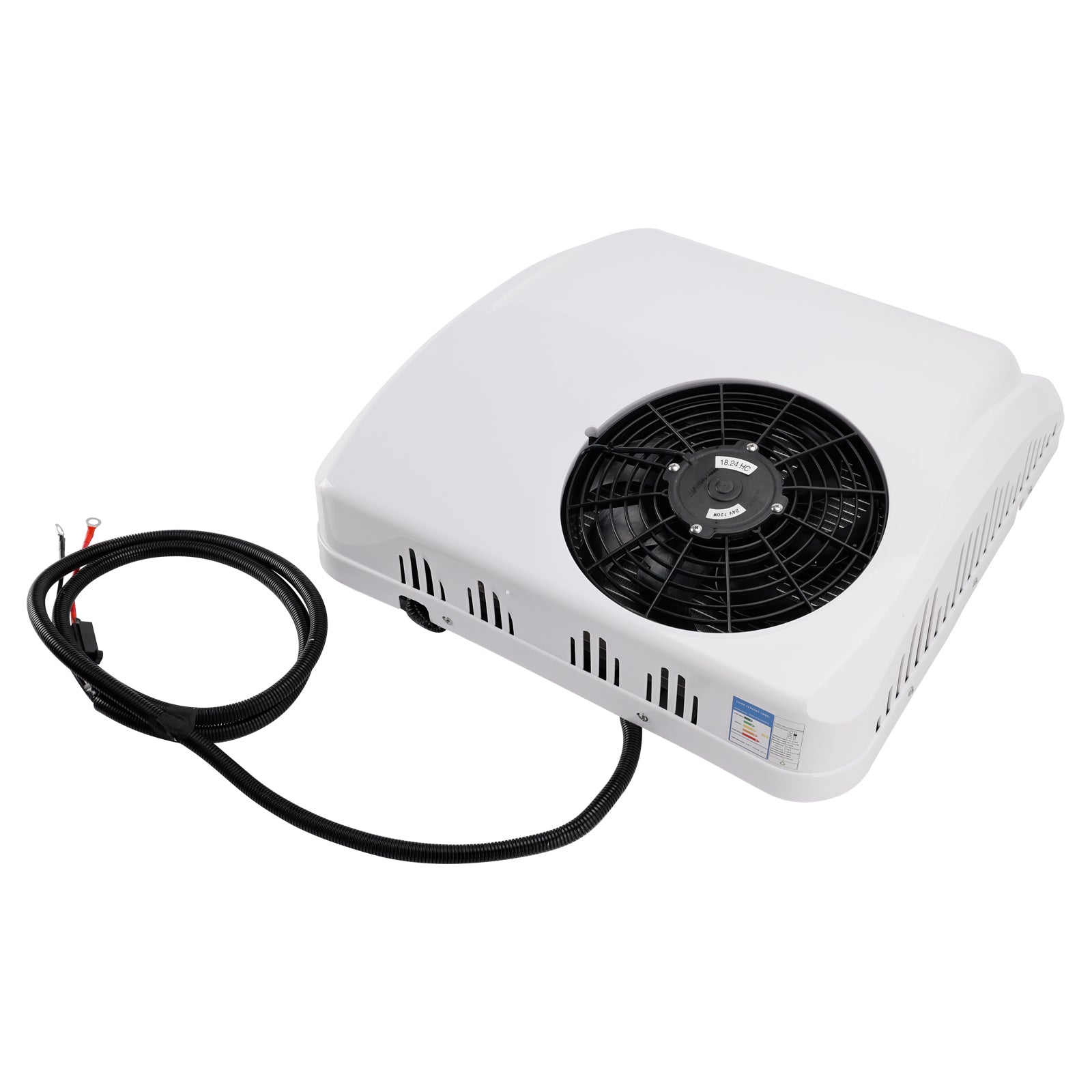

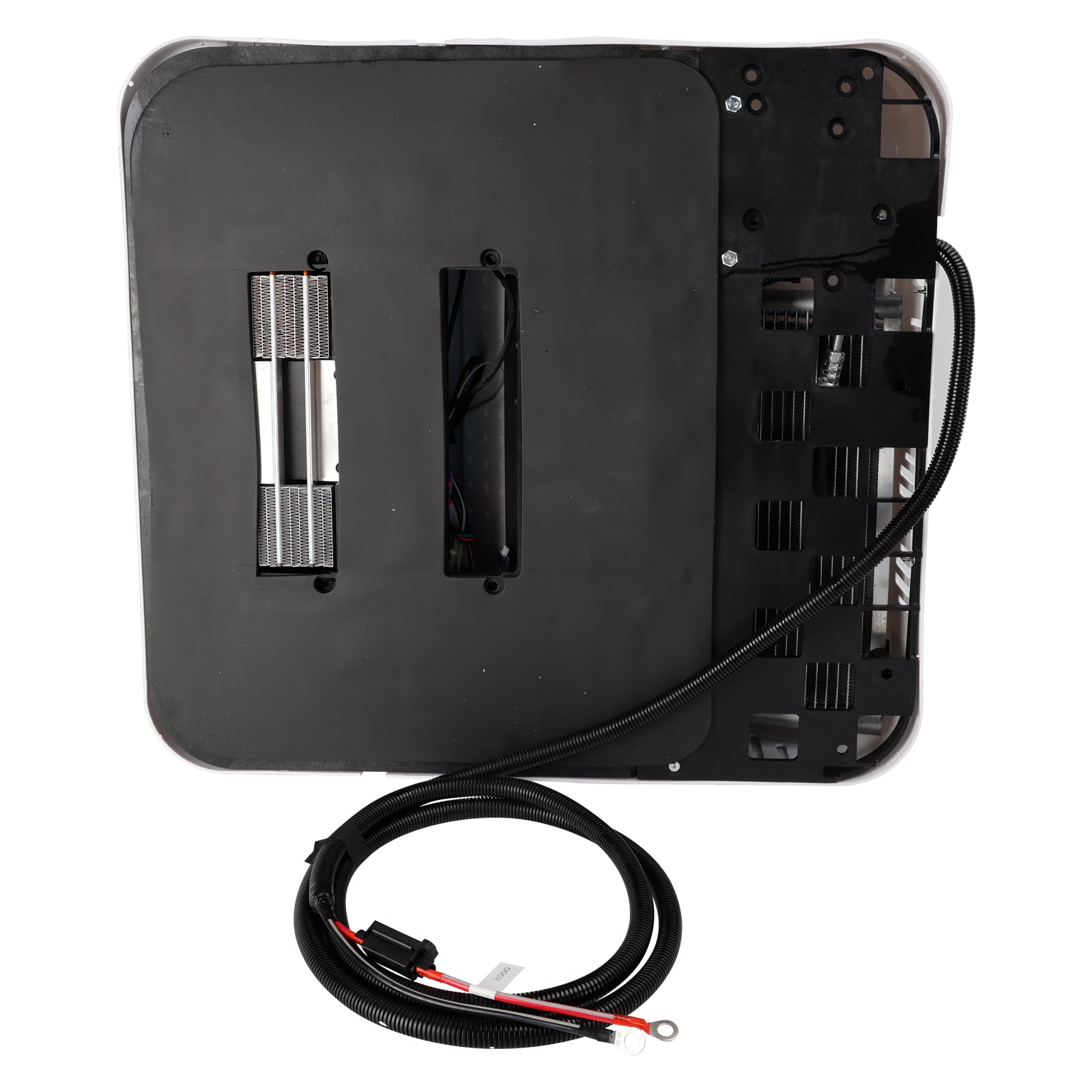

1.One external machine

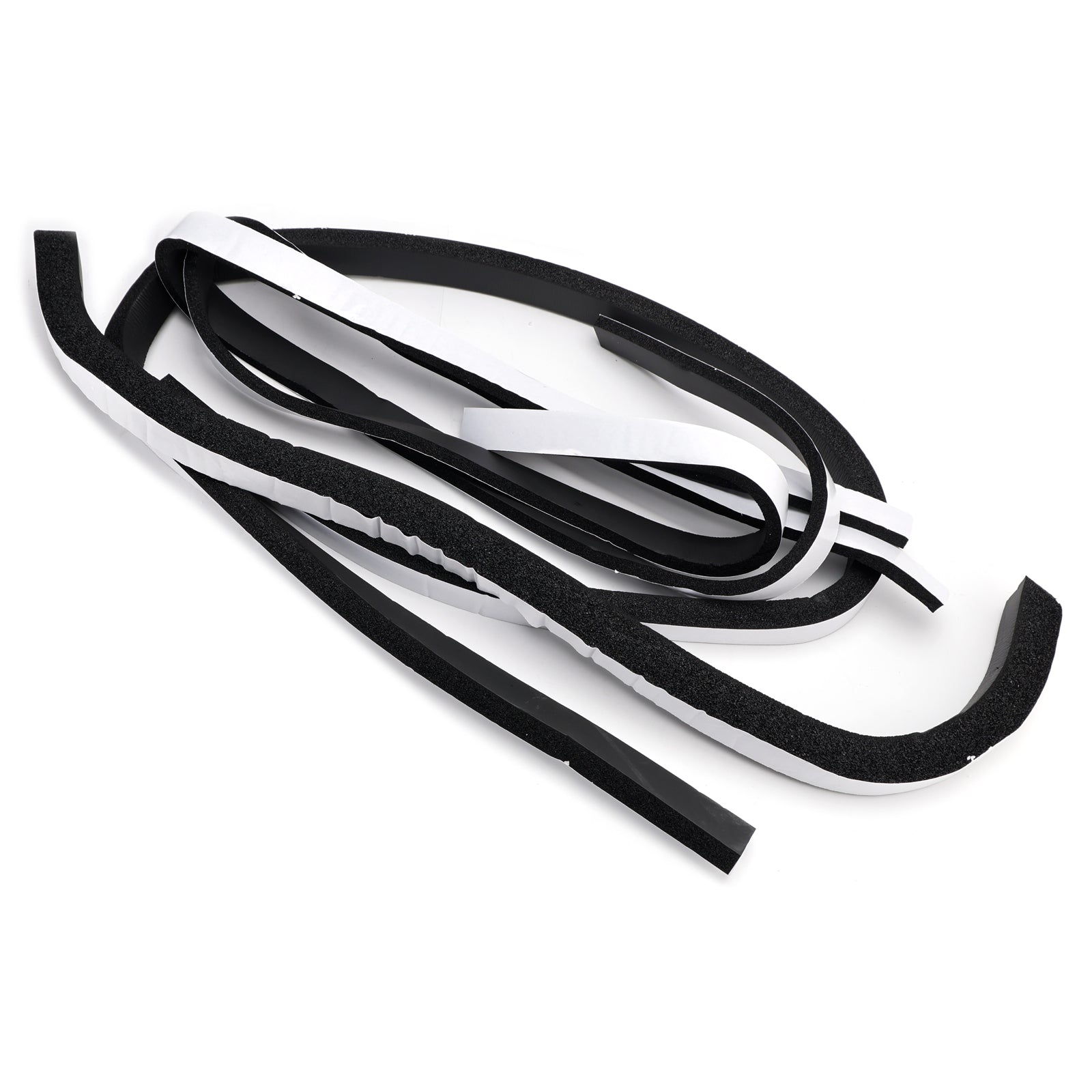

2.A set of sponge strips

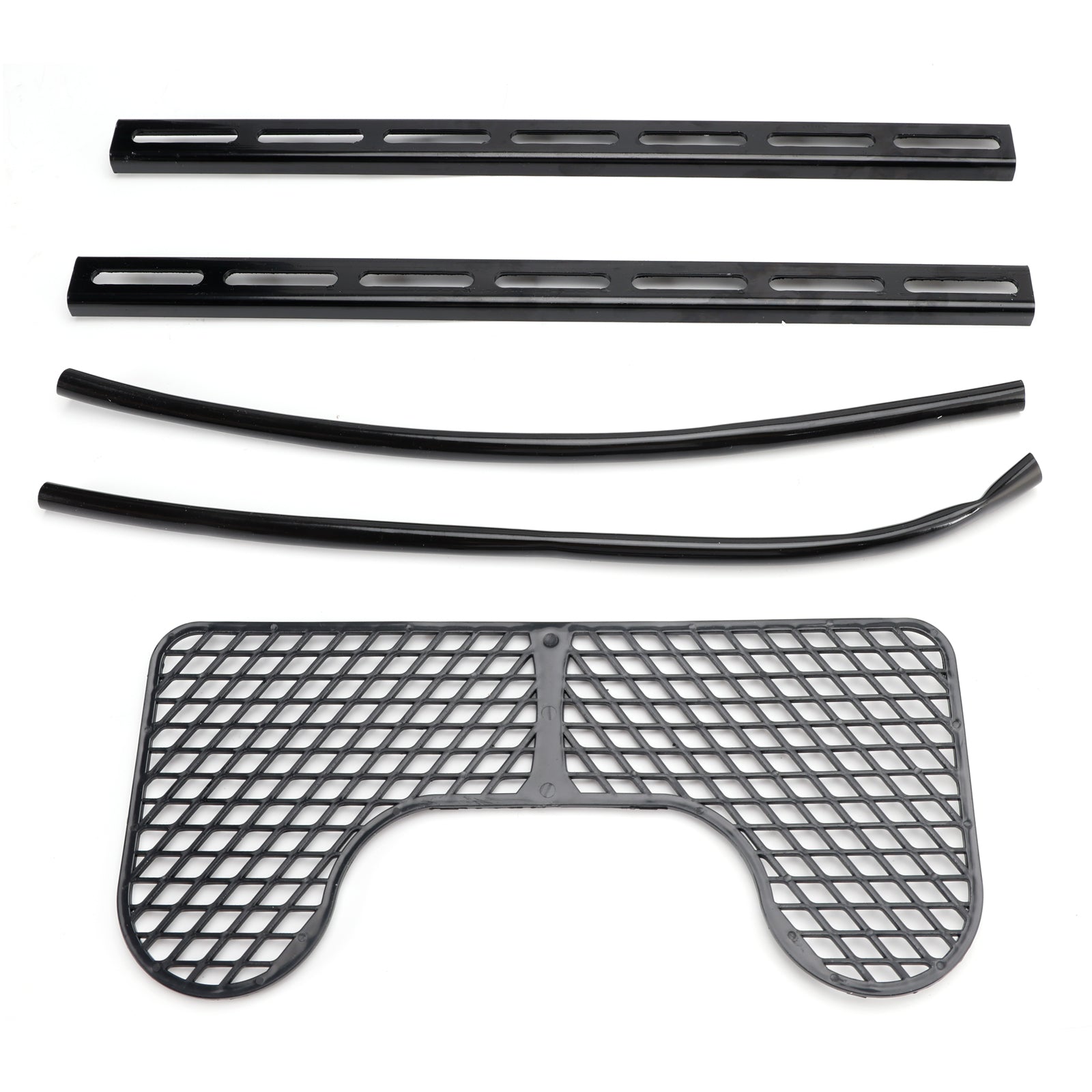

3.2 *fixed stretch bars

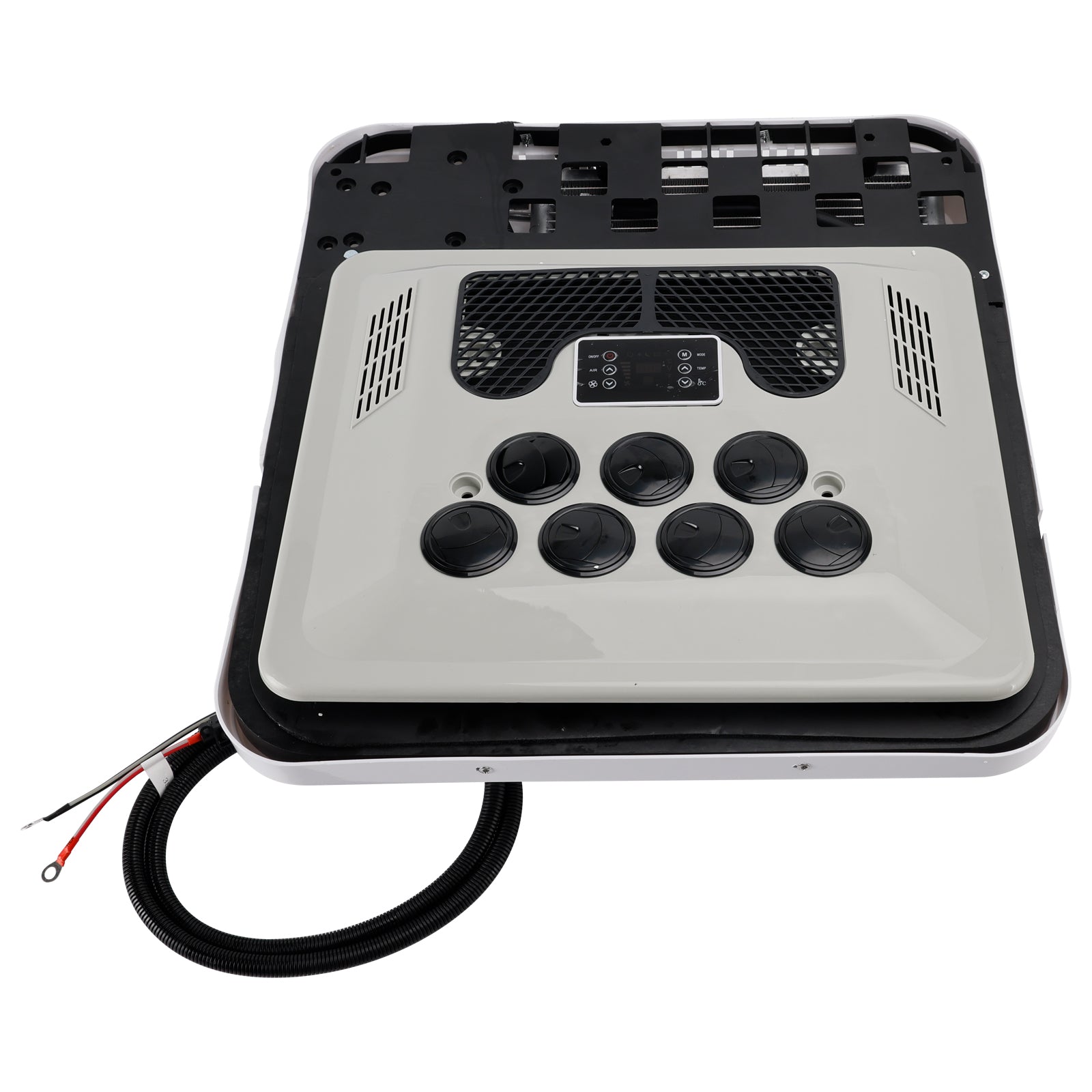

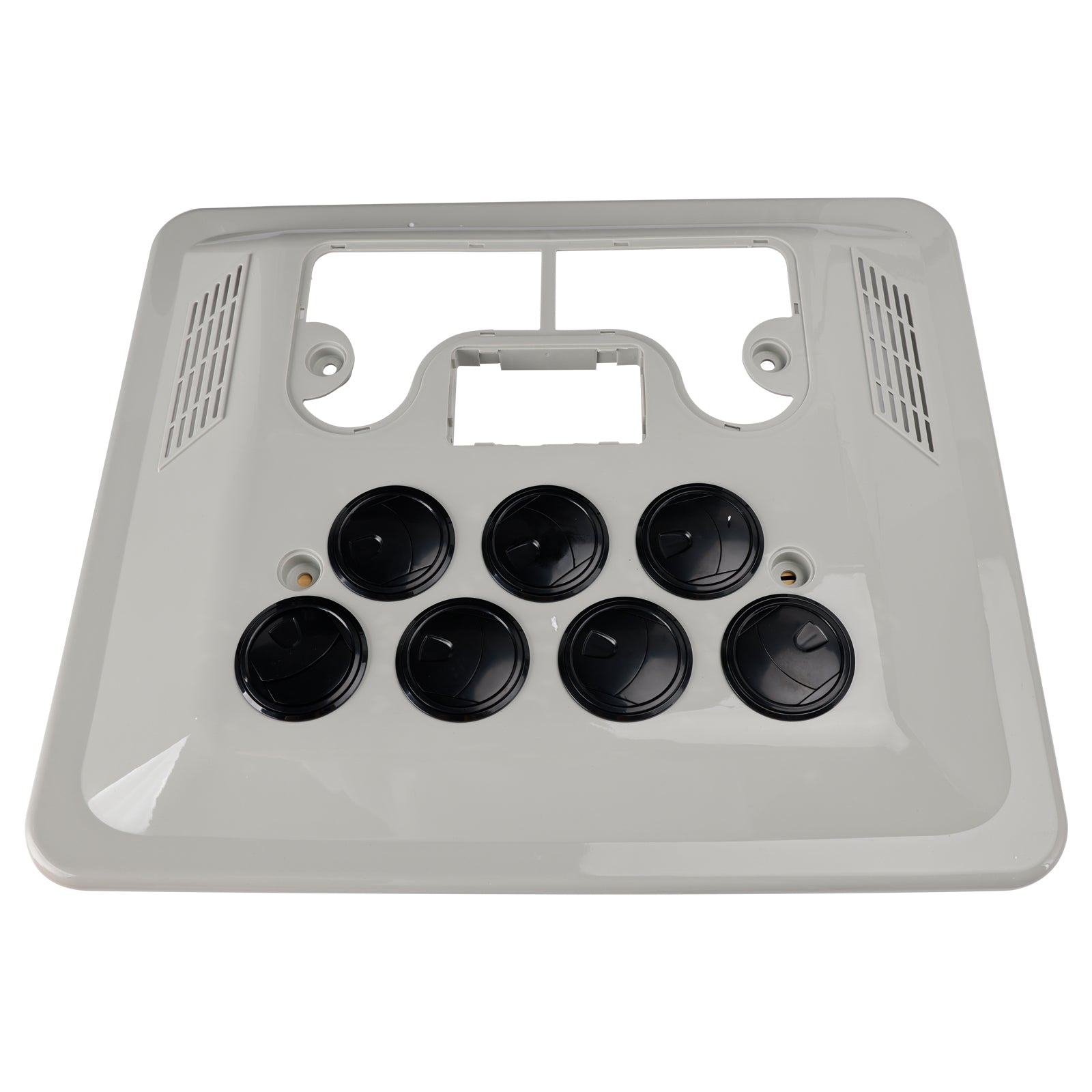

4.A set of interior panels

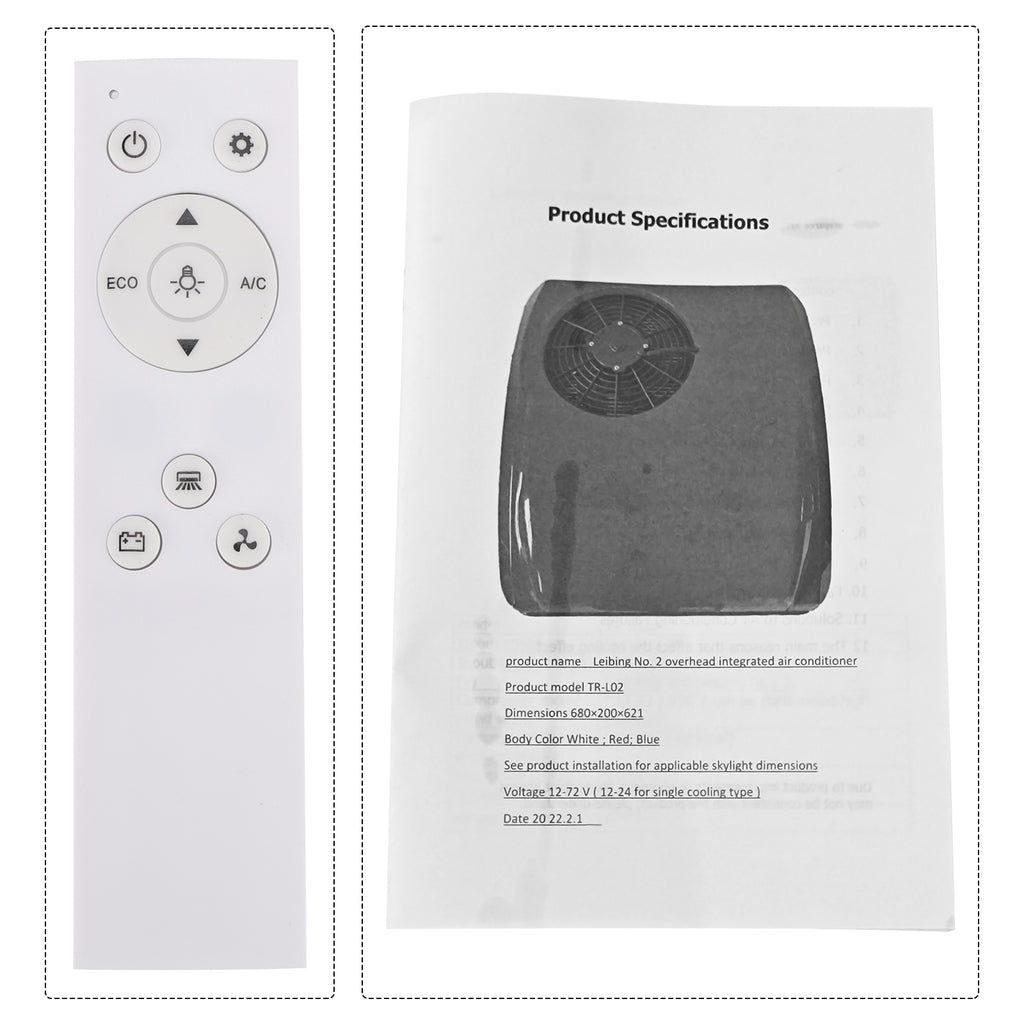

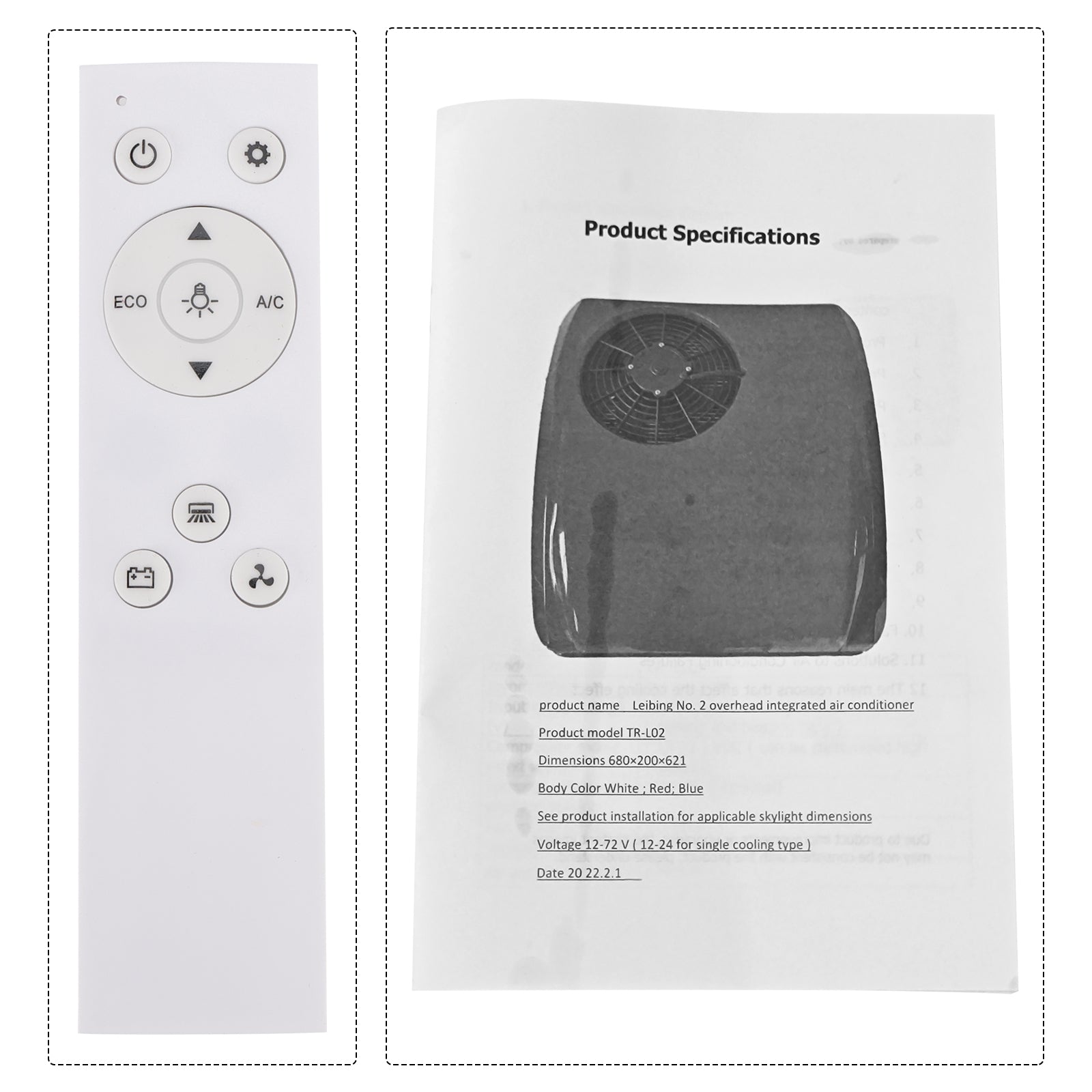

5.Remote control

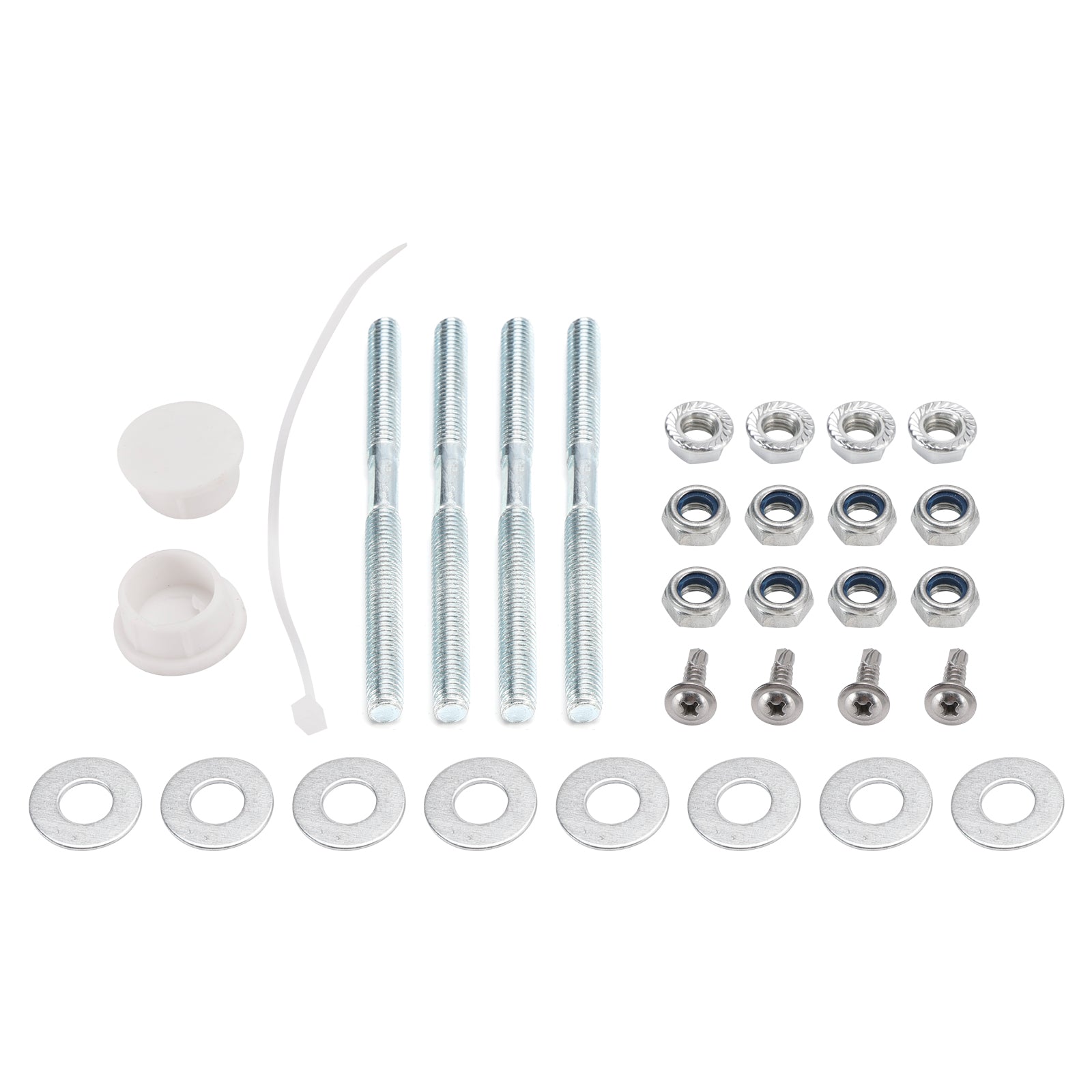

6.Universal screw pack 1 pack
7.Water pipe
8.Installation drawings
9.copy of the instruction manual of the air conditioner
[* Instruction is Included!]
Note:
1.Please check the description or use the year/make/model check finder and replace part numbers to confirm the compatibility before purchasing.
2.Professional installation is recommended.
Warranty:
Returns: Customers have the right to apply for a return within 60 days after the receipt of the product
24-Hour Expert Online: Solve your installation and product problems
